Specifications
Brand Name :
Ho-link/OEM
Model Number :
HL-1V-20T/R/HD-SDI
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1 Pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pairs/month
Delivery Time :
3 working days after received your payment
Packaging Details :
Neutral /Standard/Customized packing
Product Name :
HD-SDI video to fiber converter
Support Definition :
1080P@30Hz
Warranty :
3 Years
Wavelength :
1310nm
Data rate :
2.97Gb/s,1.485Gb/s and 270Mb/s
Transmission distance :
standard 10km
Description

HD-SDI 5VDC power to the converter 1080P Video HD-SDI Fiber Optical Transceiver​


Overview:

This SDI to Fiber extension set includes an SDI to Fiber Transmitter and Receiver for transmitting multi-rate SDI up to 18 miles (30 Km) over fiber using a single-mode or multi-mode fiber optic cable with ST connectors.
It is a miniature-style extension solution that supports all SDI formats up to 3G including; SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols.
To prevent signal loss, input signals are equalized and ouputs reclocked to 120 meters for 3G-SDI and 140 meters for HD-SDI.


Features:

1. 8-bit or 10-bit digitally encoded and non-compression video transmission

2. Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422
and RS-482 data protocols

3. Power supply and other parameter state indication, which can monitor the operation condition of system

4. Support no-damage regenerative trunk of video

5. Constant input optical power, and large dynamic range, no electrical or optical adjustments required

6. Special ASIC design

7. Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment

8. Hot-swap function

9. Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis

10. Optical interface: FC, ST, SC(optional)

11. Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/ output and talk back

Specification:

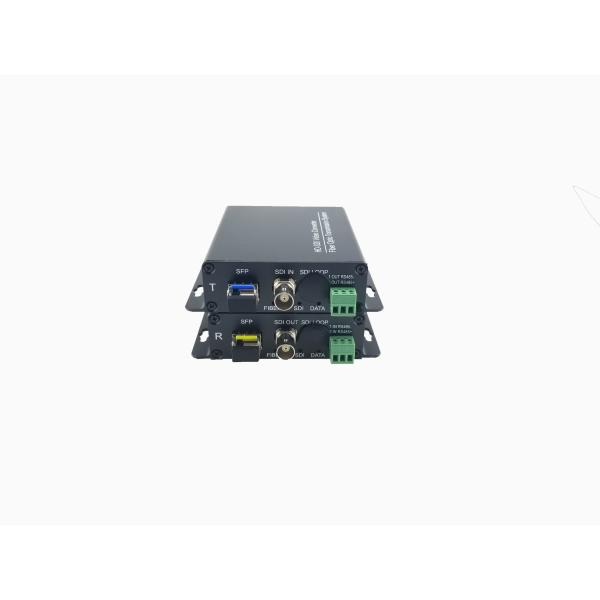

Product NameHD-SDI Optical Transceiver with 1CH Reverse Data
Product ModelHL-T/RHDSDI-1D-S
Connector Type1 chanel input(HD-SDI), 1 channel ring out;Receive end: 2 chanels output+data; Video port type:BNC
Optical FiberSFP interface
Optical DistanceMax 100km
Power SupplyAC85-260V/50Hz
Power Consumption3w(Input:DC5V 1000mA)
Dimension116mmX110mmX25mm
Working EnvironmentWorking Temperature: 0 ℃~+85 ℃; Store Temperature:-45 ℃~+95 ℃; Relative Humidity: 0 ~ 95% (no cold condensation)
CertificationCE mark,commercial,FCC Part 15 Class B,RoHS
Industrial Standard3 years warranty



Application:

  • Ø Intelligent transport monitoring system
  • Ø safety and security monitoring system
  • Ø campus network, industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.)
  • Ø military monitoring (warehouse, guard and confidentiality etc.) TV program transfer system
