Specifications
Brand Name :
Ho-Link/OEM
Model Number :
H-1CVI/TVI/AHD-T/RF
Certification :
Fcc/CE/Rohs
Place of Origin :
China
MOQ :
1 PAIR
Price :
Negotiable
Payment Terms :
TT,Western Union,Paypal
Supply Ability :
10000pair/year
Delivery Time :
within 3 working days after payment confirmed
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :

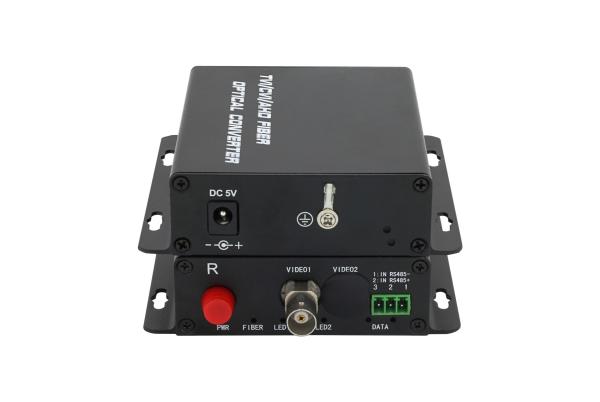

1-Ch HDCVI/TVI/AHD to Fiber Converter
Transmission Distance :
20Km
Operation Temperature :
-40℃~+75℃
Optical Wavelength :
Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm
Video Resolution :
720p(25/30/50/60 Pin), 1080p
Description

1-ch Digital HD-CVI Video Fiber Optical Converter+1Ch RS485 data


Product Description:

AHD Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

Full HD 1 Channel CCTV video digital optical c Support 720p/960p/1080p Ptz controlling 4-Ch HDCVI/TVI/AHD to Fiber video

Features:

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~64 channels AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation

Technical Specification

Feature Description
Optical Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC or ST or SC
Distance 0km~80km (Optional)
Wavelength

Transmitter

T1310nm, R1550nm.

Receiver

T1550nm,R1310nm.
HDCVI(Transmitting) Input level >500mVp-p
self-adaption cable equilibrium

1080p:75-5

coaxial cable,300m

720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface 1~16 channel BNC connector
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface 1~16 channel BNC connector
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate less than10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)

>100 000 hours
General EPS DC5V
Power Consumption less than 5W
Operation Temperature —40℃~75℃
Operation Humidity 10%~90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall mounted

Application Diagram:

Full HD 1 Channel CCTV video digital optical c Support 720p/960p/1080p Ptz controlling 4-Ch HDCVI/TVI/AHD to Fiber video

  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)
Order Information:
Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data

Full HD 1 Channel CCTV video digital optical c Support 720p/960p/1080p Ptz controlling 4-Ch HDCVI/TVI/AHD to Fiber video

We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.

Company Information

Company Information

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore, Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
