Specifications
Brand Name :
Ho-Link
Model Number :
H-CVI-T/RF
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
1-3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Operation Temperature :
10% ~ 90% (non-condensing)
Video channel :
16 ch hd forward video
Output level :
1Vp-p
Transmission Media of Data :
Coaxial cable
Customized Service :
OEM & OMD
EPS :
DC5V
Description

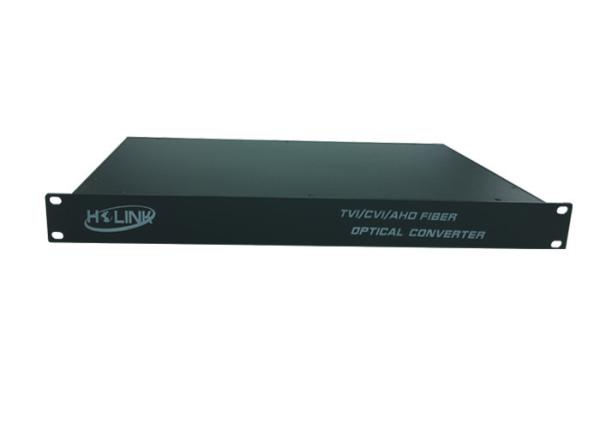

1U Rack-mounted 16Chs CVI Video to Fiber Optic Converter

Introduction:

HDCVI Fiber to Converter is designed for long-distance optical fiber transmission HDCVI HD composite video and design, the use of non-compressed digital video technology, the use of point to point optical fiber coaxial transmission megapixels level HD video, the delay-free, high reliability video transmission. Single fiber can simultaneously transmit 1/2/4/8/16 road HDCVI HD composite video.

Features:

  • Ø Card type or independent structure, which is applied to centralized management 4U framework
  • Ø 8-bit digital code and non-compression type video transmission
  • Ø Support any high-resolution video signal
  • Ø 5Hz-10MHz video channel
  • Ø Automatic compatible PAL, NTSC and SECAM video system
  • Ø With APC circuit, constant input optical power, and large dynamic range
  • Ø Kilomega optical fiber transmission, large capacity, and easy to upgrade
  • Ø Power supply and other parameter state indication, which can monitor the operation condition of system
  • Ø Support no-damage regenerative trunk of video
  • Ø Advanced self-adapting technology, and it is unnecessary to implement the adjustment of spot electrics or optics when using
  • Ø Industry-grade design and modularization design make the equipment reliable and flexible
  • Ø Can automatically restore the fuse of power supply
  • Ø Full built-in power supply, and the appearance design of shell is unique.


Technical Indexes:
Feature Description
Optical Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC or ST or SC
Distance 0km~80km (Optional)
Wavelength

Transmitter

T1310nm, R1550nm.

Receiver

T1550nm,R1310nm.
HDCVI(Transmitting) Input level >500mVp-p
self-adaption cable equilibrium

1080p:75-5

coaxial cable,300m

720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface 1~64 channels BNC connector
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface 1~64 channels BNC connector
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate <10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)

>100 000 hours
General EPS DC5V
Power Consumption <5W
Operation Temperature —40℃~75℃
Operation Humidity 10%~90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall mounted

Application Diagram:

video to fiber optic converter 16chs 1080p Video Converter Coaxial cable audio transmitter receiver

  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)
Order Information:
Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data

video to fiber optic converter 16chs 1080p Video Converter Coaxial cable audio transmitter receiver

We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
