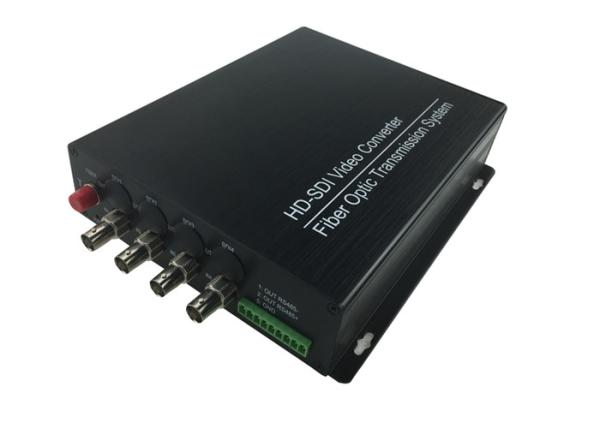

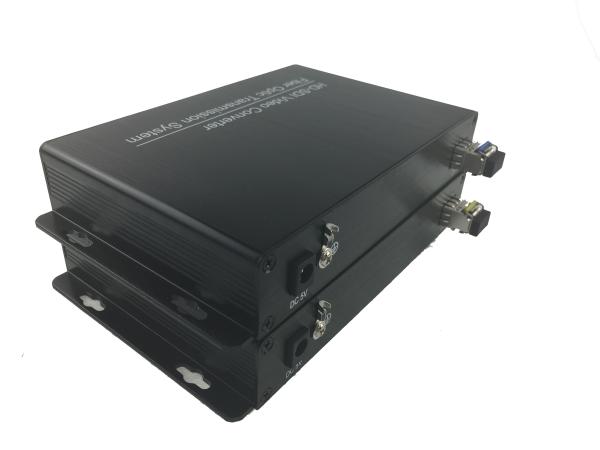

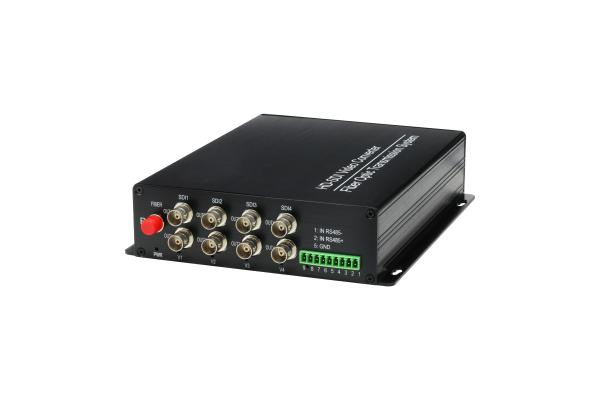

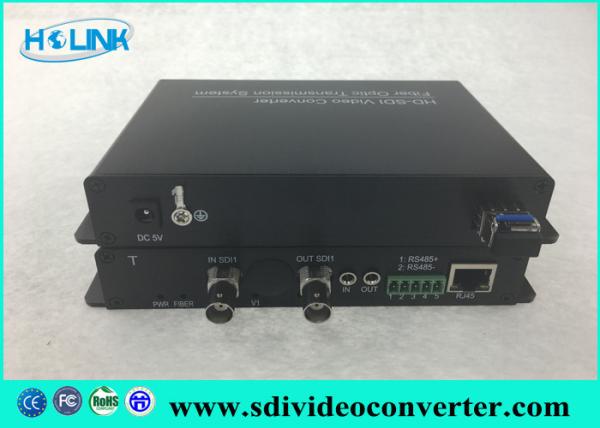

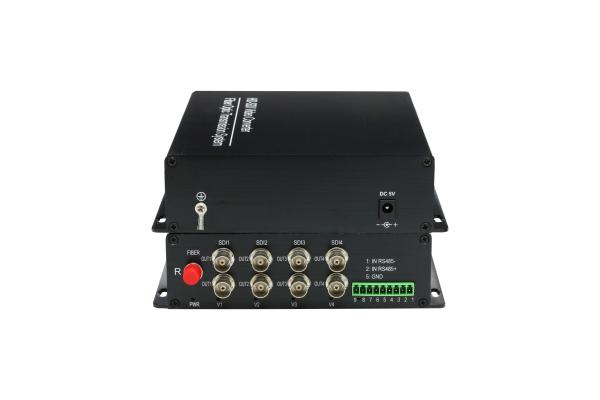

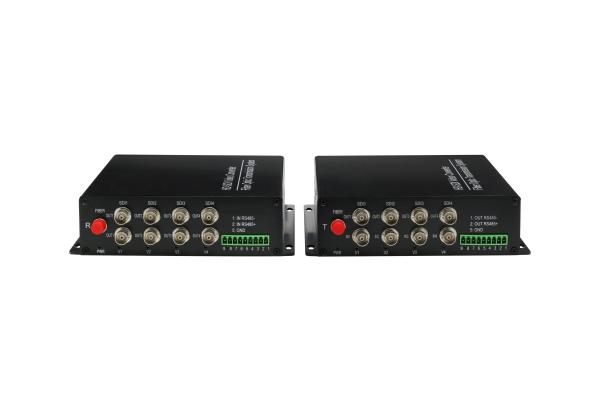

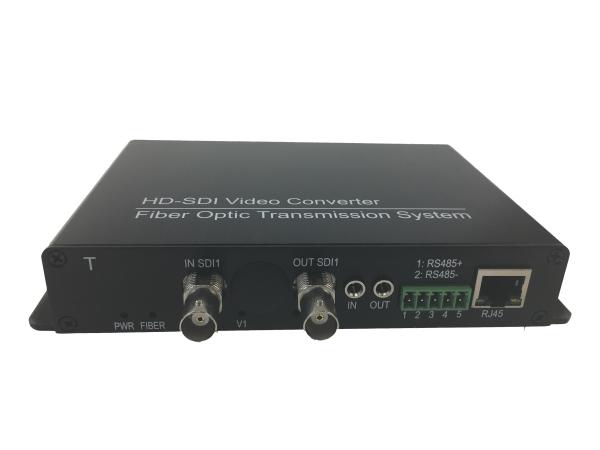

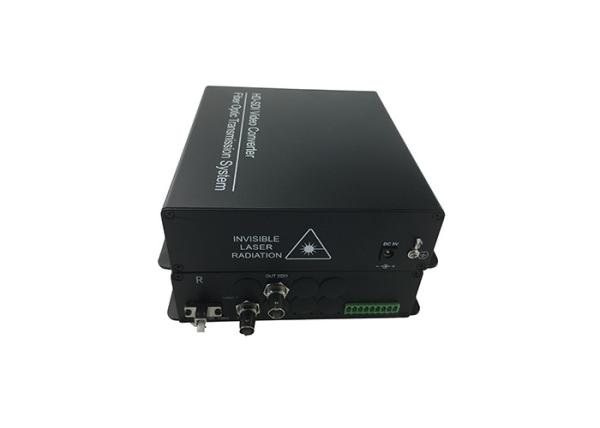

4Channel HD-SDI to fiber converter for TV live broadcast,support 1080P@30fps SDI video,85mmx76mmX30mm

Overview:

The HL-4V1D-20T/R/HD-SDI is a high performance, and reliable, 4-channel HD-SDI video optical transceiver, which perform real-time, loss-free and high-quality HD-SDI transmission(audio embedded) and one unidirectional (default)/bi-directional RS485 data over an optical line, which can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system.

Feature:

1. Adopts high-definition transmission without compression technology to realize real-time, loss-free and high-quality video transmission

2. Comply with SMPTE 424M 3G SDI,SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 2.97Gb/s,1.485Gb/s and 270Mb/s

3. 1080P@(30,29.97, 25,24,23.98)fps,1080I@(60,59.94, 50)fps,720P@(60,59.94, 50,30,29.97,25,24,23.98)fps, and 625i, 525i n

4. Embedded ESD and surge protection circuit to prevent damage from static and thunder

5. With NOP (No optical signal) alarm indications, output status indicator and input lock indicator

6. With APC circuit to perform stable optical power

7. One unidirectional(default) /bi-directional RS485 channel, half duplex, up to 115.2Kb/s baud rate.

Specification:

Application:

Remark

•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization

Shipping and packing:
