Product Description

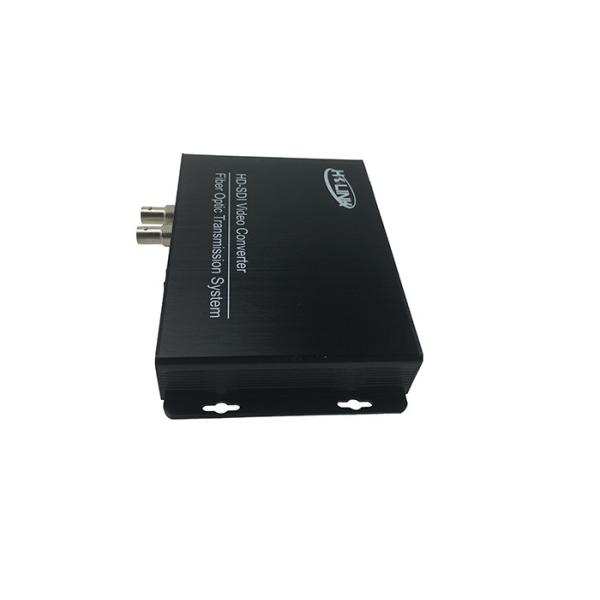

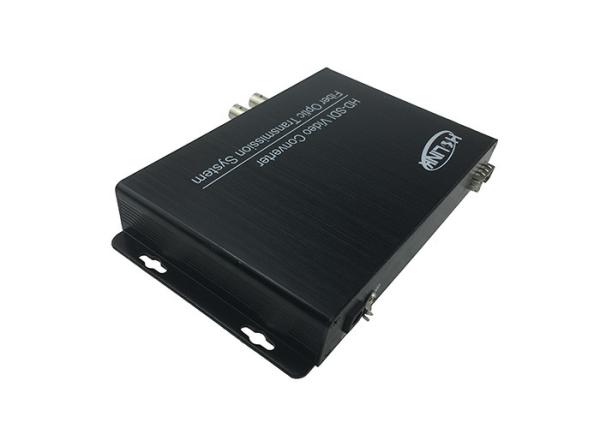

Mini SDI Over Fiber Optic Extender is dedicated to the HD / SD-SDI video and embedded audio and RS485 data via multimode fiber cables ideal, economical transmission equipment. SDI Over Fiber Optic Extender uses leading digital fiber optic transmission technology, in a single-mode optical fiber’s transmission distance, it transmite a way SD / HD-SDI video signals.In simple, a mini SDI Over Fiber Optic Extender systems, Transmitter for sending, Receiver for reception.PTE292M, SMPTE259M standards, as well as DVB-ASI (, such as a digital television signal formats.

It allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.

Features

• SDI Standard: HD-SDI, SD-SDI
• Up to 50m / 160ft via CAT5e cable
• Up to 60m / 200ft via CAT6 cable
• Supports SDI-SMPTE 259M-C (270Mbps);
• HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
• LED diagnostics: sync, SDI auto-detection
• 5V~24V DC

Main Features

1) One way HD-SDI fiber transmission high-definition digital video and audio signals

2) SD, HD input automatic detection, support 270Mbit/s - 1.48Gbit/s rate; support the new 1080P HD-SDI format

3) Support SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signal and DVB-ASI signal

4) For reliable transmission by multi-mode or single-mode optical fiber, the single mode fiber 10KM, up to 60KM

5) The built-in cable equalizer for Equalizer, clock regeneration circuit Relocked and cable driver

6) Power and other parameters indicate LED can monitor systemstatus

7) Signal input with automatic cable equalization function, output has a long drive function

Packaging & Shipping

PACKING CONTENTS
1) Main Unit. SDI Over Fiber Optic Extender
2) Manual
3) Power Adapter

Company Information

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,

Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
