4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data

Specifications

Brand Name :

Ho-link/OEM

Model Number :

HL-4V-20T/R/3G-SDI

Certification :

CE/ROHS/FCC

Place of Origin :

China

MOQ :

1 Pair

Price :

Negotiable

Payment Terms :

T/T or western Union or Paypal

Supply Ability :

6000pcs per month

Delivery Time :

3 working days after received your payment

Packaging Details :

Neutral /Standard/Customized packing

Product Name :

3G SDI to fiber converter

Fiber connector :

FC/SC/ST

Transmission distance :

0-20KM

Warranty :

3 years

Wavelenght :

1310nm/1550nm

Description

3G SDI fiber optic video converter extender,4Ch 1080P@30fps HD SDI video+1Ch embedded Audio180mm x 123mm x 30mm

Overview:

Ho-link SD/HD/3GSDI transmitter and reveiver is the low cost transfer device for one way SD/HD/3GSDI video by single mode and multimode optical fiber cable transfer. SD/HD/3GSDI transmitter and reveicer is designed by digital optical transfer technology, transfer long distance one way SD/HD/3GSDI video signal on one single mode optical fiber. Support SMPTE292M.SMPTE259M.SMPTE424 signal. The device comprise of tramsmitter and receiver: Transmitter convert SDI signal to optical signal; Receiver convert optical signal to SDI signal and output.

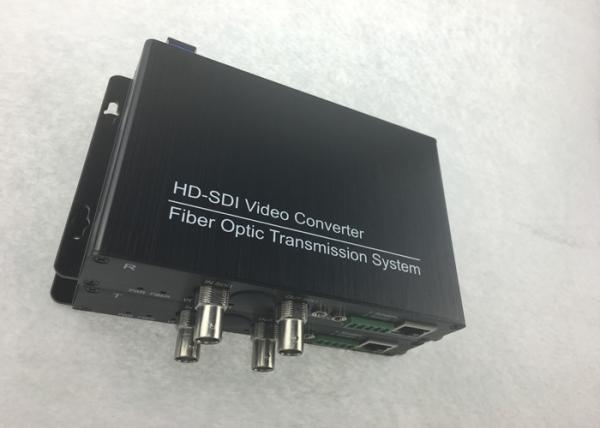

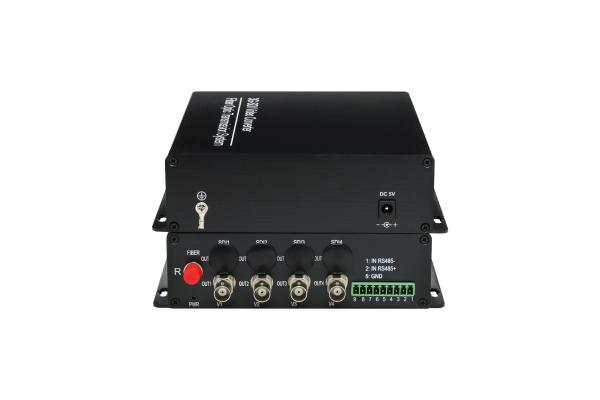

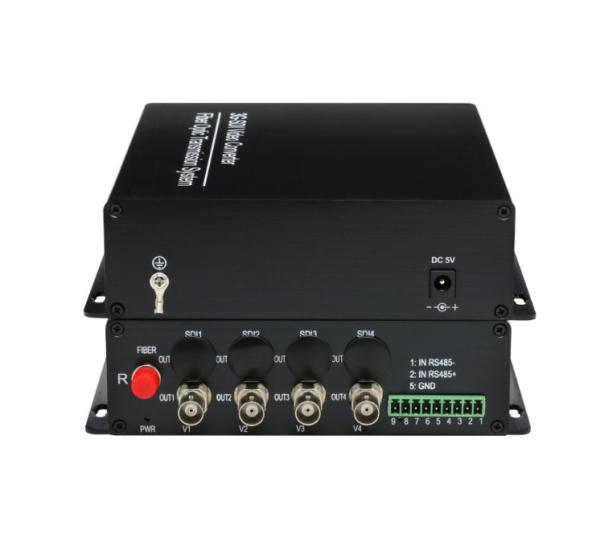

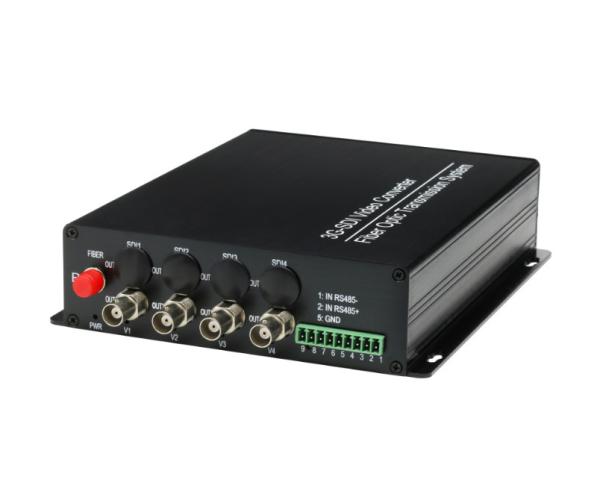

Photo show:

Feature:

1. 8bit/16.5MHz digital sample for video signal

2. High speed synchronous digital transmission technology

3. Module construction design

4. Super optical dynamic range

5. Power, optical, video and data status indication

6. Non electromagnetic interaction

Specification:

Model/Name	HL-4V-20T/R/3D-SDI
Quantity/Type	Single Mode, Single Fiber
Video port	3G-SDI
Transmission Distance	0m-20Km/30km/40km/60KM optional
Fiber Connector	SC/FC
Wave Length	1310nm/1550nm
Transmitted power	"-11dbm~-4dbm
MaximumReceiving Sensitivity	<-26dbm
Signal Type	SD-SDI(270Mbps)/HD-SDI(1.485Gbps)
Video Standard	SMPTE259M/292M/344M/ITU
DATA comm. method	RS232/422/ RS-485
Power Consumption	3~5 Watts
Operating Temperature	Operating: -30℃ ~ +75℃
Storage Temperature	Operating: -40℃ ~ +85℃
Relative Humidity	0~95% RH (Non-condensation)
Dimension	180mm x 123mm x 30mm
Weight	2kg

Application:

4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data

Packaging & Shipping

1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

Payment

Our Services

Welcome to inquire!

4channels 3G SDI Video Converter 1080P@30fps HD SDI video + 1Ch embedded Audio+Rs485 data
