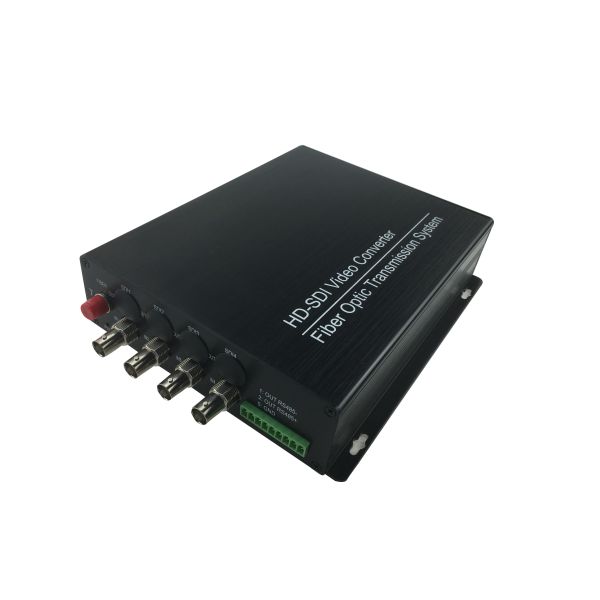

4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter
Specifications
Brand Name :
Ho-Link
Model Number :
H-AHD-T/RF
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
1-3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Power :
220VAC or -48VDC
Date support :
RS232,RS422,485
Distance :
2km to 120km
Rise and Fall time :
<0.8ns
Application :
CCTV/Protection/monitor ect
Fuction support :
video,Audio,date,hd-sdi,AVI,AHD,HDMI
Warranty :
3 year
Description

4 Channel AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter

Product Description

Introduction

Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

Devices are available for either standalone or rack-mount installation, which is suitable for

different working environment .

Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation

Application

² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)

AHD TO Fiber Converter System connection diagram

4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter

Technical Specification

Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~80KM (SM)

Video:

Number of Channels 1~16
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Packaging & Shipping

1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter

Payment

4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter

Our Services

Welcome to inquire!

4 Channel CVI TVI AHD Fiber Media Converters with RS485 Data , 50/125u multimode fiber converter

Ho-Link Technology Co.,Ltd

Contact Information:

Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-2640 lisaxiao03
Website: www.holinktech.com

Company Information

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
