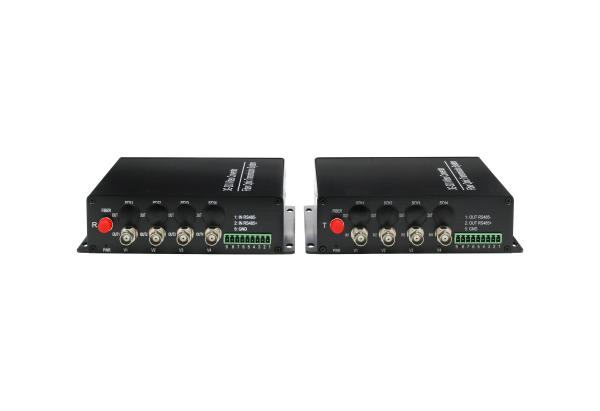

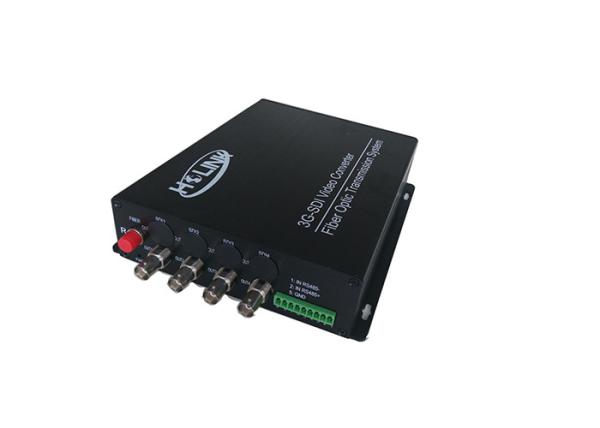

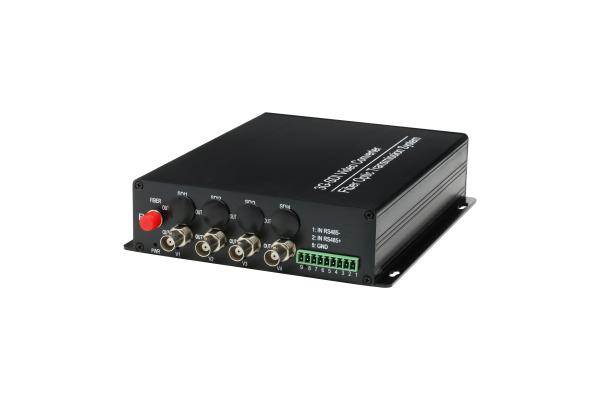

4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km
Specifications
Brand Name :
Ho-link/OEM
Model Number :
HL-8V-20T/R/3G-SDI
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1 Pair
Price :
Negotiable
Payment Terms :
T/T or western Union or Paypal
Supply Ability :
6000pcs per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Neutral /Standard/Customized packing
Product Name :
3G SDI to fiber converter
Data rate :
2.97Gbps
Interface type :
FC/SC/LC
Support Resolution :
1080P@60fps
Cage :
Aluminum Alloy
Weight :
2KG
Description

4 Port 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km

Overview:

Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.

4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km

Feature:

1. 8 Channel HD-SDI High density digital audio/video fiber transmission

2. Handle all Pathological patterns

3. SD, HD, 3G input auto indentification,support three datarate 270Mbit/s - 1.48Gbit/s - 3Gbit/s

4. Support SMPTE-424M 3Gbps HD-SDI,SMPTE-292M HD-SDI , SMPTE-259M SDI

5. 10Km on single Mode Fiber transmission

6. 1470~1610nm CWDM wavelengths optional.

Specification:

SDI input/output
Signal format SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface BNC 75 Ohm
Fiber interface TC/UPC
Number of tranmitter channel 8
Transmitter wavelength CWDM wavelength optional
Transmitter output power -5~0dBm(0±3dBm optional)
Number of receiver output 8
Receiver sensitivity -18dBm~0 dBm
General index
Input power DC 12V
Power consumption 8W
Work Temp -20°C to 55°C
Storage Temp -40°C to 85°C
humidity 0 ~ 95% (non-condensing)
Net weight 2.5KG/pair

Application:

  1. Remote OB Van/Truck Video Feeds
  2. Broadcast Studio Camera Feeds
  3. Long-haul Signal Transport
  4. TV station/video conference
  5. Lecture Hall Projector Connectivity
  6. Medical/Surgical Room Broadcast
  7. Building to ing video conference calling
  8. Small corporate campus video links Product connection diagram4 Port 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data
Packaging & Shipping

1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km

Payment

4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km

Our Services

Welcome to inquire!

4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km

Ho-Link Technology Co.,Ltd
4 channel 3G SDI Fiber Optical Transceiver With 1Ch RS485 Reverse Data 20km

Company Information

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
