1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
Specifications
Brand Name :
HO-link
Model Number :
H-CVI/TVI/AHD-1V1D-T/RF
Certification :
CE FCC RoHS
Place of Origin :
CHINA( MAINLAND)
MOQ :
1 PAIR
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
6000pairs one month
Delivery Time :
3-5 working days after payment
Packaging Details :
international standard package
power supply :
DC 5V
resolution :
720/1080P
Distance :
0-20KM
Fiber Power :
-9~ -5dBm
Rx Sensitivity :
-24dBm
Video Interface Number :
1-64
Description

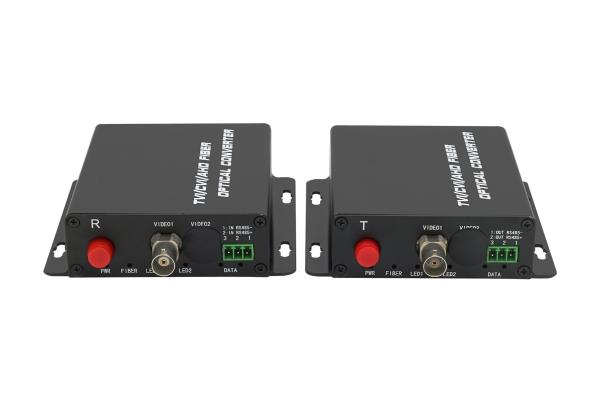

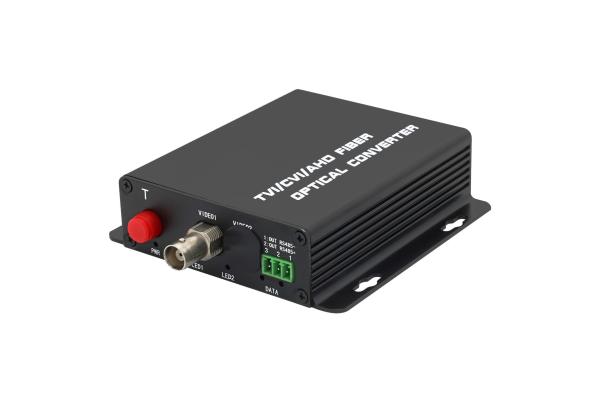

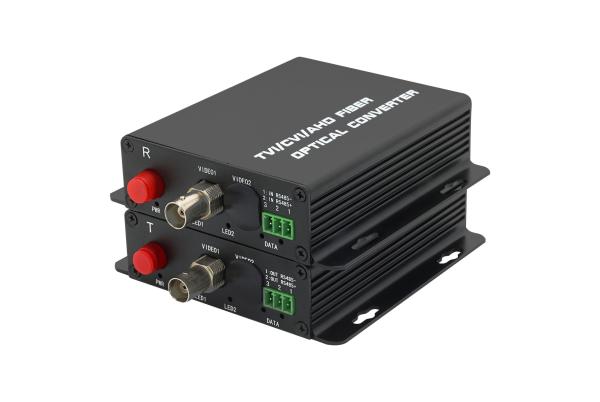

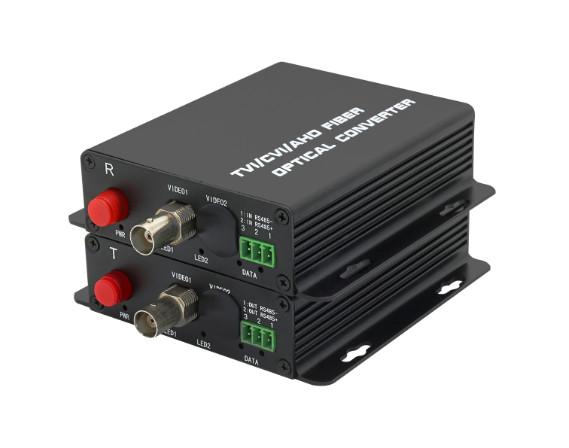

1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km

Product Description:

Our 1-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video

format HD-TVI / HD-CVI / AHD , can simultaneously transmit 1 channels video and 1-ch RS485 over one

core multimode or single-mode optical fiber. It also supports the regular analog video format such as

PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog

video/data signals . Devices are available for either standalone or rack-mount installation, which is

suitable for different working environment . Electronic and optical adjustments are never required. LED

indicators are provided for instantly monitoring system status.

Features:

•Lossless non-compression real time transmission.

•Automatically identify formats of input video :AHD/TVI/CVI/PAL/NTSC/SECAM

•Support 720P/25/30/50Hz , 960P/25/30Hz,1080P/30Hz

•Advanced lightning protection design ,support 5.7KV lightning protection

Through LED indicators to inform its functional mode

•Industrial wide range of operational temperature

•Stand-alone or Rack-mounted, simple installation.

Specification:
Type HD-CVI/TVI/AHD
Fiber Port FC
Distance 20KM
Input/Output Wavelength

Transmitter: TX1310/RX1550nm

Receiver:TX1550/RX1310nm
TX Input Level >500mVP-P
RX Output Level 1VP-P
Inputautomatic cable equalization

1080p:

75-5 coaxial cable 300m
Tx iuput Return Loss >15dB
Input/Output Impedance 75Ω
Rx Up/down time <0.8ns
Rx Max. Jitter <0.2UI
Video Port BNC
Input/Output Ports 8
Video Bandwidth 50MHz
Video Capture 8bit
Baud Rate 1200-9600bps
Data Terminal Blocks
BER < 10-9
Operation Mode Half Duplex
LED Status Indication Fiber-link,Power,Data,Video Source
Power DC5V 1A
Power Consumption <=5W
Humidity 10%-90%
High and Low Temperature -40~+75 °C
Installation Method Wall-mounted
Dimenshion(mm) 140*173*25
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
Shippng and Packing:
shipped: by TNT UPS Fedex DHL etc.
packing: international standard package
Packing List:
Transmitter and Receiver 1 pair
Power Adapter (EU,US,UK available)
English User Manual

FAQ

1.What is your minimum order?

To satisfy customser`s requirements ,we accept sample order,even one Piece.


2. Do you ship internationally?
Yes.We can ship anywhere you would like.we can ship it via our delivery forwarder or on your shipping account number,to ensure you are getting the best rates, which allows you to handle the export/import taxes.


3. I placed an order,who do i call to get tracking information?
Our sales staff that you placed your order with,he/she will provide you with tracking information by email.


4. Why choose Ho-link?
1) Prompt delivery and remarkable services.
2) Competitive selling prices.
3) Rich experience of OEM &ODM co-operation.
4)100% new materials for production and 100% reliable quality.

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
Testing equipment
1 Channel Tvi / Cvi / Ahd Reverse HD 1080p Video Converter Rs485 Distance 20km
