cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter
cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter
cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter
cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter
cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter
cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter
Specifications
Brand Name :
HO-LINK
Model Number :
HL-3GSDI-1V1D-T/RF
Certification :
CE RoHS FCC
Place of Origin :
CHINA
MOQ :
10 pairs
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
6000pairs one month
Delivery Time :
3-5 working days after payment
Packaging Details :
international standard package
Fiber Type :
SMF
video digital bit width :
8/10 bit
working temperature :
-30 °C ~ +75 °C
Data format :
RS-485/422,RS232
Optical Interface :
FC SC ST
Power :
DC 5V2A
Description

Balun 3G SDI Video Extender , 1-16Ch 1080p video to Fiber Converter DC 5V 2A

Overview

SDI Video Digital Fiber multiplexer Internationally advanced SOC digital signal processing technology and full digital video non-compression transmission technology are used in full digital video + optional optical transceiver, to real-time synchronize one-way high-definition SDI video and data/ switching value in single-core optical fiber and achieve lossless and high-quality transfer

3G- SDI video signal can be transmitted through one single fiber with non-distortion, high-quality, long-distance transmission. This series of video to fiber converter is with Stable performance, clear picture quality,and high Stability for LED Status Indication on the body of device. The working status of devices can be visually observed. At the same time,the switch value,voltage,working status and other reverse useful signal information can be controlled by data RS485.This makes our devices more flexible when different customers’ request comes.

cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter

Features

  • 1ch unidirectional 3G/HD-SDI video with embedded audio over one fiber
  • Range from 19.4Mb/s to 2.97Gb/s
  • clock recovery
  • Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
  • Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
  • Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
  • 150m automatic cable equalization, all the 2.97 Gb/s rate below(Belden 1694A)
  • Optional network management system
  • LED status indicators monitor the critical parameters
  • Optional network system
  • Support hot swap
  • Support stand-alone, 1U rack mount and 4U rack mount

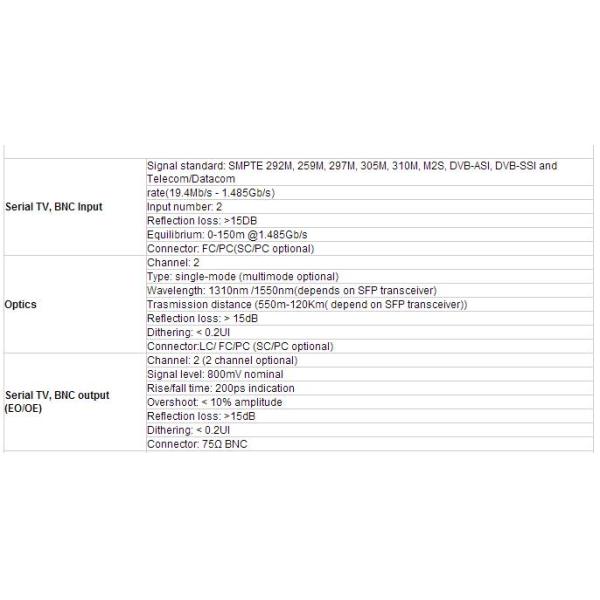

Specifications

cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter

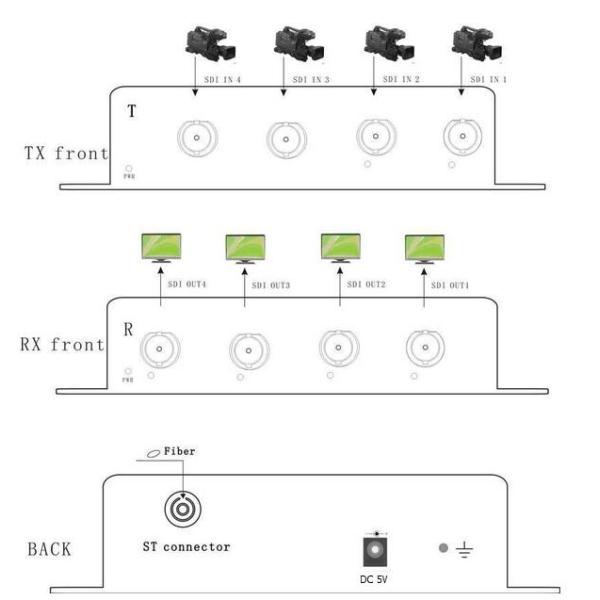

Connection Diagram:

cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter

Shipping and packing:

Payment terms:

By T/T, Western Union, Paypal etc

Delivery time:

2-3 working days after payment for sample order

5-7working days after payment for mass order cctv 20km distance , 1-16Ch 1080p video to Fiber Converter DC 5V 2A video fiber optical converter
