Specifications
Brand Name :
HOLINK
Model Number :
H-VGA-1V1D1A-T/RL
Certification :
CE FCC RoHS
Place of Origin :
China(mainland)
MOQ :
1 pair
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
6000pair one month
Delivery Time :
3-5 working days after mayment confirm
Packaging Details :
international standard package
HDMI Receiver :
5W
Warranty :
3 year warranty
Video Interface :
VGA
Fiber Interface :
FC, 1310nm/1550nm
Video resolution :
1080P
Humidity :
<95% non-condensing
Description

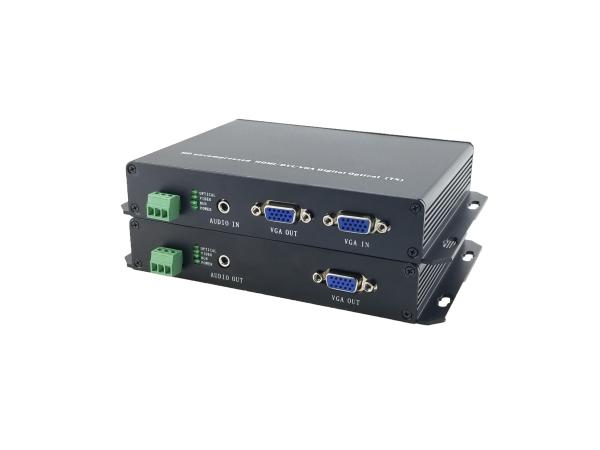

uncompressed ,one channel transmit audio ,VGA digital video to fiber optic converter,CE FCC RoHS,FC, 1310nm/1550nm

Overview

Using VGAT1/R1 optical transceiver to transmit, completely solve the problems,1 core fiber transmission distance is 1m~20km. While Optical transmission with many advantages, such as low attenuation, wide frequency band, strong antiinterference performance, high safety performance, small size, light weight, etc, so it has incomparable advantages in long distance transmission and special environment.

This uncompressed Optical Transmitter use high-speed FPGA technology, Converted VGA (up to 1920 X 1080@60Hz) into 3G optical signal. Maximum distance up to 20 km. For home theater, security monitoring, hospitals, prisons, banks and other applications.

Features

1. Full digital non-compression broadcast level transmission;

2. point -to-point, cascade connected, distributed network connection supported, and with steady SNR;

3. level 3 lightning protection;

4. free of cross interference resulted from FM/PM/AM optical transmitter and receiver;

5.1080P high resolution HD audio and video signal;

6. Lossless video regeneration & relaying supported;

7. super optic dynamic range and free of adjustment prior to use;

8. surface coating technique;

9. fiber optic WDM/CWDM/DWDM technique;

Technical Indexes

input and output interface VGA.
Optical input and output interface Single mode / multi-mode SC
Main supply input interface AC100~240V,50/60HZ
Dimension (mm): 150(L)*180(W)*44(H)
RS232 interface RS232 (optional)
Keyboard and mouse interface PS2 (optional)
Audio interface Audio,MIC
Weight 420g
Video signal bandwidth 1.65Gbps
VGA Video Multiplexer power supply input DC 5V/2A
Input optical wavelength 130nm
Transmit frequency -9.5~-3dBm, average optical power @130nm
Receiver sensitivity -23dBm average optical power @130nm
Transmit code rate 240M Hz~1.65G Hz
Transmission distance

1~2000m/ multi-mode

1~20km/ single mode
Operating temperature

-25°C~+70°C

Applications

uncompressed ,one channel transmit audio ,VGA video audio fiber media converter,CE FCC RoHS,FC, 1310nm/1550nm

Shipping

Shipments are usually delivered within 2-5 working days after payment.

Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China

Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,
Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
