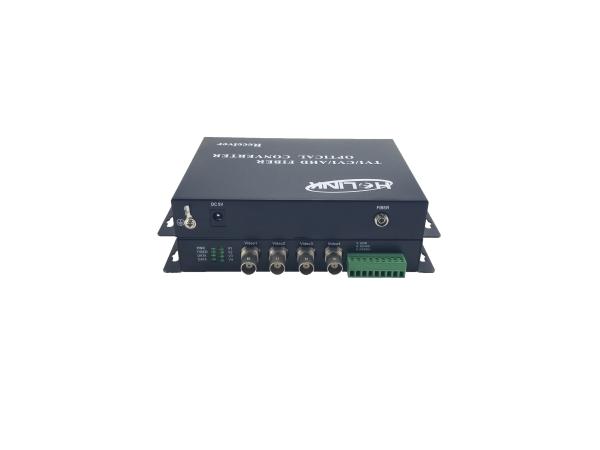

4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
Specifications
Brand Name :
ho-link
Model Number :
H-TVI/CVI/AHD-1V1D-T/RF
Certification :
CE RoHS FCC
Place of Origin :
China
MOQ :
10 pairs
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
6000pairs one month
Delivery Time :
3-5 working days
Packaging Details :
international standard package
Relative humidity :
0-95%
Operating Wavelength :
1310/1550nm
Optical :
FC (ST, SC Optional)
Encoded type :
RS485 RS422
Audio channel :
Forward/reverse audio
Video in/output impedance :
75Ω
Description

4 Channel 1080P HD CVI Video Optical Converter with Rs485 Data,1080P/4Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter

Description

video optical transceiver adopts the advanced digital video and opticalfiber transmission technology, and implement the real-time transmission &synchronization, no-distortion and high quality 32-channel video signal on thesingle fiber. 32-channel video optical transceiver adopts the full digital videonon-compression transmission technology and high quality video effect, whichcan meet the user’s requirements; the play-and-plug design makes theinstallation more convenient and easier, and it is unnecessary to implement thespot adjustment; its optical module and core circuit adopts the importedcomponents that have high stability, and all optical & electricalinterfaces conform to the international standards, which is applied to thedifferent working environment. This optical transceiver with video statusindication can monitor the normal operation of system.



Thisoptical transceiver adopts the structure modularization design, and the usercan flexibly select or customize the configuration according to the spotdetailed conditions; the above optical transceiver can adopt the installationmode of independent type or framework type.

Feature

1. Fully data no condensation broadcast level transmit

2. No simulation frequency modulation, appearance modulation, amplitude modulation
optical transmitter's across modulation disturb.
3. Support any high exculpation rate video signal, auto compatible, PAL, NTSC, SECAM
audio system.
4. Support video no lose regeneration relay.

5. Support vidio, data, Ethernet, telephone sound side by side transmit

6. Gigabit fiber transmit technology, large capability, easy upgrade.

7. Fiber WDM/CWDM/DWDM technology.

8. Advanced self-adapt technology, no have to adjust to use.

9. Fully surface adhibit technology

10. Industry level design, high dependability.

11. Independent module or rack mount style.

12. Support user handtailor and OEM.

Specifications

Video Audio
Port 4 Audio channel Forward/reverse audio
Video interface BNC In/output impedance 600Ω
Video in/output impedance 75Ω In/output voltage 2.0Vp-p(max)
Video in/output voltage (typical)1.0Vp-p/max 1.5Vp-p Frequence response 10Hz- 20Hz
Bandwidth 5-8MHz Audio digital bit wide 25Bit DVD
Differential gain <1% (typical) SNR ≥80dB
Differential phase <0.6° Non-linear distortion factor 1%
SNR ≥68dB Data interface type

Industrial standard

interface port
Field tile <0.5%
Data Switching Value
Physical connector phoenix contact (DATA) Physical connector

Industrial standard

connector port
Data connector RS-485/422,RS232 Alarm output

Support any type of active or

passive alarm output
Channels of data

Forward and reverse

path data multi-channels

 Data interface Support TTL RS-232/485/422 or relay output
Interface port Industrial standard interface port
Ethernet Environment
Physical connector Cat5 RJ45 port Working temperature -30 °C ~ +75 °C
10/100M interface

Full/half duplex,MDX

Support IEEE802.3

10/100Base-T

ethernet standard

 Storage temperature -40 °C ~ +85 °C
Relative humidity 0~95%
Telephone Optical
Connector Standard RJ11 Fiber type MM SM SM SM
Phonetic bandwidth 8KHz Budget 20dBm 20dBm 22dBm 25dBm
Distortion < 1% Transmission Distance 2km 20km 40km 60km
Other
Input rating voltage AC220V/50Hz
Power supply DC 5V/1A
Power ≤5W
Sampling rate 15MHZ
MTBF ≥100,000h

Application

1.Intelligent Transportation System
2.Connection of Sub-network for Surveillance Center
3.Public Security Surveillance
4.High Way & Toll Station Surveillance
5.High Quality Video Conference
6.Industrial Closed Circuit Television Surveillance

7.Coliseum using for TV-live ,audio transmission

Shipping and packing:

4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter

Tendtop Advantages

* We have our own factory, and all our workers are very experienced ones.
* Our products are with high quality.
* We can offer very competitive price in the market.
* We guarantee best after sales service.
* Our experts are always ready to help you when you met difficulties in actual application of our products.

Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China

Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03

FAQ

Q1 . What your MOQ?

A1 .1 pair is ok,whatever how many you need,and we will also give you the best service.

Q2.What certification did you get?

A2 : CE,FCC,ROHS ,you can trust us.

Q3 :What about your package and delivery,will it broke during shipping?

A3:You don't need to worry about the package,we will use shockproof case for delivering.

Q4.What your common delivery way?

A4:By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.

Q5.Tell me some detail about warrant time.

A5:We give you the promise if any question during 3 year and not cause by human factors,we will fix it.

Company Information

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore, Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
4 Channel HD 1080p Video Converter With Rs485 Data HD-CVI / AHD / TVI Converter
