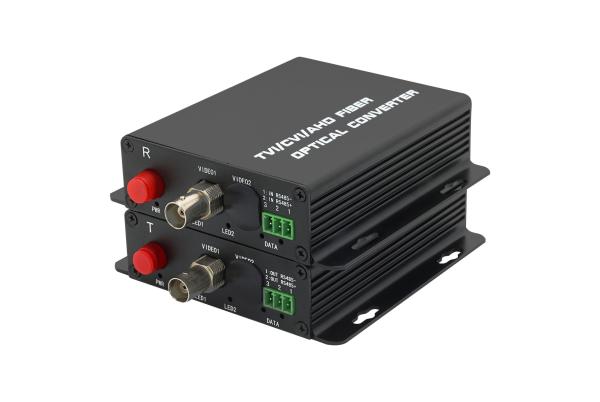

1 channel video optical transmitter and receiver (1 channel video+audio) video over fiber converter, FC, 20KM 1080P

Description

1-channel video digital video optical multiplexer adopt the advanced international digital video and optical fiber transmission technology. It can transmit 1-channel video signal via 1 fiber cable real-time, synchronously, no-distortion and high quality . 1-channel digital video optical multiplexer adopt the full digital video non compression transmission technology and it's high quality video effect can meet the user’s requirement. Easy installation and no need locale adjusting. Its optical module and core circuit adopt the imported components which is high stability and applied to the different operation environment. All optical interface and electrical interfaces conform to the international standards. This video optical multiplexer with video status indication which can monitor it's operation status.
This digital video optical multiplexer adopts modularization design. User can flexibly select or customize the configuration according to the locale conditions. Desktop version and rack mounting available.

Feature

8bit/16.5MHz digital sample for video signal

High speed synchronous digital transmission technology

Module construction design

Super optical dynamic range

Power, optical, video and data status indication

Non electromagnetic interaction

Safety transmission for arduous electromagnetic environment

BNC video connector

Terminal block data connector

FC/UPC optical connector

Video DC Restoration

Specifications

Video Specialist:

Video Input/Output Impedance: 75Ω(unbalanced)

Video Input/Output Level: 1Vpp nominal

Video Connector: BNC

Video Bandwidth: 25Hz to 8MHz

Video Distorion: <0.5%DG, <0.8°DP

Weighted Video SNR: >67dB

Data Specialist:

Electric Standard: RS485

Baud Rate: 0 – 100Kbps

BER: < 10-9

Optical:

Optical Connector: FC/SC

Transmitter Wavelength: 1310nm/1550nm

Tx Transmitter Coupled Power: -5dBm into 9/125um fiber

Rx Receiver Sensitivity:Rx Receiver Sensitivity

Rx Receiver Saturation: -20dBm

Acceptable highest optic loss budget for single-mode fiber: 15dB

Physical:

Operating Temperature: -40℃ - +85℃

Relative Humidity: 0 - 95% non-condensing

Power Requirements: DC5V

Connection Diagram

Shipping and packing:

1.Delivery Time: For sample order: within 2 days;
For normal order 1000 pieces: 3-7 days
For special order 1000 pieces: 7-15 days

2.Shipping Way: By UPS/DHL/FEDEX/TNT/EMS: 3~ 5 working day
