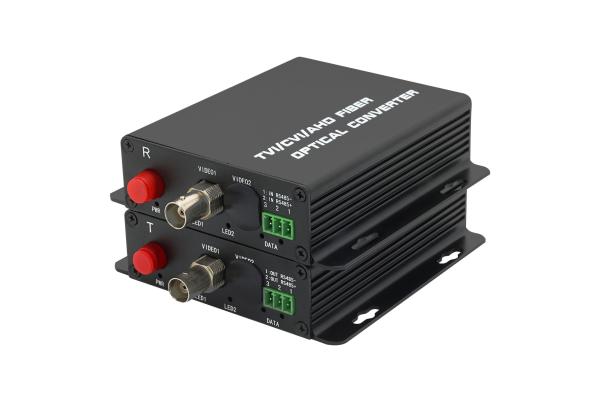

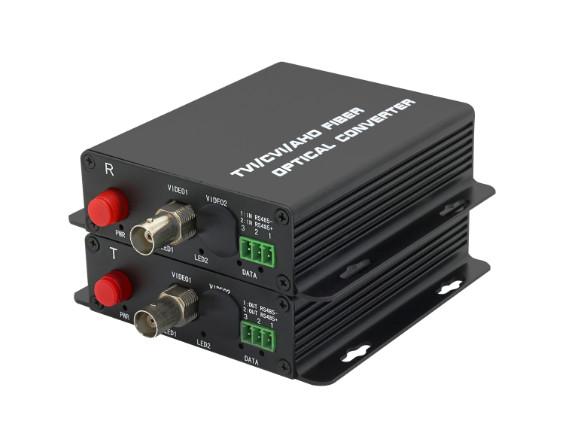

1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
Specifications
Brand Name :
Ho-Link
Model Number :
H-CVI-T/RF
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
1-3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Function :
Video to Fiber Optical Modem
Optical connector :
FC/SC/ST
Power :
DC5V 2A
Operation Mode :
Full duplex / half duplex
Color :
Black
Warranty :
3 years
Storage humidity :
10%~90% RH
Video Connector :
BNC
Case Material :
Aluminum
Description

1Ch CVI Digital Video to Fiber Optic Converter

Introduction:


This HDCVI TO Fiber video Converter can simultaneously transmit 8 channels HDCVI and 1CH reverse RS485 over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.In addition,ethernet/telephone/audio/contact closure can be added when you need.It support Dahua and other brand CCTV CVI cameras.

Specifications:

Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels 4
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1.5KG(pair)
Dimension 175mm×154mm×30mm
Installation Wall mount
MTBF ≥ 100000Hours


HDTVI TO Fiber Converter System connection diagram:

1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
About US:

1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras

Holink Technology Co., LTD is an ISO 14000:2004 & ISO 9001:2008 certified manufacturer specialized in R&D, production, sales and services of Optical Transmission products. Relying on the rapid growth of Data Center and HPC, Holink has become a Top-100 maker and one of the earliest suppliers for optical products, including optical modules and HDMI/SDI video over fiber converter.
