RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces
RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces
RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces
RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces
RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces
RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces
RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces
RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces
Specifications
Brand Name :
Ho-Link
Model Number :
H-CVI-T/RF
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
1-3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Number of Channels :
16
Distance :
10km~80km (Optional)
Input level :
>500mVp-p
Warranty :
36 month, life long maintenance
Optical Type :
50/125um Multimode,62.5/125u
Receiving sensitivity :
-22dBm
Wavelength :
Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm
Video :
720p(25/30/50/60 Pin), 1080p
Description

1U/16chs digital HD-CVI video Fiber Optical Converter+1Ch RS485 data

Descriptions:

CVI TO Fiber Converter can simultaneously transmit 1-8 channels CVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.

Specifications:

a, 1-16 HDCVI optional
b, LED indicator
c, Compatible 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f
d, Real time transmission



Aplications:

1.Intelligent Transportation System
2.Connection of Sub-network for Surveillance Center
3.Public Security Surveillance
4.High Way & Toll Station Surveillance
5.High Quality Video Conference
6.Industrial Closed Circuit Television Surveillance

7.Coliseum using for TV-live ,audio transmission

Technical Indexes:

Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels 1~8
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1/2ch:1.1kg,4ch:1.8KG,8ch:2.15KG(pair)
Dimension

1/2ch:108mm×106mm×27mm

4ch:173mm×173mm×30mm

8ch:173mm×167mm×45mm
Installation Wall mount
MTBF ≥ 100000Hours

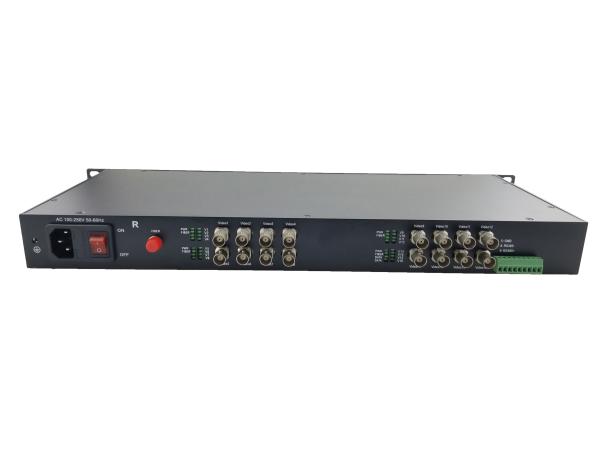

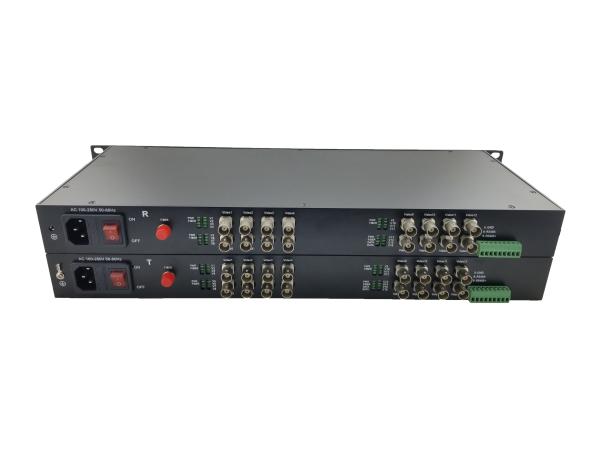

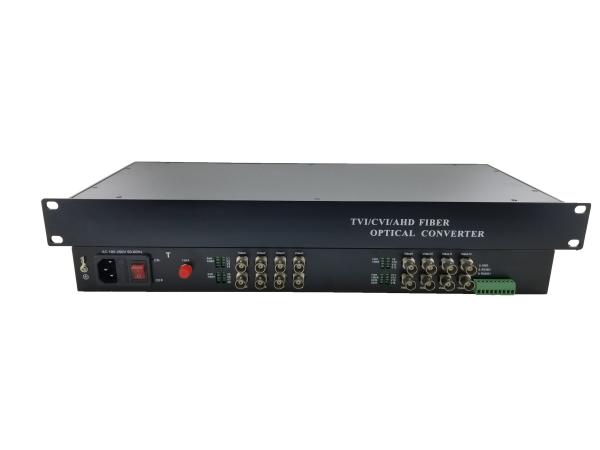

Product Display:


RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces

Our Advantage:


Holink HDCVI Video Over Fiber Converter adopt the advanced uncompressed
HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.

About US

RS485 data fibre optic converter , HDCVI video to fiber converter with 16 channel BNC interfaces

Holink Technology Co., LTD is an ISO 14000:2004 & ISO 9001:2008 certified manufacturer specialized in R&D, production, sales and services of Optical Transmission products. Relying on the rapid growth of Data Center and HPC, Holink has become a Top-100 maker and one of the earliest suppliers for optical products, including optical modules and HDMI/SDI video over fiber converter.
