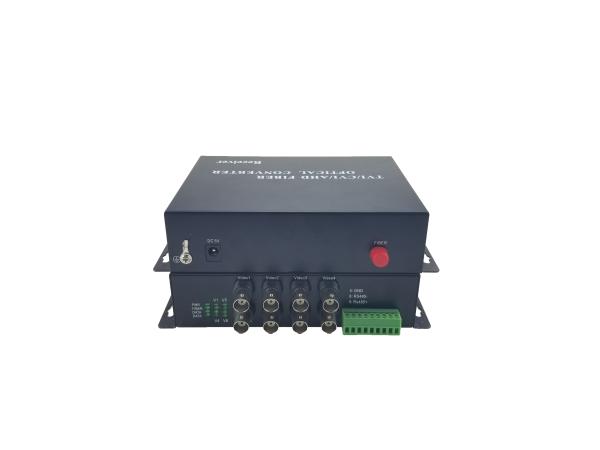

DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
Specifications
Brand Name :
HOLINK
Model Number :
H-CVI/TVI/AHD-4V-T/RF
Certification :
CE RoHS
Place of Origin :
CHINA
MOQ :
1PAIRS
Price :
USD 1-160 1 PAIR
Supply Ability :
10000PAIRS ONE MONTH
Delivery Time :
2-3 workdays
Packaging Details :
international standard package
Number of Channels :
1~16
Fiber :
Single Mode Single Fiber
Sampling Bandwidth :
10bit
Power :
DC5V 2A
Power Consumption :
≤7W
corlor :
black
Description

720P/960P/1080P HDCVI Camera Fiber Video Converter,8-Ch HDCVI/HDTVI/AHD Video Converter

Product Description

Introduction

HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.

It adopt the advanced uncompressed HD composite video and high velocity digital optical

transmission technologies which convert the high definition signals to optical signals.

HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.

Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.

The play-and-plug design makes the installation more convenient and easier for our customer.

Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation

Application

² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)

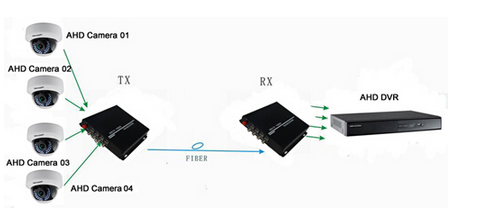

AHD TO Fiber Converter System connection diagram

DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter

Technical Indexes

Fiber FC, Single Mode Single Fiber
Transmission Distance 0-120km (Optional)
Wavelength Transmitter: 1310nm(Tx)/1550nm(Rx)
Receiver: 1550nm(Tx)/1310nm(Rx)
Transmitter Input Level >500mVp-p
Receiver Output Level 1Vp-p
Self-adaption cable equilibrium 1080p: 75-5 coaxial cable, 300m
720p: 75-5 coaxial cable, 500m
Transmitter Input Return Loss >15dB
Input/Output Impedance 75Ω
Video Physical Interface BNC
Video Channel 1-Ch~4-Ch
Video bandwidth 50MHz
Sampling Bandwidth 10 bit
RS485 1-Ch Backward RS485 (Optional)
Indicators OPT, PWR, DATA, VIDEO
Power DC 5V2A or AC220V
Power Consumption ≤7W
Operation Humidity 10%~90%
Operation Temperature -40°C~75°C

Packaging & Shipping

1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

Company Information

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.

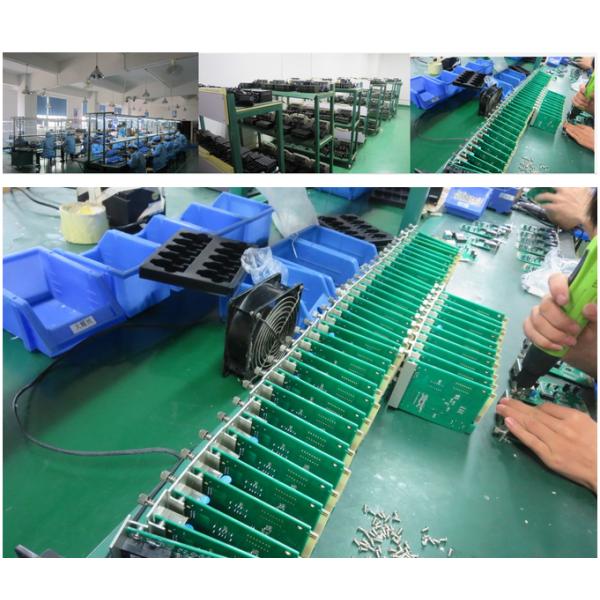

Company Photo
DC 5V 2A HD 1080p Video Converter 8-Ch HDCVI / HDTVI / AHD Video Converter
