1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter
1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter
1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter
1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter
1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter
1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter
1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter
1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter
Specifications
Brand Name :
HOLINK
Model Number :
H-CVI/TVI/AHD-8V-T/RF
Certification :
CE RoHS
Place of Origin :
CHINA
MOQ :
1PAIRS
Price :
USD 1-160 1 PAIR
Supply Ability :
10000PAIRS ONE MONTH
Delivery Time :
2-3 workdays
Packaging Details :
international standard package
Number of Channels :
1~16
Video Bandwidth :
45MHZ
Connector :
BNC
Power :
DC5V 2A
Temperature :
-40ºC ~75ºC
Description

1ch ahd video over fiber converter for 720p, 1080p/1ch 720p/960p/1080p hd-cvi/ahd/tvi converter

Product Description

Introduction

Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

Devices are available for either standalone or rack-mount installation, which is suitable for

different working environment .

Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation

Application

² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)

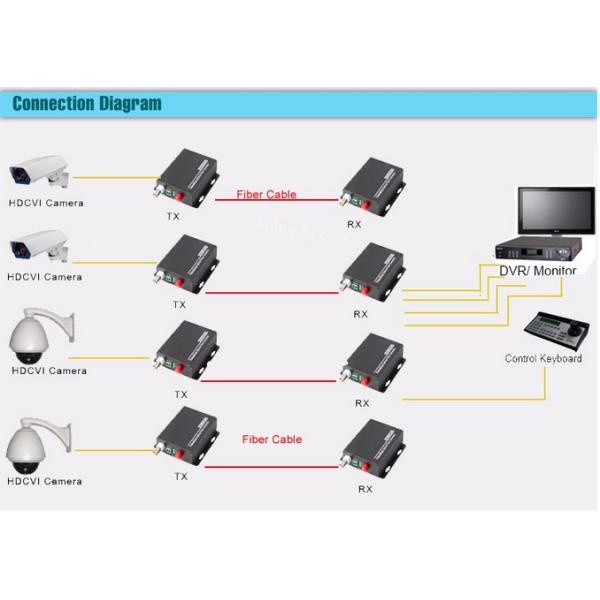

AHD TO Fiber Converter System connection diagram

1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter

Specefication

Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)

Video

Number of Channels 4
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p 720P and 1080P optional
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 2KG(pair)
Dimension 183mm×154mm×45mm
Installation Wall mount
MTBF ≥ 100000Hours

Package included:

Video Converter ×2

DC Power Adapter ×2

User Manual ×1

Warranty Card ×1

1ch Ahd Video Fiber Converter 720p 960p 1080p Hd-Cvi / Ahd / Tvi Converter

Shipment & Delivery


1.Delivery Time: For sample order: within 2 days;
For normal order 1000 pieces: 3-7 days
For special order 1000 pieces: 7-15 days

2.Shipping Way: By UPS/DHL/FEDEX/TNT/EMS: 3~ 5 working day

Our Services

1. All your inquiry about us or our goods will be replied within 24 hours
2. We own professional sales team who can help you in fluent English

3. We have experienced engineer team who can provide solutions for you

4. All video converter is 100% testing before delivery with good quality

5. 3 years warranty with best refund policy, defects will be solved for free

6. Customized service available, welcome your OEM & ODM order
