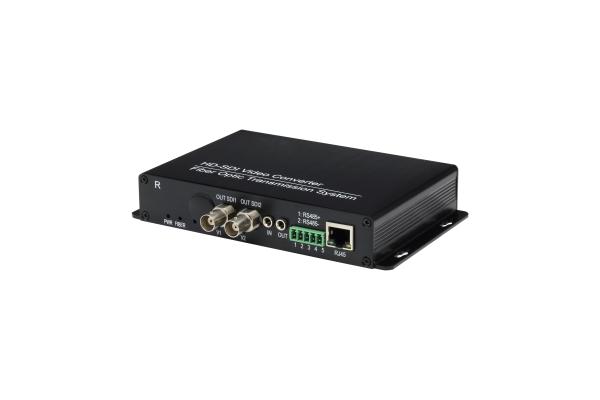

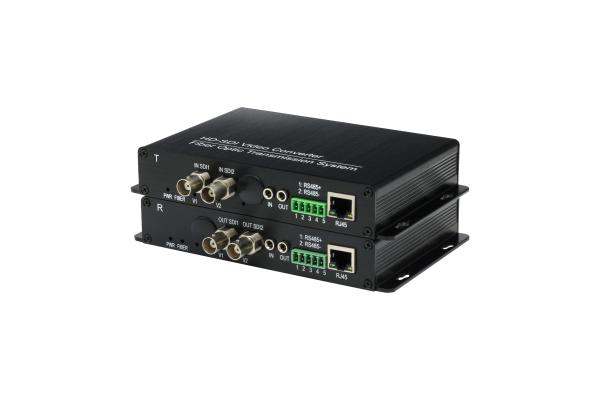

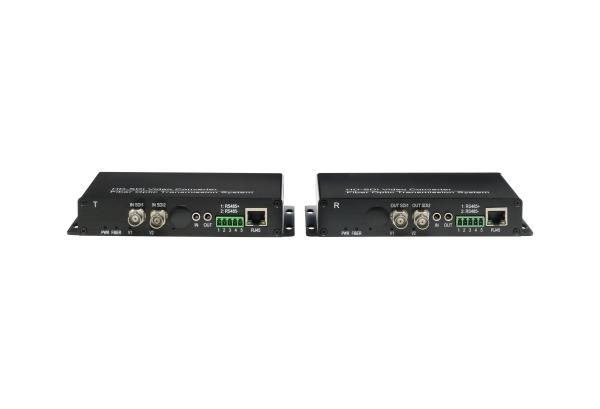

20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter
20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter
20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter
20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter
20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter
20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter
20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter
20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter
Specifications
Brand Name :
Ho-link/OEM
Model Number :
HL-1V-20T/R/HD-SDI
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1 Pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pcs/month
Delivery Time :
3 working days after received your payment
Packaging Details :
Neutral /Standard/Customized packing
Product Name :
HD-SDI to fiber converter
Color :
black
brand :
holink
Reflection loss :
>15DB
Dimension :
136*130*30mm
Operating temperature range :
-5℃ ~ +70℃
Description

HD-SDI 2CH optical transceiver module Fiber media converter extender up to 20km

Product Description

It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m

Features

•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

• The Max rate of work is 3.2Gb/s

• Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

• LED Status Indication to monitor the working conditions

• Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

•The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94

20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter

1.Monitoring

2.Surveillance in expressways

3.The custom

4.Transportation

5.Electronic police

6.Industrial automation

7.Power service

8.Banks

9.Water conservation projects, etc.

20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter

Specifications

Parameter Description
Video connector BNC
The interface bandwidth 1.4835Gbps,1.485Gbps,2.97Gbps
impedance 75Ω
Resolution

1920*1080@60Hz; 1920*1080@50Hz; 1920*1080@30Hz; 1920*1080@25Hz; 1920*1080@24Hz; 1280*720@60Hz;

1280*720P@50Hz; 525i; 625i
RS485 connector Industrial terminals
Baud rate Self-adaptive, Max:115200bps
Optical fiber Self-adaptive, Max:115200bps LC/SC
Wavelength Single-mode 1310nm
Transmission distance Single-mode:3/20/40/80km
Other Power Power adapter:DC 5V/2A
Power dissipation MAX 2.5W
Size 120mmX97.5mmX25.2mm

Packaging & Shipping

20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter

Our Services
Ho-Link Technology Co.,Ltd

Company Information

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
Company Photo
20 Km HD SDI to Fiber Converter 2CH Optical Transceiver Module Fiber Media Converter

--Advantage we have:

A: Experienced fiber optic product supplier

B: professional technology term and sales department for your service.

C: Alibaba golden supplier, factory recognized by CE

D:All the question will be dealed within 24 hours.

--Benefit you get:

A: stable quality- coming from good material and technology

B: lower price: not cheapest but the lowest at the same quality

C: good service: satisfactory service before and after sale.
