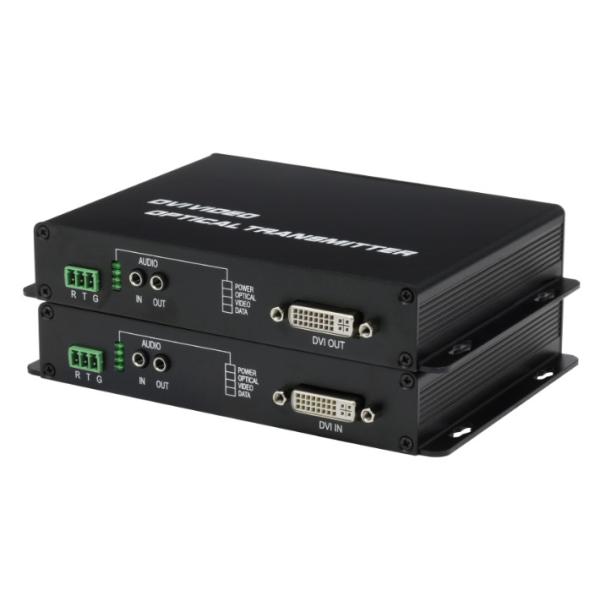

1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz
Specifications
Brand Name :
Ho-Link/OEM
Model Number :
H-VGA-1V1D1A-T/RL
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1pair
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000pairs per month
Delivery Time :
3 working days after received your payment
Packaging Details :
International Standard Package
Product Name :
VGA over Fiber Converter
Transmission wavelength :
1310nm/1550nm
Type :
single-mode
Transmission distance :
20KM
Humidity :
0-95% (non-condensing)
Wave length :
850nm/1310nm/1550nm
Description

VGA Video Converter with 1-Ch RS232 Data, HDMI/VGA/DVI video to fiber converter, support 1080P@60Hz



Overview:



This high-end fiber VGA/DVI/HDMI extender is designed specially for the projects that require transmitting high definition signals to remote location . The product includes a transmitter and a receiver, which can extend video, audio, RS232,and MIC interfaces of computer max up to 2km/20km over SM/MM fiber cable, so that users can see the picture image and hear the voice of computer remotely.
They are widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.




Main features:

  1. Support 1920*1080 @ 60Hz.
  2. Max extension distance 2KM(MM)/20KM(SM).
  3. Support plug and play, compatible with all operation system.
  4. Support VGA/DVI/HDMI,USB,audio,MIC,RS232 signals.
  5. Support adjustment of sampling frequency, phase, and image horizontal/vertical position, as well as the signal input indication.





Specifications:


Video I/O connector VGA/DVI/HDMI
HDMI version HDMI1.1 1.2 1.3
HDCP HDCP1.2
HDMI resolution 1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format 24bit/deep color 30bit/deep color 36bit
Audio format DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS 0.5-1.5Vp-p(TTL)
DDC 5Vp-p(TTL)
Input cable length ≤20m AWG26 HDMI 1.3 standard cable
Output cable length ≤20m AWG26 HDMI 1.3 standard cable
USB Protocol Support USB2.0 protocol
Audio Connector USB-to-3.5mm audio Jack
Optical Connector SM/MM SC/FC type
Wave length 850nm/1310nm/1550nm
Physical Size (L× W ×H) Sender : 164mm*115mm*26mm
Receiver: 164mm*123mm*26mm
Case metal
Color Black
N.W. 0.75Kg
Power Voltage 5V DC
Power consumption 15W
Environment Working temperature -15℃-55℃
Storage temperature -40-80℃
Humidity 0-95% (non-condensing)








Application Diagram:

1,Connect VGA input signal to VGA_IN port by VGA cable
2,Connect VGA output signal to VGA_OUT port by VGA cable
3,Connect audio input signal to AUDIO IN
4,Connect audio output signal to AUDIO OUT
5,Connect serial port to UART
5,Connect LCfiber to OPT IN and OPT OUT
6,Power on

System connection diagram1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz

Shipping:

  1. . Package List
    >VGA optical fiber transmitter ………. 1 pc
    >VGA optical fiber receiver ……………. 1 pc
    >Fiber optic module TX/RX ……………. 1 set
    >Power adapter ………………………………2 pcs
    >User manual ………………………………… 1 pc

    2. Shipment:
    > Via DHL, TNT, FEDEX, UPS, EMS, Special line etc,. It takes 3~7 days.

Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03
We have a large number of HD video converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.


Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
