XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode
Specifications
Brand Name :
Ho-Link
Model Number :
HL-XLR-S2A↑-T/RF
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
3,000pcs per month
Delivery Time :
1-3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Wavelength :
1310nm&1470nm~1610nm
Number of Channels :
2 channels
Optical connector :
FC/ST/SC/LC (optional)
Rx Sensitivity :
-24dBm
Transmission Distance :
0~20KM/40KM/60KM/80/100KM (SM)
Relative Humidity :
0% ~ 95% (non-condensing)
Operating Temperature :
-20°C ~ +75°C
Storage Temperature :
-40°C ~ +85°C
MTBF :
>100,000 hours
Description

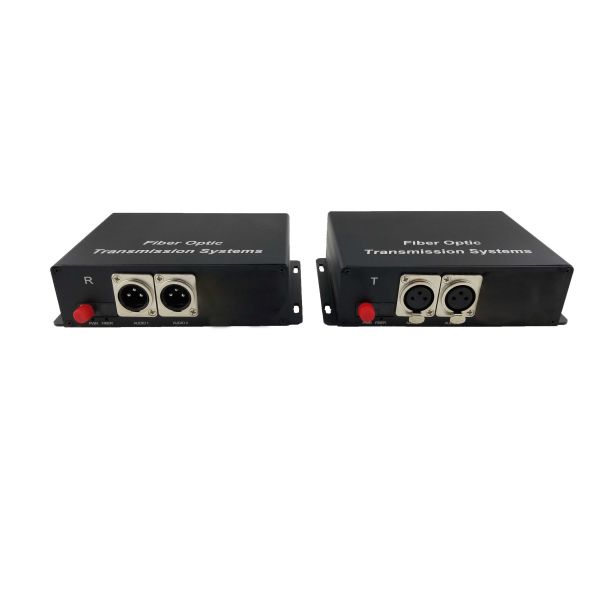

2 Channel Forward XLR Balanced Audio to Fiber Converter


Product Description


Introduction


The balanced audio sends balanced line level XLR broadcast quality audio signal up 12.5 miles on single mode fiber.The system consists of a transmitter and receiver that support 16-bit digitally encoded broadcast audio for use on single mode optical fiber.

XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode

Feature


These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, stand-alone or rack-mount installations.Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.


Connection Diagram:
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode





Technical Specification

Parameter Specifications
Optical Wavelength 1310nm&1470nm~1610nm
Output Power -1~ -8dBm
Optic Fiber

50/125u multimode,62.5/125u multimode,9/125u single mode
Rx Sensitivity -24dBm
Optical Connector FC/ST/SC/LC (optional)
Distance 0~20KM/40KM/60KM/80/100KM (SM)

Balanced Audio

 Number of Channels 2
Input Connector XLR (female)
Output Connector XLR (male)
Input / Output Impedance 10K Ohm
Input Capacitance LINE Inputs 10 pF
Max Input/output Voltage 1.228Vp-p (+4dBu)
Frequency Response 10 Hz～24kHz @±3dB
Sample Rates From 48kHz
SNR > 80dB
Electrical & Mechanical Input Power Requirements DC 12V@1A
Power Adapter AC 100V~240V
Power Consumption < 5W
Dimensions 167mm × 113mm × 44mm
Weight 1.35kg(include Transmitter & Receiver )

Environmental

 Operating Temperature

-20°C ~ +75°C
Storage Temperature

-40°C ~ +85°C
Relative Humidity 0% ~ 95% (non-condensing)
MTBF

>100,000 hours
Packaging & Shipping

1 All of our package are international standard package
2 We will deliver our products as soon as the order confirmed

Shipment
XLR Balanced Audio to Fiber Converter,broadcasts quality audio signals up to 12.5 miles of single-mode

Company Information

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
