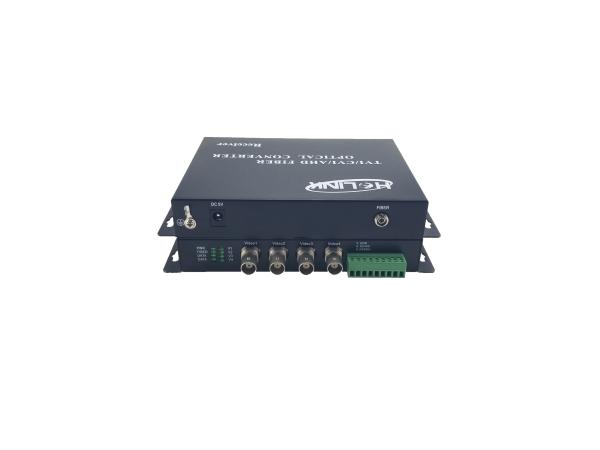

4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter
4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter
4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter
4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter
Specifications
Brand Name :
Ho-Link
Model Number :
H-CVI-T/RF
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
15 Pairs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000Pairs per month
Delivery Time :
1-5 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Video Connector :
BNC
Fiber Type :
Multi-mode fiber or Single mode fiber
Fiber Connector :
FC or ST or SC
Distance :
10km~80km (Optional)
Commodity Name :
HDCVI Optical Converter
self-adaption cable equilibrium :
1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m
Input/Output Impedance :
75 Ω
Physical Interface :
1channels BNC connector
Description

4ch video+1 return data Fiber Optical Video Converter/ Digital video fiber 16ch video+1 return data HDCVI over Fiber Transceiver HD-CVI video converter with 16 channel fiber optic

Product Description:

4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

AHD Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

Features:

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~64 channels AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation

Specifications:

Feature Description
Optical Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC or ST or SC
Distance 0km~80km (Optional)
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDCVI(Transmitting) Input level >500mVp-p
self-adaption cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface 16 channels BNC connector
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface 1~64 channels BNC connector
Data Transmission Media Coaxial cable
Baud Rate 1200～9600bit/s
Bit Error Rate ≦10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)
＞100 000 hours
General EPS DC5V
Power Consumption ≦5W
Operation Temperature —40℃～75℃
Operation Humidity 10%～90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall mounted


Specification:
4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

Application Diagram:

4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

  • Ø City traffic monitoring system
  • Ø Public security, safe city monitoring system
  • Ø Highway security protection, charging system
  • Ø Building, campus monitoring net
  • Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • Ø electric power, oilfield, television program transmission system
  • Ø Gymnasium (live video, audio transmission)
Order Information:
Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data

4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
