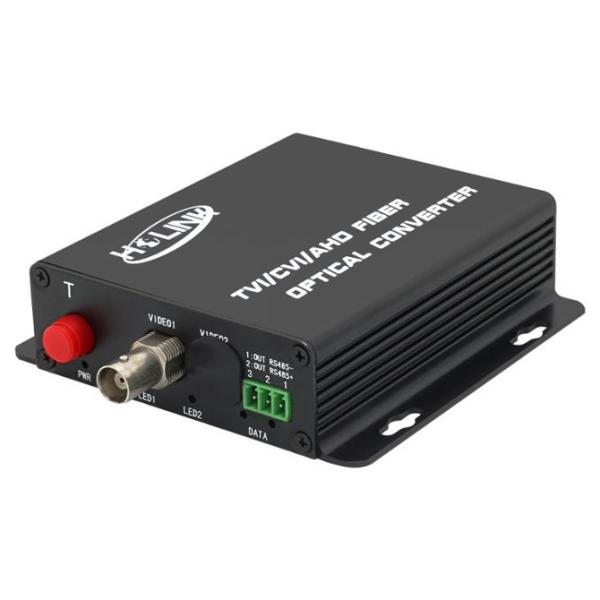

Hd 1080p HDCVI/TVI/AHD to Fiber Video Converter Fc Sc St Fiber Port
Hd 1080p HDCVI/TVI/AHD to Fiber Video Converter Fc Sc St Fiber Port
Hd 1080p HDCVI/TVI/AHD to Fiber Video Converter Fc Sc St Fiber Port
Hd 1080p HDCVI/TVI/AHD to Fiber Video Converter Fc Sc St Fiber Port
Specifications
Brand Name :
Ho-link
Model Number :
H-TVI/CVI/AHD-2V1D-T/RF
Certification :
CE RoHS FCC
Place of Origin :
China
MOQ :
10 pairs
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
6000pairs one month
Delivery Time :
1-5 working days
Packaging Details :
international standard package
Housing :
steel
Indicators :
OPT, PWR, DATA, VIDEO
F/O connector :
FC/ST/SC
Power supply :
DV 5V 2A
Encoded type :
RS485 / RS422 / RS232 / Manchester
Description

VIDEO AUDIO OPTICAL MEDIA CONVERTER,1CH 2CH 4CH 8CH 16CH for option,with Alarm Data & Ethernet,FC SC ST fiber port,40KM,

Description

HD-CVI/AHD/TVI Fiber to Converter is designed for long-distance optical fiber transmission HD-CVI/AHD/TVI composite video and design, the use of non-compressed digital video technology, the use of point to point optical fiber coaxial transmission megapixels level HD video, the delay-free, high reliability video transmission. Single fiber can simultaneously transmit 1/2/4/8/16 road HD-CVI/AHD/TVI composite video.

Can effectively solve the long-distance optical fiber transmission Dahua HD-CVI , Hikvision HD-TVI and XM HD-AHD camera signals, including 1280H, 1920H of 1,000,000, 1,300,000, 2,000,000 HD-CVI/AHD /TVI signal can also be transmitted to other technical standards HD-CVI /AHD/TVI same camera signal.

Feature

  • Non-compression coding technology
  • though fiber optical cable
  • DC 5V2Apower supply
  • Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
  • Through LED indicators to inform its functional mode
  • Industrial wide range of operational temperature
  • Plug and play, simple installation.
  • support OEM/ODM
  • High quantification level of 8BIT and 10BIT
  • Available in standalone, module, and rack
  • CE,FCC and RoHs certificates.
  • three year warranty

Ordering information

Video channels 1 channel
Video bandwidth 8 MHz
Automatic compatible video system PAL, NTSC, SECAM
Video input / output impedance 75 Ω (unbalance)
Distance 0-20KM
Power <5W
Power supply DV5V 2A
Video connector BNC
Fiber-optic Specification

F/O connector: FC/ST/SC

TX: Power: -5 ~ -0dBm Sensitivity: ≤-34dBm

RX: Power:-5 ~ -0dBm Sensitivity: ≤-34dBm

Transmission Distance: 60KM (single mode)

Operating Wavelength: TX1310/RX1550nm (Transmitter)

TX1550/RX1310nm (Receiver)
Specification of custom-made options
Data

Connector: Terminal Blocks

Encoded type: RS485 / RS422 / RS232 / Manchester

Data rate: 0 - 400Kbps

BER: ≤10-9

Applications

Hd 1080p HDCVI/TVI/AHD to Fiber Video Converter Fc Sc St Fiber Port

Shipping and packing:

Hd 1080p HDCVI/TVI/AHD to Fiber Video Converter Fc Sc St Fiber Port

* After-Sales service:

* Process of replacement:


1. Show us the defective products via picture, video
2. Comfirm the quantity
3. We will verify it and find the root case to solve it out

4. New replacements will be offered together with your next order

Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China

Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03

Company Information

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore, Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
