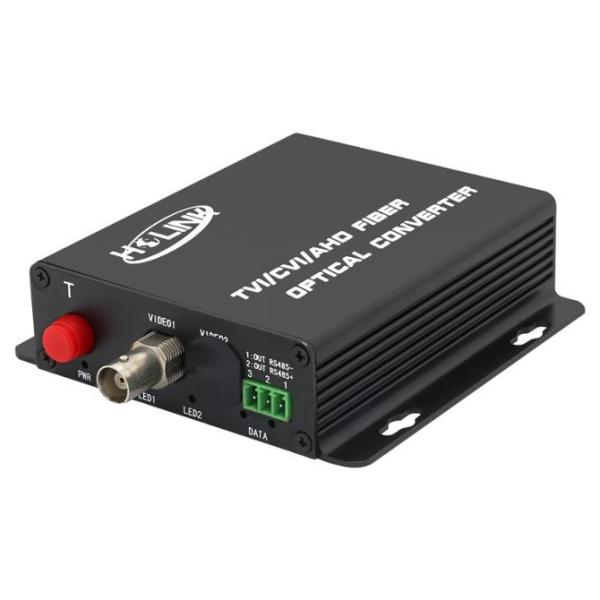

HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted
HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted
HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted
HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted
Specifications
Brand Name :
Ho-Link
Model Number :
H-CVI-T/RF
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
50 Pairs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000pcs per month
Delivery Time :
1-3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Video input :
1 volt pk-pk (75 ohms)
Bit Resolution :
8-Bit Digital Transmission
Fiber Connector :
FC or ST or SC
Distance :
10km~80km (Optional)
Input level :
>500mVp-p
self-adaption cable equilibrium :
1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m
Input/Output Impedance :
75 Ω
Description

HDCVI High performance video converter single channel for PTZ Controling optical converter BNC Digital Video Converter


Specifications:

FeatureDescription
OpticalFiber TypeMulti-mode fiber or Single mode fiber
Fiber ConnectorFC or ST or SC
Distance0km~80km (Optional)
Wavelength

Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.

HDCVI(Transmitting)Input level>500mVp-p
self-adaption cable equilibrium

1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m

Input/Output Impedance75 Ω
Physical Interface1~64 channels BNC connector
HDCVI(Receiving)Output level1Vp-p
Input/Output Impedance75Ω
Physical Interface1~64 channels BNC connector
DataTransmission MediaCoaxial cable
Baud Rate1200～9600bit/s
Bit Error Rate≦10
Operation ModeHalf-Duplex
IndicatorsLOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)


＞100 000 hours

GeneralEPSDC5V
Power Consumption≦5W
Operation Temperature—40℃～75℃
Operation Humidity10%～90%
Atmospheric Pressure86kpa~106kpa
Mounting MethodWall mounted




Description:

Ø Non-compression coding technology

Ø Automatically identify formats of input videos

Ø Support transmission of 1 channels AHD signal and controlling data simultaneously though coaxial cable

Ø DC 5V power supply

Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc

Ø Through LED indicators to inform its functional mode

Ø Industrial wide range of operational temperature

Ø Plug and play, simple installation




Applications:

  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)



HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted




Order Information:
Part No.Description
H-TVI/CVI/AHD-1V-T/RF1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data



HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted


We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
