AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera
AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera
AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera
AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera
AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera
AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera
AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera
AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera
Specifications
Brand Name :
Ho-Link
Model Number :
H-CVI-4V1D-T/RF
Certification :
CE/FCC/RoHs
Place of Origin :
China
MOQ :
50 Pairs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
3,000Pairs Per Month
Delivery Time :
1-5 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Application :
Analog BNC HD Cameras over Fiber
Resolution :
1080P,960P,720P
Color :
Black(optional)
Data Control Port :
Half-Duplex RS485
Mean time between failures(MTBF) :
>100 000 hours
Power Consumption :
≤ 5W
Video :
4BNC
Power :
12V
Video Systems :
PAL, NTSC, SECAM
Description

4Chs CVI Video to Fiber Optic Converter

Picture Show:

AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera

Introduction:

HDCVI TO Fiber video Converter can simultaneously transmit 8 channels HDCVI and 1CH reverse RS485 over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.In addition,ethernet/telephone/audio/contact closure can be added when you need.It support Dahua and other brand CCTV CVI cameras.

Key Features:

  1. Support Point-to-Point or Daisy-Chain connection
  2. Uncompressed Digital Composite Video over one fiber
  3. Compatible with all PAL, NTSC,SECAM Video Systems
  4. Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
  5. Single-Mode Fiber Support for Distances up to 100 km
  6. LED Status Provide Rapid Indication of Operating Parameters
  7. No EMI or RFI and no ground loops
  8. Support Coarse Wavelength Division Multiplexing (CWDM)
  9. Stand alone
  10. Produce according to customer's specifications,providing OEM

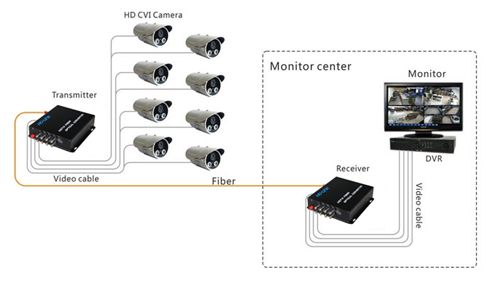

Application picture:

AHD CVI TVI Fiber optical converter, 4-CH 1080P HD Video Optical with reverse RS485 data For CCTV PTZ Camera

Specifications:

Optical

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multi mode,62.5/125u multi mode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC/ST/SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)

Video

Number of Channels 1,2,4,16
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Installation Wall mount
MTBF ≥ 100000Hours

Company Information:

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China.We manufacture full range fiber optic transmission products , from Media converter, Video converter(TVI/CVI/AHD/HDMI/VGA/TVI/SDI), to SFP Optical transceiver. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Welcome to source high quality products at competitive prices from us.
