Specifications
Brand Name :
WEIMAN/MASTION
Model Number :
ML525
Certification :
EPA CE
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P
Delivery Time :
7 working days
Packaging Details :
Pallet box with iron .or 20GP/40GP
Power :
25HP
Color :
Yellow or accept OEM
Engine :
Kubota
Description

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

Factory showing

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

1: Specially customized main valve, generation combination, diversion function, boom floating function, mechanical operation is reliable, easy to repair and maintain.

2: Using the American PERMCO high-pressure gear pump, the flow can be combined and divided through the special main valve, and the system pressure is 21Mpa.

3: The US DANFOSS low-speed but torque wheel drive motor is adopted to strengthen the self-rescue function of the machine in muddy working conditions.

4: Equipped with two sets of assistive device control valves, it is convenient to expand auxiliary devices, and the flow rate can be adjusted.

5: The flow rate of auxiliary equipment can be adjusted between 0-45L/min

6: Adopt construction machinery testing methods and conduct strict thermal balance tests to ensure continuous, safe and reliable operation of the machine when the environment is 35°C.

7: Ergonomic optimization design is adopted, the climbing ability is calibrated at 16°, and the test test is 22°. The center of gravity of the whole machine is low, and the slope operation is safe and reliable.

8: Two sets of auxiliary equipment oil circuit and unloading circuit are equipped as standard, and more dual-function auxiliary equipment can be expanded without additional cost for auxiliary equipment control valve group.

Description

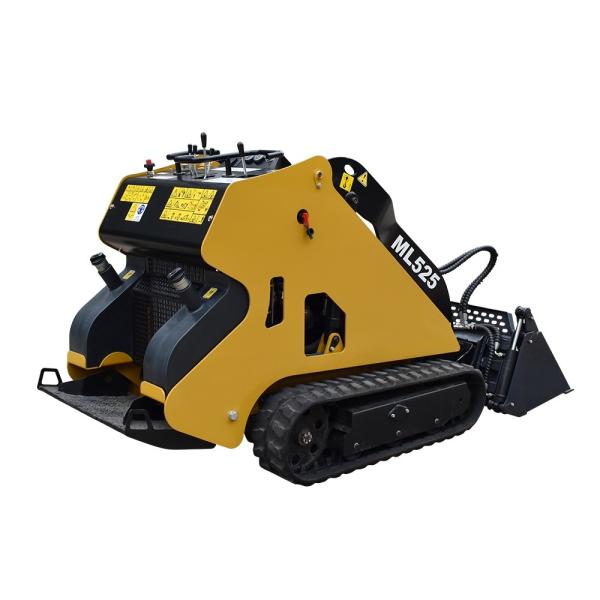

With a powerful Perkins diesel engine, the new ML525 model is a "little giant" that maneuvers easily in tight places and handles tough construction, agriculture and landscaping challenges with ease.

Machine

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

A. Angle of Departure ................................. 20° K. Length with Standard Bucket ......................... 2619 mm
B. Carry Position ........................................ 176 mm L. Operating Height ....................................... 2626 mm
C. DumpAngle @ Maximum Height ............ 37° M. Rollback @carryPosition........................... 21°
D. Dump Height with Standard Bucket ........ 1287 mm N. Rollback Fully Raised
E. Dump Reach @ Maximum Height ........... 833 m @ Maximum Height................................... 94°
F. Ground Clearance .................................. 141mm O. Ground Contact Length ............................. 918 mm
G. Ground Clearance-under platform ........... 171 mm P. Turning Radius with Standard Bucket ....... 1572 mm
H. Height to Bucket Hinge Pin .................... 1869 mm Q. Width ........................................................ 1103 mm
I. Height ...................................................... 1284 mm R. Wheel Tread (over tracks) .......................... 903 mm
J. Length without Attachment ............................ 1959 mm S. Width with 36" Bucket .................................. 1250 mm
Operating Capacity (35%) ........................................................................................................................................ 291 kg
Operating Capacity (50%) ..................................................................................................................................416 kg
Tipping Capacity.................................................................................................................................................832 kg
Weight (no attachment).....................................................................................................................................1060 kg
TravelSpeed .................................................................................................................................................... 5.6 km/h

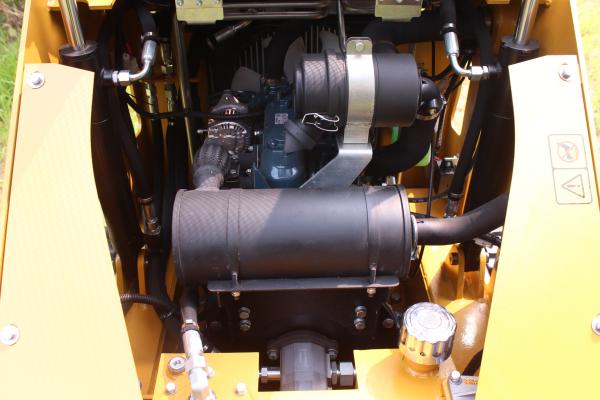

Make/Model ................................... Kubota // D1105-E4B-CSR-1
Fuel/Cooling ................................... Diesel/Liquid
Horsepower (SAE Gross) ............... 18.5kW
Maximum Governed RPM .............. 3000 RPM
Torque @ 2200 RPM (SAE Net) ..... 71.5 Nm
Number of Cylinders............................3
Displacement ................................. 1.123L
Bore/Stroke .................................... 78mm/78.4 mm
Fuel Consumption .......................... 6.1 L/h
Lubrication ..................................... Gear Pump Pressure
Crankcase Ventilation .................... Closed
Air Cleaner ..................................... Dry replaceable cartridge with safety element
Ignition ........................................... Diesel-Compression
Engine Coolant............................... Propylene glycol/water mix (53%-47%)
with freeze protection to -37°C
StartingAid .................................... Glow plugs
Alternator ....................................... Belt Driven; 40 amps; Open
Battery ........................................... 12 V；45Ah
Starter ............................................ 12 volt；Gear Reduction Type; 1.4 kW
HYDRAULIC SYSTEM
Pump Type ............................................... Engine driven, TwoGear type
Pump Capacity ........................................ 53.4L/min@ 3000 RPM
System Relief @ Quick Couplers ............. 210 Bar
Hydraulic Filter ......................................... Full flow replaceable, 10 micron synthetic media element
Hydraulic Cylinders .................................. Double-acting
Main Control Valve ................................... 5-Spool, open center series parallel configuration
Attachment Control Valve…………………. 2-Spool, open center series parallel configuration
Bore Diameter
Lift Cylinder (2) .................................. 45mm
Tilt Cylinder (1) .................................. 55mm
Rod Diameter
Lift Cylinder (2) .................................. 25 mmMATTSON ML525 Mini Track Loader
Tilt Cylinder (1) .................................. 30 mm
Stroke
Lift Cylinder (2) .................................. 295 mm
Tilt Cylinder (1) .................................. 280mm
Hydraulic Function Times
Raise LiftArms .................................. 3.5 Seconds
Lower LiftArms .................................. 2.4 Seconds
Bucket Dump..................................... 2.5 Seconds
Bucket Rollback ................................. 1.8 Seconds

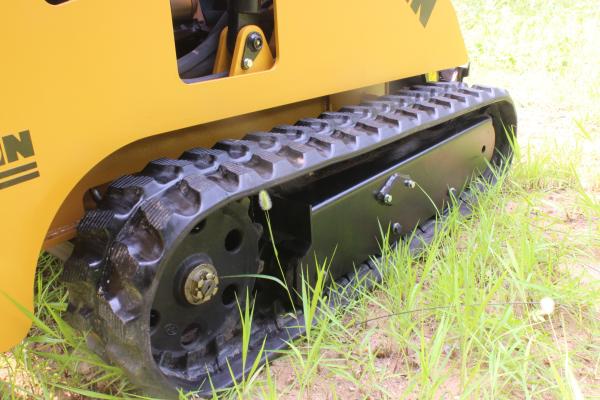

DRIVE SYSTEM
Main Drive .............. Fully hydraulic rubber track drive
Transmission.......... Direct drive of hydraulic motor to main undercarriage drive sprocket
Tracks .................... 200 mm wide
Rollers……………..5 Each side
Pressure ………….. 25.3 kPa
CAPACITIES
Cooling System ..................................... 5.2 L
Fuel Tank ................................................ 35 L
Engine Oil with Filter .............................. 5.1L
Hydraulic Reservoir ............................ …34 L
Hydraulic System ............................... ….40 L
CONTROLS
Vehicle Steering ................... Direction and speed controlled by two handle
Lift & Tilt ........................ Controlled by one hand lever
FrontAuxiliary (Std.) ...... Controlled by one hand lever
Auxiliary Pressure Release .. Fore and aft movement of hand lever after engine has been shut off.
Engine ................................. Hand lever throttle: Key-type starter switch and shutdown
StartingAid .......................... Glow Plugs – Activated by key switch
INSTRUMENTATION
The mini track loader conditions are monitored by a combination of gauges and warning lights in the operator’s line of
sight that monitor the following functions. The system shall alert the operator of
monitored loader malfunctions by way of an visual warning lights.
Gauges
Warning Lights
Hourmeter
Engine Oil Pressure
Fuel
Engine Coolant Temperature

Configurations

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

Attachments options

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

Packing by box ;LCL shipping or packing in container.

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market

China mini skid steer ML525 with Japan 25HP Diesel engine EPA5 FOR USA market
