Specifications
Place of Origin :
Shandong,China
Brand Name :
STR
Certification :
ISO 9002
Model Number :
SNF80A
MOQ :
1 set
Price :
USD 500~1000
Packaging Details :
Standard Export Package,1210*450*665 mm
Delivery Time :
15 working days
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per year
Production Capacity :
400-550 kg/h
Power :
11-13 kw
Package Dimension(L*W*H) :
145*520*925
After-sales Service Provided :
Engineers for service overseas is available
Weight :
319 kg
Remark :
Easily damaged parts will be listed when delivery and will be supplied with a production cost later
Places of use :
factory/home
Description

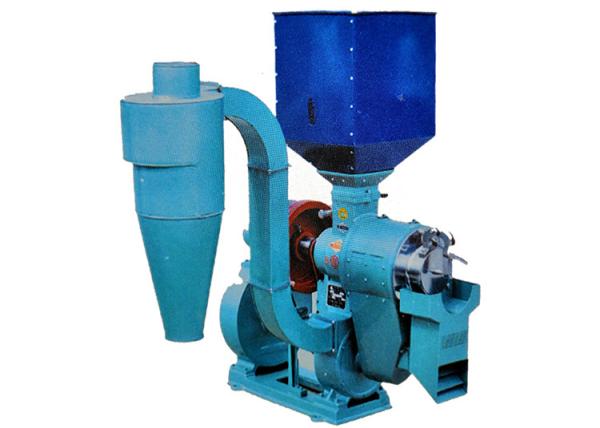

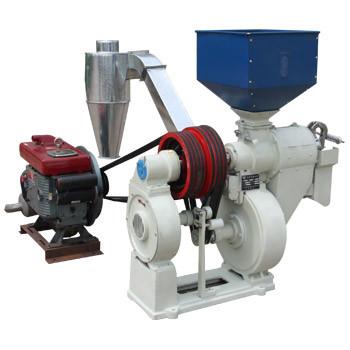

Factory direct sales STR SNF80 auto commercial paddy processing milling polisher rice mill machine
SNF80 double blower rice polishing machine is used to process rice paddy directly into white rice,or process brown rice into white rice,and crush husk into fine bran for animal feed at the same time.

Product Features

1. A crushing device is added in the rice mill, achieve multi-function in one machine. 2.The surface of white rice is clean and shining with less broken rate. 3.The bran content in white rice is small. 4. The crushed fine bran can be used as feed for animals directly. 5.Compact structure, convenient operation and maintenance; safe and reliable running.
Working Principle
Grain enters the machine from the feed barrel, and it advances along the axial direction under the conveying of the spiral drum. Due to the resistance of the exit resistance door, the pressure between the grains is generated, and under the action of the straight roller rice knife, they grind each other to peel. After the rice grains reach the required precision, they are discharged from the rice outlet. At the same time, the high-pressure wind generated by the blower is sprayed into the rice milling chamber through the inner hole of the main shaft from the straight roller drape, which strengthens the whitening effect of the rice and takes away some heat generated in the whitening process.The bran is discharged through the rice sieve with the high-pressure wind, and the rice (containing part of bran) flows into the rice hopper from the outlet flange. The crushing fan sucks bran into the crushing chamber from the bran and rice hopper. Under the impact of flakes, the bran is further crushed into fine bran, which is discharged through the sieve and collected by the bran collector. In the end, the rice with required precision can be received from the rice hopper, and the bran which meets the requirements is received by the bran collector.
Details Images
Product Paramenters
Type
Weight
(kg)
Size
(mm)
Capacity(paddy)
(kg/h)
Power
(kw)
NPF60
220
500-600
11
SNF80
320
1210*450*665
400-500
11~13
SNF115
395
1130*560*840
700-850
15-18.5
SNF150
500
1270*640*993
900-1200
22
SN200A
1800-2100
18.5-22
850
980
SN300A
2800-3500
37-45
800
1100
