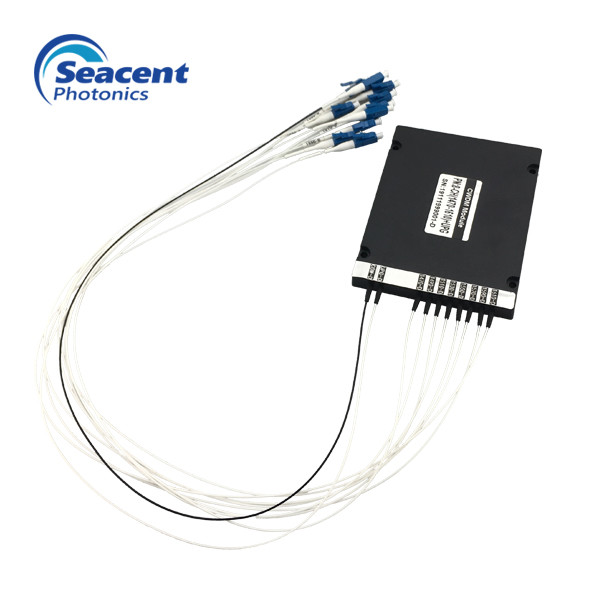

Dense Wavelength Division Multiplexing 1 * 8 100G DWDM Mux Demux
Dense Wavelength Division Multiplexing 1 * 8 100G DWDM Mux Demux
Dense Wavelength Division Multiplexing 1 * 8 100G DWDM Mux Demux
Dense Wavelength Division Multiplexing 1 * 8 100G DWDM Mux Demux
Dense Wavelength Division Multiplexing 1 * 8 100G DWDM Mux Demux
Dense Wavelength Division Multiplexing 1 * 8 100G DWDM Mux Demux
Specifications
Brand Name :
Seacent
Model Number :
DWDM cassette type 1 * 8 100G
Certification :
ISO9001,RoHS
Place of Origin :
Guangdong,China
MOQ :
1pcs
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Product name :
DWDM MUX / DEMUX / OMA
Operating temperature :
-5 to 75C
Center wavelength :
ITU-Grid ( 100GHz ) nm
Opterating temperature (℃) :
-20~+75
Storage temperature :
-40 to 85C
Description

Dense Wavelength Division Multiplexing (DWDM)

DWDM MUX DEMUXE Description:
Dense wavelength division multiplexing (DWDM) is a technology that puts together -- multiplexes -- data signals from different sources so they can share a single optical fiber pair while maintaining complete separation of the data streams. Each signal is carried on a separate light wavelength; the dense part of DWDM refers to the fact that more than 80 separate wavelengths, each about 0.8 of a nanometer (nm) wide, can share a single optical fiber.
  • Multiplexing and Demultiplexing in a Unidirectional System
Dense Wavelength Division Multiplexing 1 * 8 100G DWDM Mux Demux
  • Multiplexing and Demultiplexing in a Bidirectional System
Dense Wavelength Division Multiplexing 1 * 8 100G DWDM Mux Demux
DWDM MUX DEMUX Features:
High reliability and stability
Low insertion loss
High isolation
Low PDL
Compact design
Good channel-to-channel consistency
DWDM MUX DEMUX Application:
CWDM system
PON network
Cable chain
DWDM MUX DEMUX Technical Parameters
Item Parameter
Center wavelength (nm) ITUGrid
Product Features Mux orDemux or Mux&Demux
Channel pitch (nm) 100G 200G
Channel passband (@ -0.5db bandwidth (nm) >0.3 >0.5
Number of channels (ch) 4 8 16
Insertion loss (dB) ≤1.8 ≤3.0 ≤5.0
Channel flatness (dB) ≤0.5 ≤0.5 ≤0.5
Isolation (dB) adjacent >30 >30 >30
Isolation (dB) non-adjacent >45 >45 >45
Polarization-dependent loss (dB) <0.2
Polarization Mode Dispersion (PS) <0.1
Directivity (dB) >50
Return loss (dB) >45
Connector type LC/APC or customer specified
Maximum power (mW) 500
Working temperature (℃) -20~70
Storage temperature (℃) -40~85
Package type (mm) LGX, cassette, rack or customer specified
Package size (mm) LGX:201x256x44 or 155x100x29
Box:100x80x10 or 120x80x18 or 141x120x28
Rack:1U: 484x260x44 or 2U: 482x260x88

Note: The above parameters do not include connectors
