Compact Design Rack Mount PLC Splitter For Passive Optical Network
Compact Design Rack Mount PLC Splitter For Passive Optical Network
Compact Design Rack Mount PLC Splitter For Passive Optical Network
Compact Design Rack Mount PLC Splitter For Passive Optical Network
Compact Design Rack Mount PLC Splitter For Passive Optical Network
Compact Design Rack Mount PLC Splitter For Passive Optical Network
Specifications
Brand Name :
Seacent
Model Number :
1x32 rack mount PLC Splitter
Certification :
ISO9001, ROHS
Place of Origin :
Guangdong , China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100,0000 pieces per months
Delivery Time :
5-8 work days
Product name :
Rack Mount PLC Splitter
Design :
Compact Design
Fiber type :
G657A1 or customized
Insertion loss :
17.1 dB
Uniformity :
≤0.3 dB
Return loss :
≥55dB
Operating temperature :
Passive Optical Network
Description

Compact Design Rack Mount PLC Splitter For Passive Optical Network

Rack Mount PLC Splitter description:

The planar waveguide optical splitter (PLC Splitter) is a quartz-based integrated waveguide optical power distribution device with small size, wide operating wavelength range, high reliability, good spectral uniformity, etc., especially suitable for passive optical networks. (EPON, GPON, etc.) connects the central office and terminal equipment and realizes the splitting of optical signals, providing 1XN and 2XN full range of products, and does not customize the optical splitter suitable for various occasions.

Rack Mount PLC Splitter Applification

1) FTTX Systems;

2) PON Networks;

3) CATV Links;

4) Optical Signal Distribution;

5) Fiber Data Transmission.

Rack Mount PLC Splitter features:

Compact design.

Good channel uniformity.

High stability and reliability

Certified by Telcordia GR.1209 and GR.1221.

Rack Mount PLC Splitter Technical parameters: 1XN optical splitter

Parameter 1X2 1X3 1X4 1X6 1X8 1X12 1X16 1X24 1X32
Working wavelength (nm) 1260-1650
Fiber type G657A1 or customized
Insertion loss (dB) 4.2 6.4 7.5 9.4 10.8 12.8 13.8 15.8 17.1
Uniformity (dB) ≤0.4 ≤0.5 ≤0.5 ≤0.6 ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤1.5
Polarization dependent loss (dB) ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.25 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return loss (dB) ≥55
Directionality (dB) ≥55
Fiber length (m) 1.0 or customized
Temperature stability (dB) -40℃- 85℃(≤0.5)
Working temperature °C -40℃- 85℃
Storage temperature °C -40℃- 85℃
Maximum power (nW) 1000

Technical parameters: 2XN optical splitter

Parameter 2X2 2X4 2X8 2X16 2X32
Working wavelength (nm) 1260-1650
Fiber type G657A1 or customized
Insertion loss (dB) 4.5 7.8 11.1 14.1 17.4
Uniformity (dB) ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤1.5
Polarization dependent loss (dB) ≤0.25 ≤0.25 ≤0.25 ≤0.3 ≤0.3
Return loss (dB) ≥55
Directionality (dB) ≥55
Fiber length (m) 1.0 or customized
Temperature stability (dB) -40℃- 85℃(≤0.5)
Working temperature °C -40℃- 85℃
Storage temperature °C -40℃- 85℃
Maximum power (nW) 1000

Ordering Information:

Product type Inlet and exit diameter Inlet and fiber length

Rack Chassis

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

2=0.9mm

3=2.0mm

0=0.6M

S=Customized

1=1U

2=2U

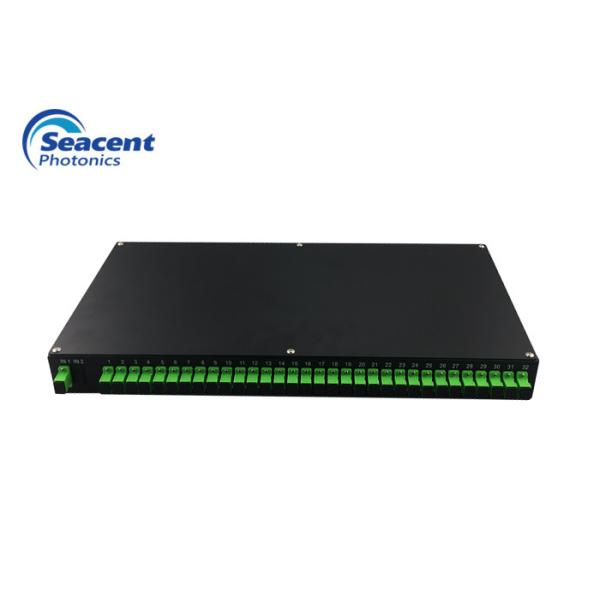

Rack Mount PLC Splitter Pictures

Compact Design Rack Mount PLC Splitter For Passive Optical Network

Detailed parameters

PLC Splitter-Rack Mount-Seacent Photonics .pdf
