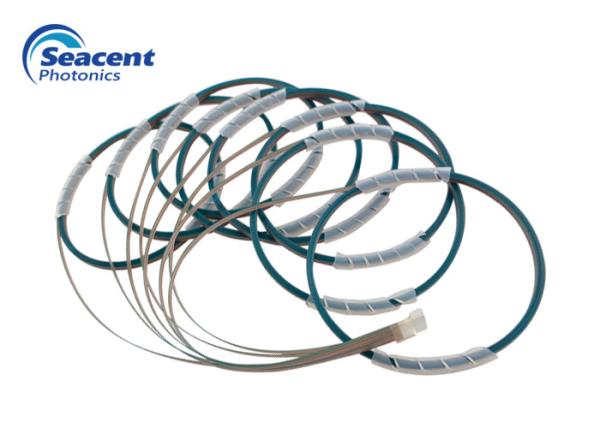

Durable 96 CH Optical Fiber Array Low Insertion Loss For PLC Splitters
Durable 96 CH Optical Fiber Array Low Insertion Loss For PLC Splitters
Durable 96 CH Optical Fiber Array Low Insertion Loss For PLC Splitters
Durable 96 CH Optical Fiber Array Low Insertion Loss For PLC Splitters
Durable 96 CH Optical Fiber Array Low Insertion Loss For PLC Splitters
Durable 96 CH Optical Fiber Array Low Insertion Loss For PLC Splitters
Durable 96 CH Optical Fiber Array Low Insertion Loss For PLC Splitters
Durable 96 CH Optical Fiber Array Low Insertion Loss For PLC Splitters
Specifications
Brand Name :
Seacent
Model Number :
Fiber Array-96CH
Certification :
ISO9001,ROHS
Place of Origin :
Guangdong,China
MOQ :
10pcs
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Color :
Blue, orange, green, brown, white, red, black, yellow, purple, pink, water green
Material :
Quartz glass, borosilicate, silicon
Polishing angle ( ° ) :
0,+8, -8 (±0.3)
Connector type :
SC/FC/LC-APC/UPC,LC,ST,FC,TOSLINK
Ferrule polish :
PC,UPC,APC
Packing :
Inner Box And Export Carton,Polybag
Application :
FTTX Network
Name :
fiber array
Description
96 CH fiber array silicon material Core distance 250, 127 / 0.7
Description:

We provide high-quality Fiber Array to meet customers' various demands with low insertion loss, high return loss, and compact dimension.

Fiber Arrays are fabricated with high precision V-groove substrate by Browave unique assembly/polish process to get an excellent accuracy of fiber core position and perfect quality of the polish surface.

Specifications:

Item Parameter
Number of channels 1CH ~ 128CH
Material Quartz glass, borosilicate, silicon
Core distance/tolerance(μm) 250, 127 / 0.7
Fiber length (m) 2.0±0.1
Polishing angle ( ° ) 0,+8, -8 (±0.3)
Polishing flatness ﹤ 5 fringes@633nm
Fiber type SMF-28e or SMF-28e XB
Operating temperature(℃) -40~85

V-groove base plate dimension table:

L W H X Y comprehensive error
type size common difference size common difference size common difference size common difference core height difference R=√ x2+y2
2CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 ＜0.1
4CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 ＜0.1
8CH 250 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 ＜0.1
8CH 127 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 ＜0.1
16CH 127 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 ＜0.1
32CH 127 10 ±0.3 5.7 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 ＜0.1
48CH 127 12 ±0.3 7.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 ＜0.1
64CH 127 12 ±0.3 9.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 ＜0.1
96CH 127 12 ±0.3 16 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 ＜0.1
128CH 127 12 ±0.3 20 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 ＜0.1

Applications:

MEM

Lens/Collimators Array

PLC Devices: PLC Splitter, AWGs

Integrated Active/Passive Components

Micro Optics Modules

Variable Optical Attenuators

Ordering Information:
Product number Fiber type Fiber length
01=1CH
02=2CH
03=4CH
04=8CH
05=12CH
06=16CH
07=24CH
08=32CH
09=48CH
10=64CH
11=96CH
12=128CH
1=G657A1
2= G657A2
3=G652D
4=G652B
0=0.5M
1=1.0M
2=1.5M
3=2.0M
4=2.5M
S=Customized

Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners
