1x64 Fiber Optic PLC Splitter Mini Module With ISO9001 Approved
1x64 Fiber Optic PLC Splitter Mini Module With ISO9001 Approved
1x64 Fiber Optic PLC Splitter Mini Module With ISO9001 Approved
1x64 Fiber Optic PLC Splitter Mini Module With ISO9001 Approved
1x64 Fiber Optic PLC Splitter Mini Module With ISO9001 Approved
1x64 Fiber Optic PLC Splitter Mini Module With ISO9001 Approved
1x64 Fiber Optic PLC Splitter Mini Module With ISO9001 Approved
1x64 Fiber Optic PLC Splitter Mini Module With ISO9001 Approved
Specifications
Brand Name :
Seacent
Model Number :
1x64 mini module
Certification :
ISO9001 , ROHS
Place of Origin :
Guangdong , China
MOQ :
1 piece
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pieces per month
Delivery Time :
5-8 work days
Product name :
Fiber Optic PLC Splitter
Connector :
SC/APC
Return loss :
≥55 dB
Insertion loss :
≤ 20.1 dB
PDL :
≤ 0.35 dB
Directionality :
≥55 dB
Description

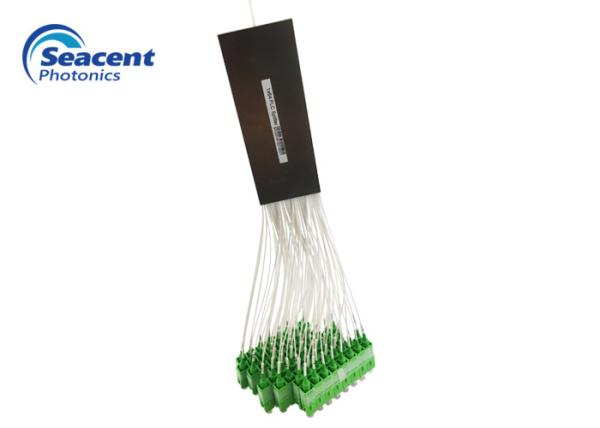

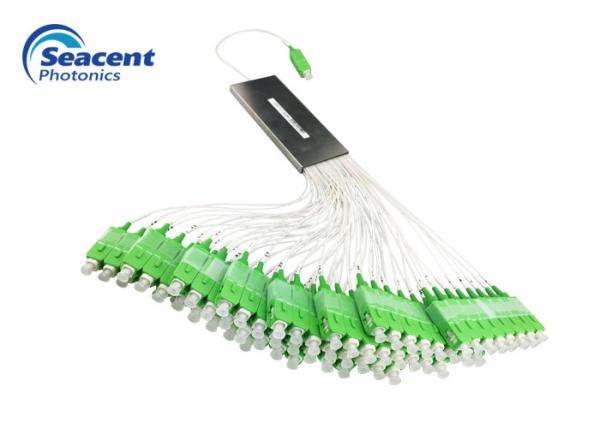

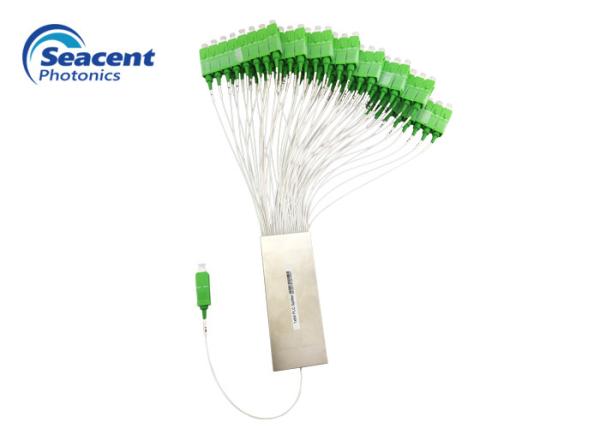

Fiber Optic PLC Splitter mini module 1x64 with SC/APC connector

Fiber optic PLC splitter is a low cost fiber distribution solution in passive optical networks. PLC splitter design is based on planar waveguide circuit technology, and the key component PLC splitter chip offers high optical performance. The splitting ratios of PLC splitters can be 1x2 to 64 or 2x2 to 64, which can meet different subscriber numbers and PON architectures in GPON, EPON, FTTX applications. Besides, the package of PLC splitter can be either small form factor or standard 19” design to fit various implementing environments.

Features:

  • Low loss
  • Stable polarization
  • Compact design
  • Good channel uniformity
  • High stability and reliability
  • Telcordia GR.1209 and GR.1221

Appliacation:

  • FTTH
  • CATV
  • Passive optical network(PON)
  • wired TV internet
  • PON-FTTX network

Specifications:

Item Parameter

IL(dB)

20.1

RL(dB)

≥55

PDL (dB)

≤0.35

Uniformity (dB)

≤1.8

Directionality (dB)

≥55

Fiber length (m)

1.0 or customized

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature

40℃- 85℃

Fiber type

G657A1 or customized

Note: The above IL is without the connector parameters.

1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.

Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

1128=1X128

2=0.9mm

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2

to 4x7x60mm

1x8

1x12

to 4x12x60 mm

1x16

1x24

to 6x20x80 mm

1x32

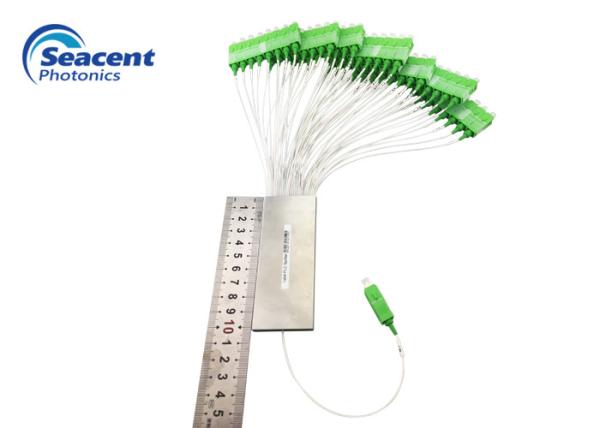

1x64 6x40x100 mm
