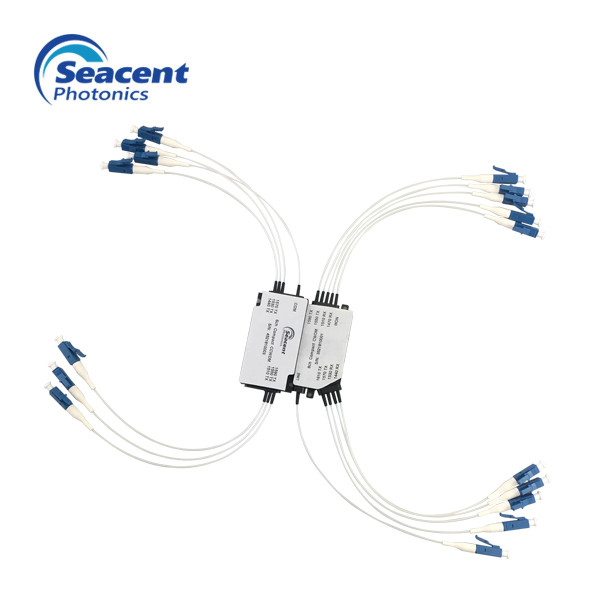

4 channels Compact CWDM 1270-1330 wavelength low insertion loss

Description:

Seacent Photonics Compact Coarse Wavelength Division Multiplexing (CCWDM) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving device

Seacent Photonics compact CWDM Modules feature free-space structure, high optical performance, small-sized package, and extremely low insertion loss. With these features, they dramatically relax the optical power budgets for your applications, allow datacom or telecom network applications to use low-cost uncooled lasers, and function in small-sized packages. Available from 4 to 18 channel configurations, the CCWDM can meet the expansion needs of any network. The module also simplifies inventory management since the same component serves as both a Mux and a Demux and can be used in the head end for outside plant. Compact and easy to install, the versatile compact CWDM module provides a simple and low-cost method for expanding bandwidth and increasing revenue from existing optical fiber.

Features:

• Low Insertion Loss
• High isolation
• Low Polarization Dependent Loss
• Compact design
• Good channel-to-channel uniformity
• Wide operating wavelength range
• High reliability and high stability
• Telcordia GR-1209-CORE-2001 compliant
• Telcordia GR-1221-CORE-1999 compliant
• RoHS-6 compliant (lead free)

Application:

• CWDM system
• Pon networks
• CATV
• Cable chain
• FTTH application

Specifications:

Remark:The above parameters do not contain connectors.
