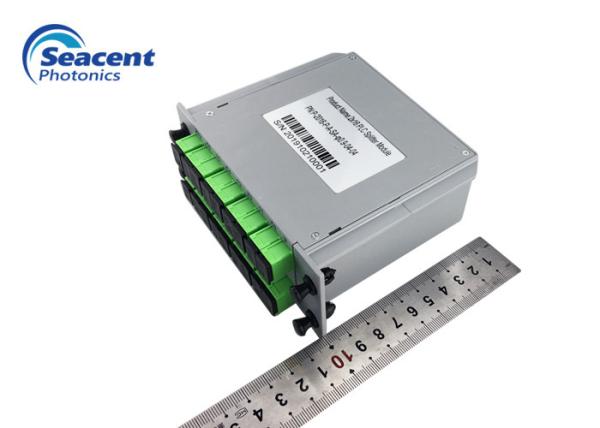

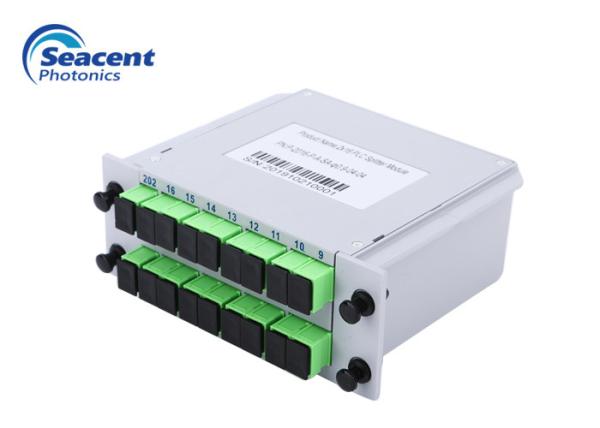

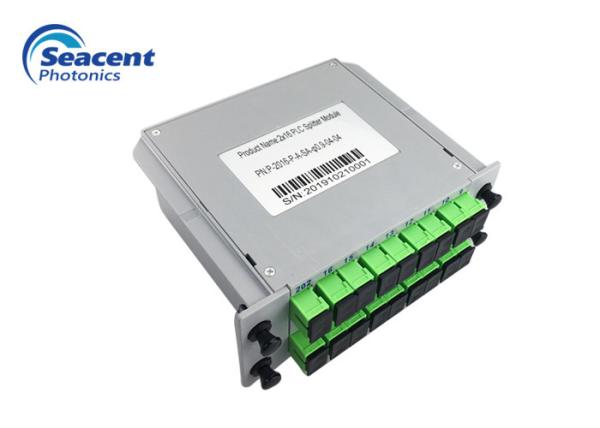

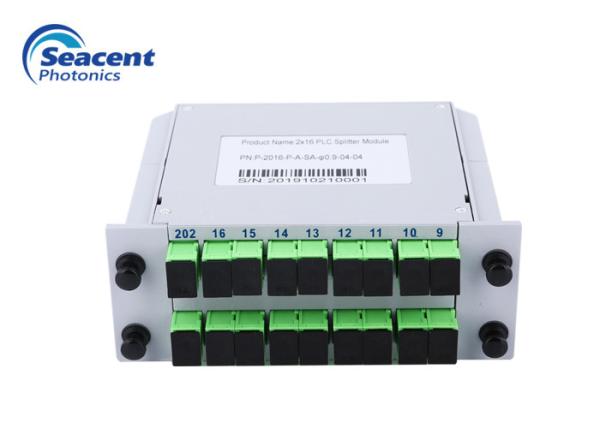

2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home
2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home
2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home
2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home
2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home
2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home
2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home
2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home
Specifications
Brand Name :
Seacent
Model Number :
2x16 insertion module
Certification :
ISO9001, ROHS
Place of Origin :
Guangdong , China
MOQ :
1 piece
Price :
USD 9.98-10.48 per piece
Payment Terms :
L/C, T/T
Supply Ability :
100,0000 pieces per months
Delivery Time :
5-8 work days
Product name :
Fiber Optic PLC Splitter
Type :
2*2/2*4/2*8/2*16/2*32/2*64
Insertion loss :
14.1 dB
Return loss :
≥55 dB
Connector :
SC/APC
Operating temperature :
-40°C - 85°C
Description

2x16 Cassette PLC Splitter Insertion Module For Fiber To The Home

Fiber Optic splitter is also called optical splitter,is one of the most important passive devices in optical fiber link,is with multiple inputs and multiple output end of the optical fiber connected devices.The fiber optic splitter by the light spligtting principle can be divided into the fused biconical taper(FBT) and planar wavegulde type(PLC).

Seacent Photonics offers 1xN and 2xN insertion type PLC Splitter, the information below is all about insertion type 2x16 0.9mm 0.5m with SC/APC connector.

Features:

  • Compact design
  • Low loss
  • Stable polarization
  • Uniform light
  • High stability and reliability
  • Telcordia GR.1209 and GR.1221

Application:

  • Fiber to the home
  • wired TV internet
  • Passive optical network (PON)
  • PON-FTTX network

Specifications:

Item Parameter

IL (dB)

14.1

Uniformity (dB)

≤1.5

Polarization dependent loss (dB)

≤0.30

RL (dB)

≥55

Directionality (dB)

≥55

Fiber length (m)

1.0 or customized

Working wavelength (nm)

1260-1650

Fiber type

G657A1 or customized

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature °C

-40℃- 85℃

Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

Insert box size

1XNor 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

2=0.9mm

0=0.5M

S=Customized

2x2

to 130x100x25 mm

2x8

2x12

to 130x100x50 mm

2x16

2x24

to 30x100x102 mm

2x32

2x64 130x100x206 mm
