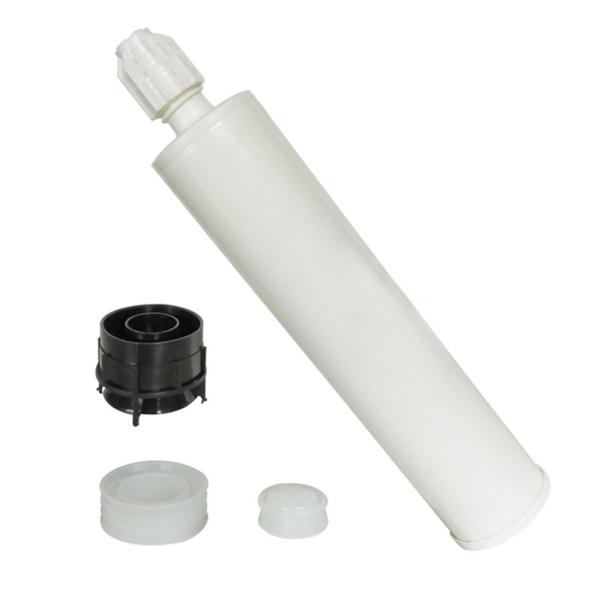

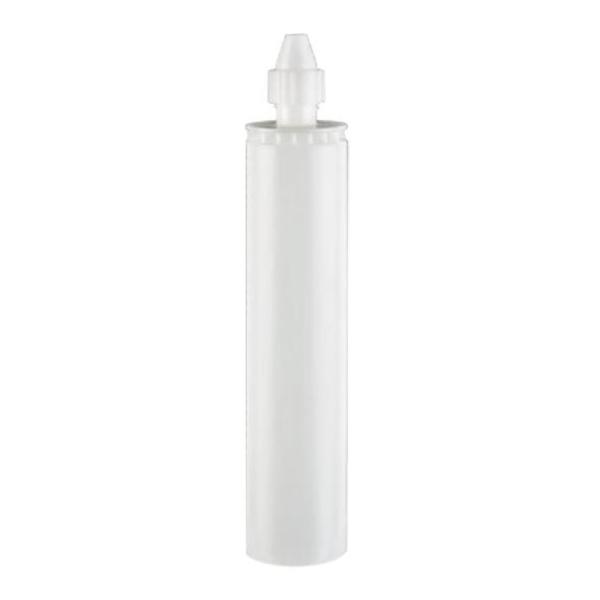

The dispenser is 300ml in 2:1 mix ratios and takes a variety of mixer nozzles. The cartridge can be easily closed and stored for further use without the material curing. It is compatible with industrial glue applicator. It is suitable for storage of two-component AB adhesive.
* The dispenser is 300ml in 2:1 mix ratios and takes a variety of mixer nozzles. The cartridge can be easily closed and stored for further use without the material curing. It is compatible with industrial glue applicator. It is suitable for storage of two-component AB adhesive.

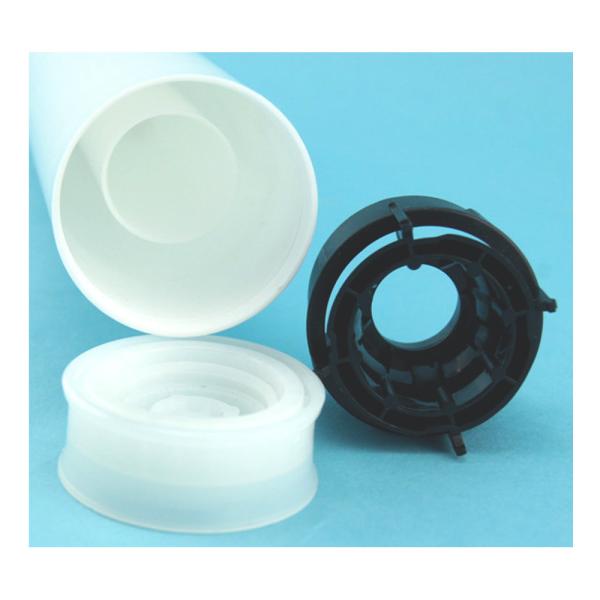

* The lightweight round bayonet interface, can be connected closely with cartridges.
Specifiation
1. PBT or PP material
2. Integral Cartridges
3. Air-released pistons
4. Minimum wall thickness more than 1.5mm
5. Part A Outer Part Diameter: Outer-50mm / Inner-47mm
Part B Inner Part Diameter: Outer-23mm / Inner-20mm
6. Total Length of Cartridge: 215mm
Packaging
Master Carton or to be customized.
QTY in a carton: 100units
Carton Size: 380*390*620mm
