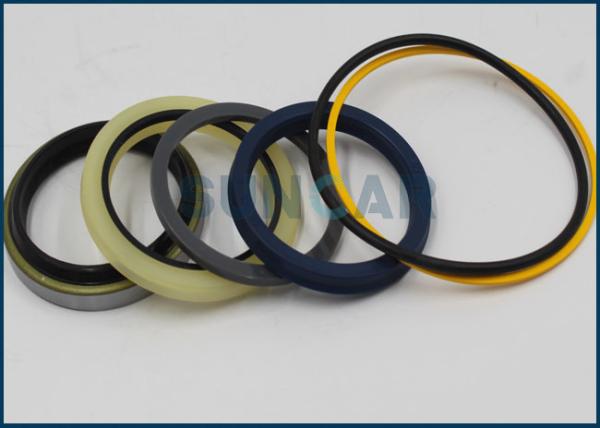

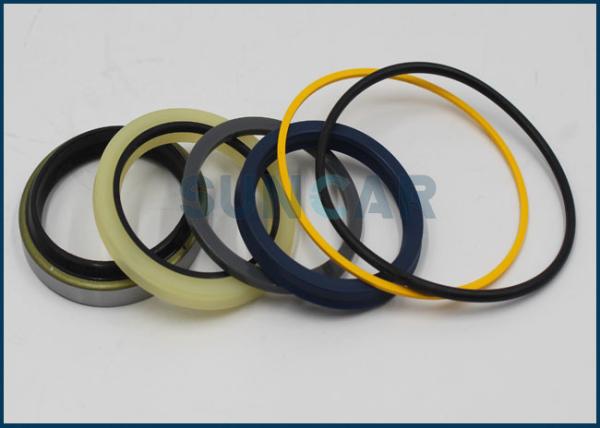

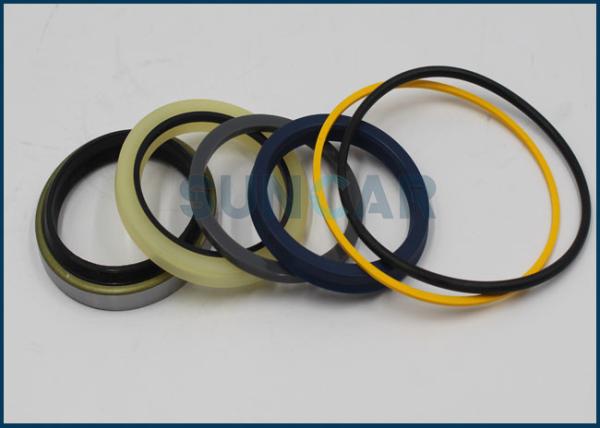

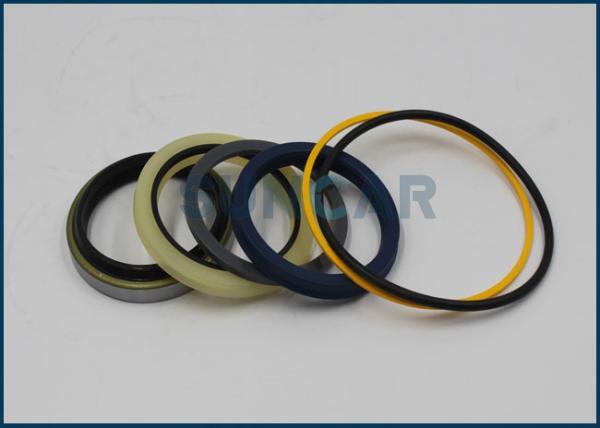

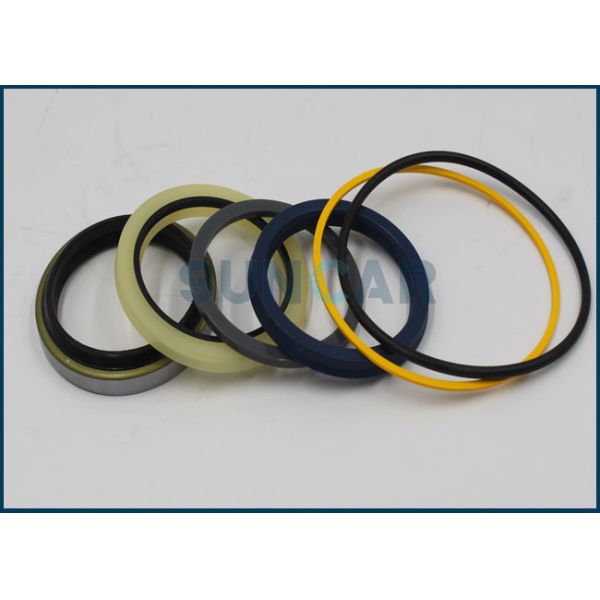

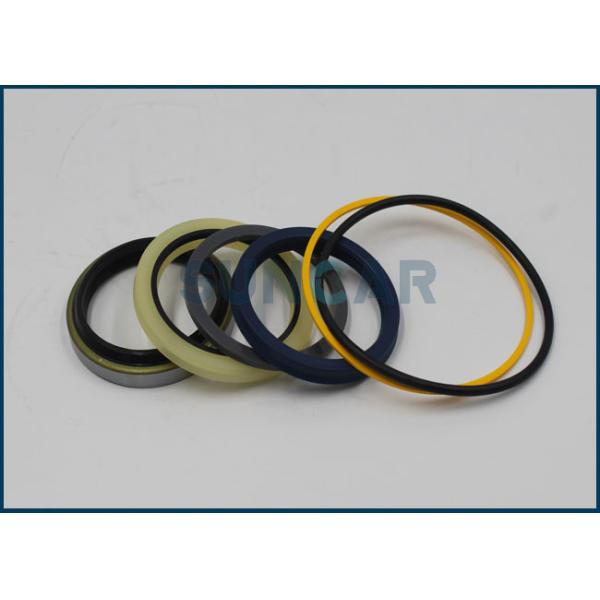

2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
Specifications
Brand Name :
SUNCAR
Model Number :
2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Sets Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Brand :
SUNCAR
Type :
Hydraulic cylinder seal kit.
Part number :
2438U1151R100
Compatible Equipment Make :
KOBELCO
Compatible brand :
C-A-T construction equipment
Key word :
Cylinder seal kit;Arm cylinder seal kit,excavator spare parts;excavator seal kit
Material :
NBR, POM, PTFE, PU, Nylon, Iron, etc
Condition :
100%new, brandnew
Fit model :
KOBELCO KOBELCO SK100 SK120 SK120LC
Description

2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC

Description: Hydraulic cylinder seal kit for KOBELCO.

Product name 2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
Brand name SUNCAR
Part number

2438U1151R100
Material NBR, POM, PTFE, PU, Nylon, Iron, etc
MOQ Accept trail order
Supply alility 2200 sets per months
Feature Sealing performance/High and low resistance
Condition 100 % new
Payment Alipay, Paypal, T/T, Western union, Bank transfer
Paking details PP bag inside,carton box outside.
Original place Guangdong province,China
Transport mode Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion ISO9001
AppliC-A-Tion Cylinder,constuction machinery works,retail
Availability In stock.
Style Hydraulic cylinder seal kit

Product Advantage:

MATERIAL TEMP ADANTAGES LIMITATION
Nitrile Rubbrt -40℃~150℃ ■Good oil and fuel resistance ■Poor weather and ozine resistance
(NBR) ■High tensile strength ■Poor resistance against polar lkuids
■Low swelling in water ■Poor resistance against clhydrocarbon
■Poor resistance against aromatic fluids
Fluorinated Rubber -20℃ ~ 280℃ ■The resistance against oil and fuels is better than other types ■Limited cold flexibliity
(FKM) ■The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons ■Limited tensile and tear strength
■Exccllcent heat resistance ■Limited wear resistance
■Exccllcent weather and ozonc resistance ■High compression set in hot water
■Exccllcent acid resistance ■Poor resistance to polaric solvents
■Low swelling in water
Polyacrylate Rubber -25℃~150℃ ■Good oil and fuels resistance ■Not usable in contact with water and water solutions
(ACM) ■Good weater and ozone resistance ■Limited cold flexibility
■Limited tensile strength and tear resistance
■Poor wear reisistance
■Poor resistance against polar and aromatic and chlorinared hydrocarhons
Silicone Rubber -60℃ ~ 225℃ ■Best heat resistance of all rubber types ■Poor tensile and tear strength
(VQM) ■Excellent low temp resistance of all rubber types ■Poor wear resistance
■Excellent weather and ozone resistance ■Sensitive to hydrolysis
■Poor resistance against aromatic oils and oxidized mineral oils
■Poor diffusion resistance

Parts of Group:

Pos. Part No Qty Parts name
. . 2438U1151F1 [1] CYLINDER ASSY, Remarks: CONSISTS OF THE FOLLOWING PARTS
1 2438U1151S1 [1] TUBE, CYLINDER
2 2438U1151S2 [1] ROD, PISTON
3 2438U309S2 [2] BUSHING
4 2445R138D6 [4] SEAL
5 2438U1151S5 [1] PISTON
6 ZD12G08000 [1] O-RING
7 ZD75G06000 [2] BACK-UP RING
8 R45P0049D9 [1] SEAL
9 R45P0051D14 [1] O-RING
10 R45T0098D4 [2] PISTON RING
11 2438U995S11 [1] NUT
12 2438U308S45 [1] LOCKING RING
13 2438U1151S13 [1] COVER, ROD
14 ZD12G13500 [1] O-RING
15 ZD12P13000 [1] O-RING
16 2438U1151S16 [1] RING, BACK UP
17 R45P0050D9 [1] RUBBER SEAL
18 45Z91D44 [1] O-RING
19 2418U130D34 [1] PACKING
20 2438U928S33 [1] SEAL
21 2438U393S12 [1] BUSHING
22 2438U718S22 [1] CLIP
23 2438U1151S23 [1] WASHER
. . 2438U1151R100 [1] REPAIR KIT, Remarks: CONSISTS OF ITEM 15-20
. . 2438U1151R200 [1] REPAIR KIT, Remarks: CONSISTS OF ITEM 6-10
. . 2438U1151R300 [1] REPAIR KIT, Remarks: CONSISTS OF ITEM 6-10, 15-20

2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC

2438U1151R100 Fork Grip Cylinder Piston Rod Seal Kit For KOBELCO SK100 SK120 SK120LC
