CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
Specifications
Brand Name :
SUNCAR
Model Number :
65 651 651B 651E 657 657B 657E 666 785 785B 785C 785D 966D 966F 966G 966G II D10N D9H D9L
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Sets Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Brand :
SUNCAR
Style :
Hydraulic seal,seal ring
Function :
Sealing oil
Name :
Piston seal
Power :
Hydraulic
Keyword :
Piston seal,CA5J7019 5J-7019 5J7019,C-A-T piston seal
Stock :
Rich stock for selling
Part number :
CA5J7019 5J-7019 5J7019
Features :
Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals
Seal shape :
Type 1
Material :
PTFE(19YF)+NBR(A402)
Fit equipment :
Articulated truck backhoe ;Backhoe loader ; Bulldozer Landfill ;Compactor load ;Haul dump ;Pipelayer Soil Compactor Track Loader Track Skidder Track-type Tractor Wheel dozer ;Wheel scraper ; Wheel skidder
Description

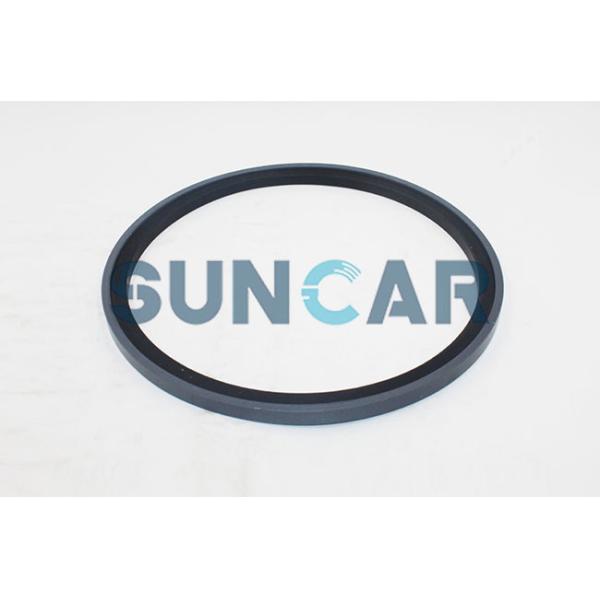

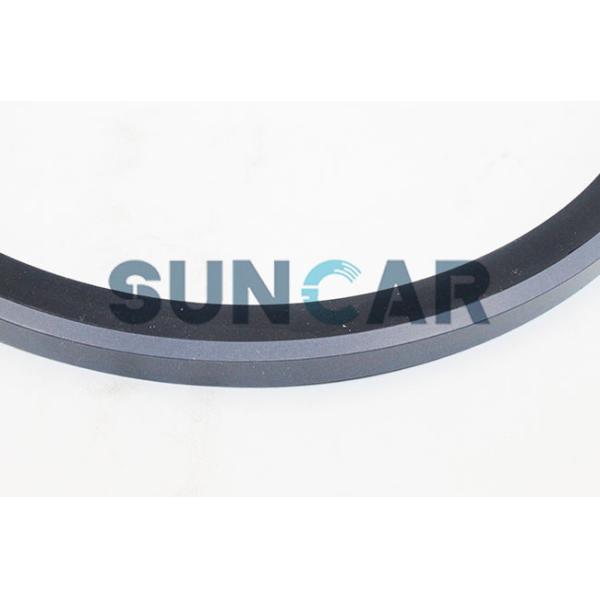

CA5J7019 5J-7019 5J7019 Piston Seal For C-A-T

Description:

Seal shape: Type 1

A two-piece seal composed of a piston ring and an expander to prevent oil from flowing between the rod end and the cover end of the cylinder.

Piston seals are usually made of . Nylon materials can be used when the pressure is greater than 3000 psi (20670 kPa). Dilators of various

shapes are made of nitrile rubber.

Product name CA5J7019 5J-7019 5J7019 Piston Seal For C-A-T
Part number CA5J7019 5J-7019 5J7019
Brand name SUNCAR
MOQ Accept trial order
Material

PTFE(19YF)
Material NBR(A402)
Features Wear-resistant and extrusion-resistant, providing excellent resistance to compression deformation of seals
Medium Hydraulic oils, mineral hydraulic oils, water and water / glycol emulsion.
Condition 100 % new,brandnew
Feature

High temperature, low temperature, high pressure, low pressure,
friction resistance
Transport mode Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion ISO9001
Market North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Working temperature High temperature resistant
Size specifiC-A-Tion Standard size
AppliC-A-Tion

Rectangular seals and sealing rings are widely used in various sealing appliC-A-Tions in C-A-T machines and engines.
Stock In rich stock
Style

Hydraulic seal ;

Compatible Models:

CHALLENGER 65

TRACK-TYPE TRACTOR D10N D9H D9L

TRUCK 785 785B 785C 785D


WHEEL LOADER 996D 966F 966G 966GII

WHEEL SCRAPER 651 651B 651E 657 657B 657E 666

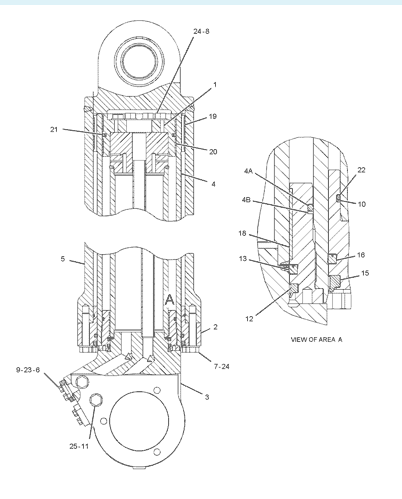

Parts for 785B truck:

Pos. Part No Qty Parts name
1 4T-4801 [1] PISTON
2 4T-5935 [1] HEAD
3 4T-5951 [1] ROD AS
4 6E-6487 [1] CYLINDER AS
6E-6485 [1] HEAD
4A. 4F-7388 C [1] SEAL-O-RING
4B. 3E-6783 C [1] RING-BACKUP
5 226-2031 [1] CYLINDER GP-HOIST
271-1440 [2] RING-RETAINING
6V-3249 [1] BEARING
6 0T-0772 [8] BOLT (7/16-14X1.5-IN)
7 1D-3848 [16] BOLT (7/8-14X4.25-IN)
8 1D-4628 [8] BOLT (7/8-9X3.25-IN)
9 1P-4578 [4] FLANGE-HALF
10 1U-1626 [1] RING-BACKUP
11 3D-2824 [2] SEAL-O-RING
12 4T-4802 [1] WIPER-ROD
13 333-6479 [1] SEAL-U-CUP
15 4T-4805 [1] WIPER-ROD
16 333-6480 [1] SEAL-U-CUP
18 4T-4811 [1] RING-WEAR
19 4T-4815 [1] RING-WEAR
20 4T-5949 [2] RING-WEAR
21 5J-7019 [1] SEAL AS
22 5P-2236 [1] SEAL-O-RING
23 5P-8244 [8] WASHER-HARD (12X22.5X2.5-MM THK)
24 5P-8249 [24] WASHER-HARD (24X41.5X4-MM THK)
25 9S-4183 [2] PLUG (1-1/16-12-THD)
AVAILABLE REPAIR KIT(S):
357-3798 [1] KIT-HYD CYLINDER SEAL
(INCLUDES SEALS & RINGS)
C CHANGE FROM PREVIOUS TYPE
R REMANUFACTURED PART MAY BE AVAILABLE

CA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785BCA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785BCA5J7019 5J-7019 5J7019 Piston Seal As For C-A-T Heavy Equipment D10N D9H D9 65 651 651B 651E 657 657B 657E 666 785 785B
