Specifications
Brand Name :
SUNCAR
Model Number :
RYT Guide Ring
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Trial order accepted
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Pcs Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Material :
PTFE
Color :
Standard color
Feature :
Seal performance；Wear resistance and low friction characteristics
AppliC-A-Tion :
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage
Medium :
hydraulic oil, flame retardant liquid, water and others
Function :
Improve the service life of seals
Speed :
15m/s
Performance :
Supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage
Temperature :
-55℃ +225℃
Description

RYT Guide Ring Were Ring PTFE Wear Strip For Hydraulic Elements

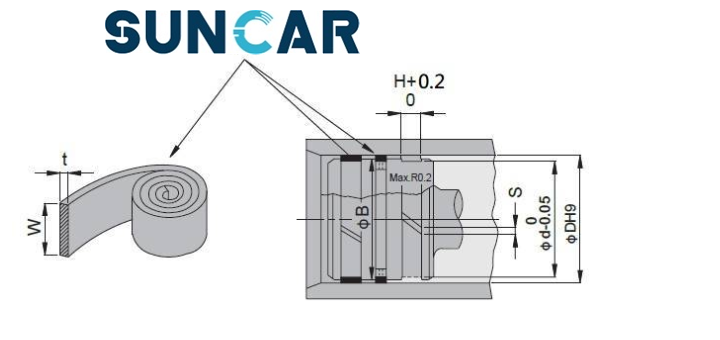

RYT Wear strip/ Guide strip


1. The sliding movements of components, i. e. A piston in s tube, risk
metal-to-metal contact that will damage and score the surfaces and
eventually cause sal damage, leakage and component damage.


2. To prevent this, piston and gland should have a brass bearing surface
or precisionguide elements such as wear rings, wear bands, guide rings
or bearrings


3. The greater the side load forces, the stronger the wear ring material
must be. Wear rings should last longer than the seals as they are the
only things stopping expensive damage to the cylinder.


MWR Size&Material:

Size Material
40*45*6 PTFE 05ZF
45*50*6 PTFE 05ZF
50*55*6 PTFE 05ZF
55*60*6 PTFE 05ZF
60*65*6 PTFE 05ZF
65*70*6 PTFE 05ZF
70*75*6 PTFE 05ZF
75*80*6 PTFE 05ZF
80*85*6 PTFE 05ZF
85*90*6 PTFE 05ZF
90*95*6 PTFE 05ZF
95*100*6 PTFE 05ZF
100*105*6 PTFE 05ZF
80*85*7.9 PTFE 05ZF
85*90*7.9 PTFE 05ZF
90*95*7.9 PTFE 05ZF
95*100*7.9 PTFE 05ZF
100*105*7.9 PTFE 05ZF
105*110*7.9 PTFE 05ZF
110*115*7.9 PTFE 05ZF
120*125*7.9 PTFE 05ZF
125*130*7.9 PTFE 05ZF
130*135*7.9 PTFE 05ZF
135*140*7.9 PTFE 05ZF
35*40*9.5 PTFE 05ZF
40*50*9.5 PTFE 05ZF
45*50*9.5 PTFE 05ZF
50*55*9.5 PTFE 05ZF
55*60*9.5 PTFE 05ZF
58*63*9.5 PTFE 05ZF
60*65*9.5 PTFE 05ZF
65*70*9.5 PTFE 05ZF
70*75*9.5 PTFE 05ZF
75*80*9.5 PTFE 05ZF
80*85*9.5 PTFE 05ZF
85*90*9.5 PTFE 05ZF
90*95*9.5 PTFE 05ZF
95*100*9.5 PTFE 05ZF
100*105*9.5 PTFE 05ZF
105*110*9.5 PTFE 05ZF
110*115*9.5 PTFE 05ZF
115*120*9.5 PTFE 05ZF
120*125*9.5 PTFE 05ZF
125*130*9.5 PTFE 05ZF
130*135*9.5 PTFE 05ZF
135*140*9.5 PTFE 05ZF
140*145*9.5 PTFE 05ZF
145*150*9.5 PTFE 05ZF
150*155*9.5 PTFE 05ZF
155*160*9.5 PTFE 05ZF
160*165*9.5 PTFE 05ZF
40*45*15 PTFE 05ZF
45*50*15 PTFE 05ZF
50*55*15 PTFE 05ZF
55*60*15 PTFE 05ZF
60*65*15 PTFE 05ZF
65*70*15 PTFE 05ZF
70*75*15 PTFE 05ZF
75*80*15 PTFE 05ZF
80*85*15 PTFE 05ZF
85*90*15 PTFE 05ZF
90*95*15 PTFE 05ZF
95*100*15 PTFE 05ZF
100*105*15 PTFE 05ZF
105*110*15 PTFE 05ZF
110*115*15 PTFE 05ZF
115*120*15 PTFE 05ZF
120*125*15 PTFE 05ZF
125*130*15 PTFE 05ZF
130*135*15 PTFE 05ZF
135*140*15 PTFE 05ZF
140*145*15 PTFE 05ZF
145*150*15 PTFE 05ZF
150*155*15 PTFE 05ZF
155*160*15 PTFE 05ZF
160*165*15 PTFE 05ZF
165*170*15 PTFE 05ZF
170*175*15 PTFE 05ZF
175*180*15 PTFE 05ZF
180*185*15 PTFE 05ZF
70*75*20 PTFE 05ZF
130*135*20 PTFE 05ZF
135*140*20 PTFE 05ZF
140*145*20 PTFE 05ZF
150*155*20 PTFE 05ZF
130*135*25 PTFE 05ZF
135*140*25 PTFE 05ZF
140*145*25 PTFE 05ZF
150*155*25 PTFE 05ZF

Material Introduction:

PTFE

PTFE has high flexural strength, even in low temperatures, high electrical resistance and dielectric strength, resistance to water (owing to fluorine's high electronegativity), and low coefficient of friction. PTFE's density is also very high, at 2200 kg/m³.

Function:

The function of a hydraulic wear ring is to guide the shaft and hole sealing of a hydraulic cylinder, absorbing transverse forces. At the same time, it previents metal-to-metal contact, optimizing the performance of the sealing system.

1.Good dimensional stability,can absorb stock

2.Uniform distribution of the large radial force

3.Low coefficient of friction,good sliding performance

4.Higher load bearing capacity

5.Excellent wear resistance

6.Wipe effect

7.Easy to install

8.Long service life
