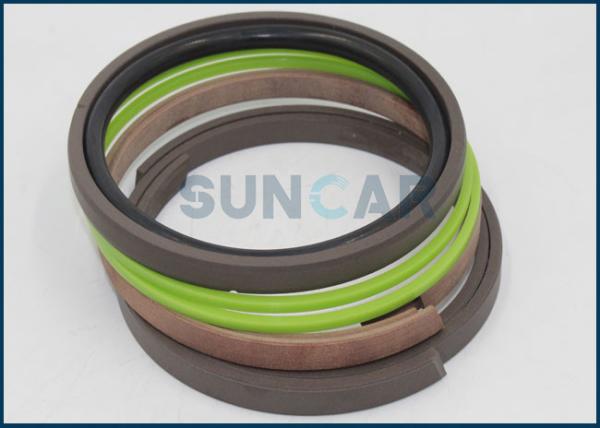

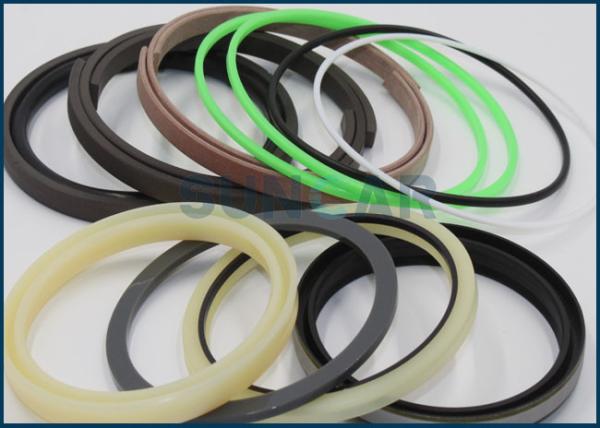

CA1261937 126-1937 1261937 Hydraulic Boom Cylinder Service Kit For C-A-T E320B
CA1261937 126-1937 1261937 Hydraulic Boom Cylinder Service Kit For C-A-T E320B
CA1261937 126-1937 1261937 Hydraulic Boom Cylinder Service Kit For C-A-T E320B
CA1261937 126-1937 1261937 Hydraulic Boom Cylinder Service Kit For C-A-T E320B
Specifications
Brand Name :
SUNCAR
Model Number :
CA1261937 126-1937 1261937 boom cylinder seal kit
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
10 Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Sets Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Material :
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Color :
Standard color
Brand :
SUNCAR
Feuture :
Oil resistance
MOQ :
10 sets
AppliC-A-Tion model :
C-A-T E320 E320L E320B E320C E320D E320D2 E320CU E323D E321
Type :
Hydraulic cylinder seal kit
Style :
Hydraulic seal kit
Part numbers :
CA1261937 126-1937 1261937
Description

CA1261937 126-1937 1261937 Hydraulic Boom Cylinder Service Kit for C-A-T E320B

Description: Boom cylinder seal kit

Product name CA1261937 126-1937 1261937 Hydraulic Boom Cylinder Service Kit for C-A-T E320B
Brand SUNCAR
Meterial PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
OEM number

CA1261937
126-1937
1261937
Feature Durability,Hard-wearing,Higher-toughness
Compatible models E320 E320L E320B E320C E320D E320D2 E320CU E323D E321
Function Sealing piston
MOQ Accept trial order
Payment terms L/C, D/A, D/P, T/T, Western Union,
Temperature -45~+100°C(According to material)
Loading Port Huangpu port,China
Compatible brand Excavator C-A-T
Shipping mode By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
After-sale service Online support
Con 100 % new
Quality Stable quality, OEM Standard, Genuine / Aftermarket

There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder..Hydraulic cylinder seal kits are used to seal the

gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working

pressure of the hydraulic system, to maintain its power.


Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.


Arm cylinder is the top one, and it's usually be called as top cylinder;


The bucket cylinder is the one that connects and controls the bucket.


Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger

excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some

particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.

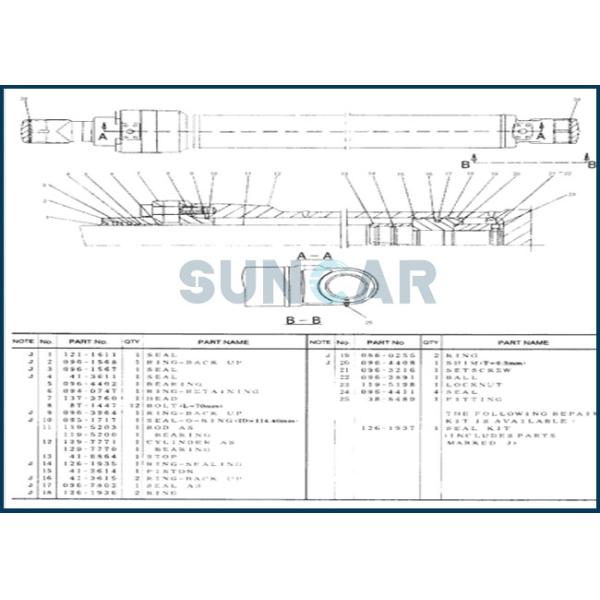

Relative Parts on Group:

Pos. Part No Qty Parts name
1 121-1611 J [1] SEAL
2 096-1568 J [1] RING-BACK UP
3 096-1567 J [1] SEAL
4 4I-3611 J [1] SEAL
5 096-4402 [1] BEARING
6 094-0747 [1] RING-RETAINING
7 137-3760 [1] HEAD
8 8T-1447 [12] BOLT (L=70mm)
9 096-3964 J [1] RING-BACK UP
10 095-1717 J [1] SEAL-O-RING (ID=114.40mm)
11 119-5203 [1] ROD AS
119-5200 [1] BEARING
12 129-7771 [1] CYLINDER AS
129-7770 [1] BEARING
13 4I-8864 [1] STOP
14 126-1935 J [1] RING-SEALING
15 4I-3614 [1] PISTON
16 4I-3615 J [2] RING-BACK UP
17 096-7803 J [1] SEAL AS
18 126-1936 J [2] RING
19 086-0255 J [2] RING
20 096-4408 J [1] SHIM (T=0.3mm)
21 096-3216 [1] SETSCREW
22 096-3891 [1] BALL
23 119-5198 [1] LOCKNUT
24 096-4411 [4] SEAL
25 3B-8489 [1] FITTING
THE FOLLOWING REPAIR KIT IS AVAILABLE:
126-1937 [1] SEAL KIT
(INCLUDES PARTS MARKED J)
