PTB Hydraulic Piston Rod Seals SKF
PTB Hydraulic Piston Rod Seals SKF
PTB Hydraulic Piston Rod Seals SKF
PTB Hydraulic Piston Rod Seals SKF
PTB Hydraulic Piston Rod Seals SKF
PTB Hydraulic Piston Rod Seals SKF
Specifications
Brand Name :
SUNCAR
Model Number :
PTB piston seal
CertifiC-A-Tion :
ISO 9001
Place of Origin :
CN
MOQ :
100 sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Pcs Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Material :
LUBRITHANE (TPU)
Color :
Standard color
MOQ :
100 pcs
Temperature range :
-50 to 120 degree;-60 to 250 degree
Availability :
In stock
Speed :
Up to 1 m/s (3.2 ft/s)
Payment :
T/T, Western Union, Paypal
Pressure :
Up to 400 bar (5 800 psi)
Description

PTB Hydraulic Rod Seals SKF

PTB rod seals

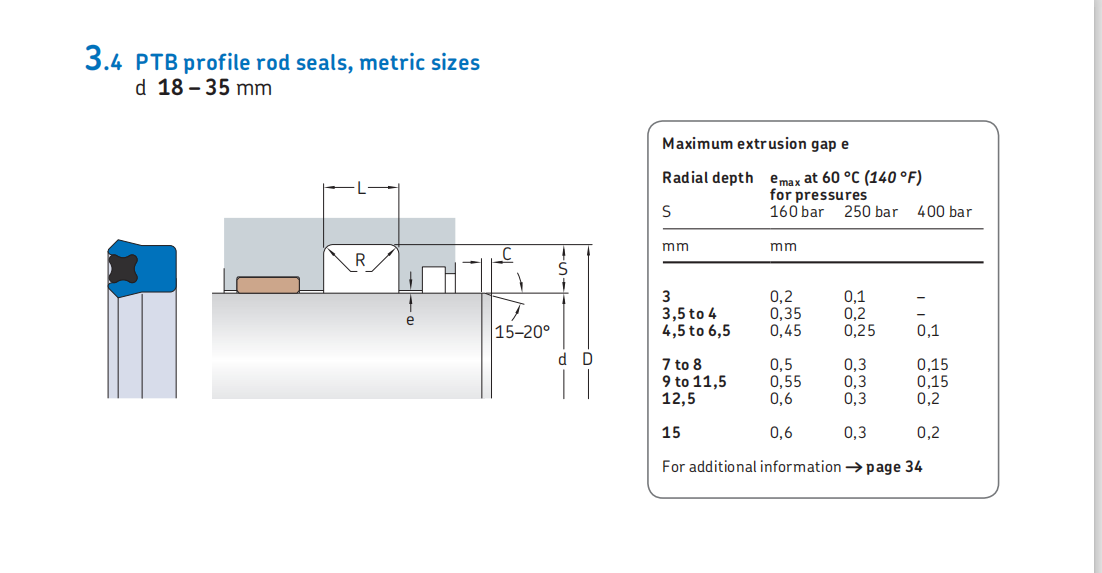

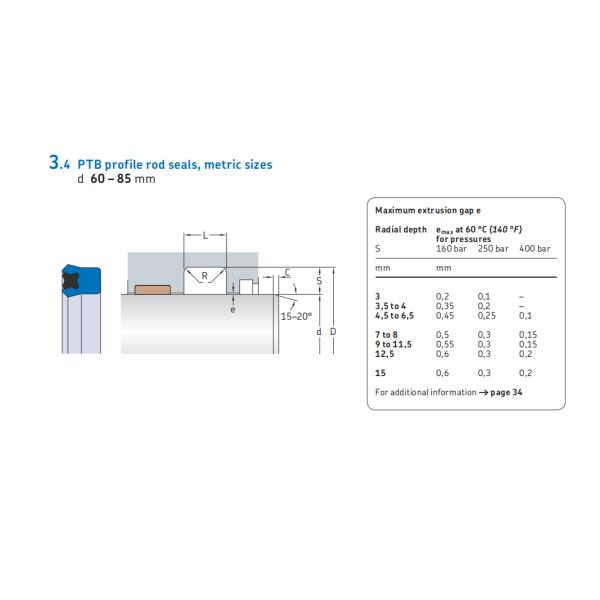

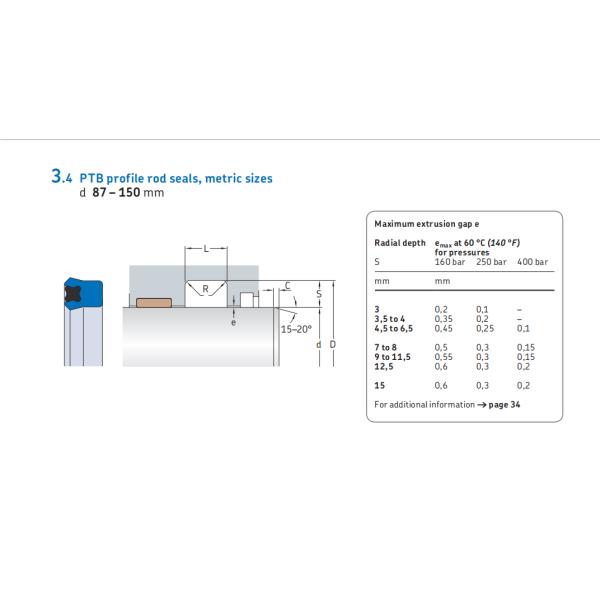

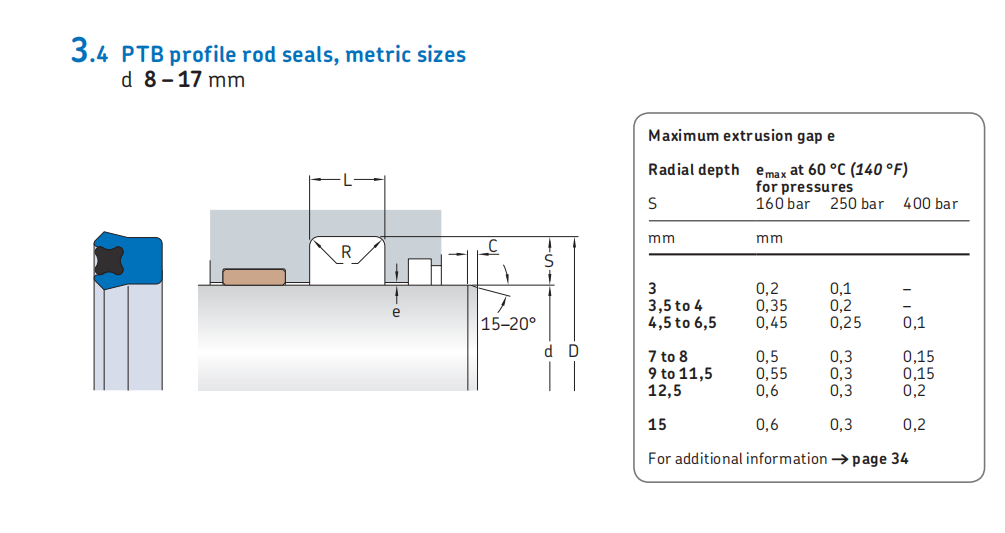

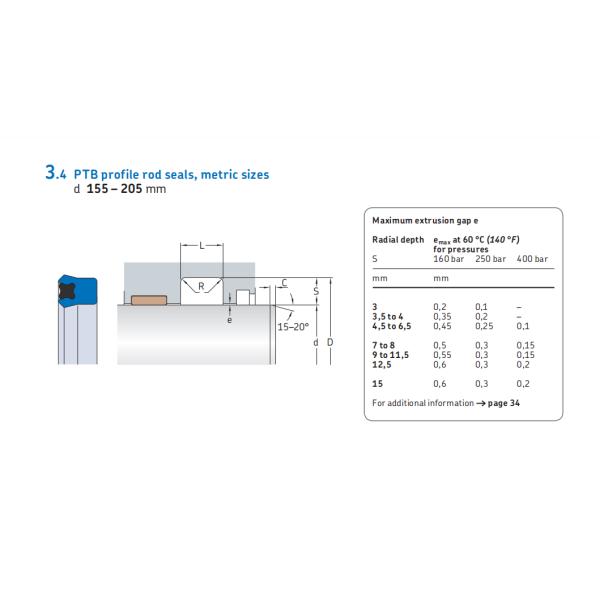

Hydraulic seals - Rod and buffer seals - PTB/SKF

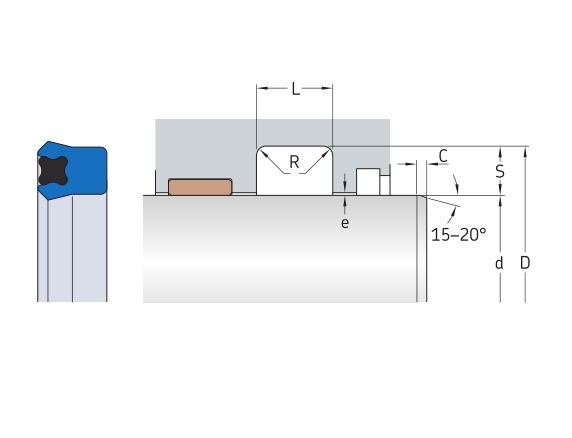

PTB seals are energized U-cup rod seals and (fig. 1) are made of LUBRITHANE (TPU). They are suitable for pressures up to 400 bar (5 800 psi) in medium duty appliC-A-Tions and are available in metric and inch sizes.

Size

20*27*6.6

25*38*11

35*43*7

45*55*11

8*16*6.3

20*28*5.5

25*40*11

35*43*8.8

45*56*7.7

9*17*6.3

20*28*6.3

28*35*5.5

35*45*6.6

45*60*9.9

9*19*8.8

20*28*7.9

28*36*5.8

35*45*8

45*60*11

10*16*6.6

20*30*6.6

28*36*8.8

35*45*8.8

45*60*12.7

10*18*6.3

20*30*7.9

28*37*8.6

35*45*11

45*63*13.2

10*18*8.8

20*30*8.8

28*38*8

35*50*9.9

45*65*13.2

10*20*8.3

20*32*6.6

28*38*8.8

35*50*11

45*70*16.5

10*20*8.8

20*32*8.8

28*38*11

35*50*2.5

48*63*11.2

11.2*19.2*5.5

20*35*11

28*40*6.6

35*51*11

48*68*13.2

12*18*6.6

20*35*3.2

28*40*11

35*55*11

50*58*8.8

12*19*5.1

20*40*3.2

28*43*11.2

35.5*45*6.6

50*60*6.6

12*20*5.5

22*29*5.1

28*48*13.2

36*44*5.8

50*60*8

12*20*7

22*30*5.5

30*37*6.6

36*44*6.6

50*60*8.8

12*22*6.6

22*30*6.3

30*38*6.3

36*44*8.8

50*60*11

12*22*8

22*30*6.6

30*38*6.9

36*46*8.8

50*60*13.2

12*22*8.8

22*30*7.7

30*38*8.8

36*46*11

50*63*8.8

12.5*22.5*8.8

22*30*8.8

30*40*6.6

36*52*11

50*63*11

13*19*4.4

22*32*6.6

30*40*7.2

37*47*8.8

50*65*9.9

14*21*5.1

22*32*8

30*40*8

37*47*5.5

50*65*11

14*22*5.5

22*32*8.8

30*40*11

40*48*5.5

50*65*12.5

14*24*6.1

22*35*8.8

30*42*9.9

40*48*6.6

50*70*11

14*24*8.8

22*35*11

30*42*11

40*48*8.8

50*70*13.2

15*22*5.5

22*40*3.2

30*45*9.9

40*50*6.6

53*63*6.6

15*25*8.8

22.4*30*5.5

30*45*11

40*50*7.2

53*63*11

16*22*4.4

22.4*32.4*8.8

30*50*11

40*50*8

55*65*6.6

16*24*5.5

23.5*31.5*5.5

31.5*41.5*6.6

40*50*8.8

55*65*11

16*26*8.8

25*33*5.5

32*40*6.3

40*50*11

55*65*13.2

17*25*11

25*33*6.1

32*40*8.3

40*53*8.8

55*68*11

18*25*5.1

25*33*6.3

32*40*8.8

40*55*9.9

55*70*9.9

18*26*5.5

25*33*8.8

32*42*8

40*55*11

55*70*13.2

18*28*8.8

25*33*11

32*42*11

40*56*11

55*75*13.2

20*26*5.5

25*35*8

32*44*6.1

40*60*13.2

55*80*6.5

32*48*11

25*35*8.8

32*44*6.9

41.7*50.7*7.8

60*68*8.8

33*40*8.8

25*35*11

32*45*11

42*55*7.7

60*70*6.6

33*43*11

25*38*8.8

32*47*11

45*53*5.8

60*70*8.8

60*71*7.7

63*73*6.6

60*80*16

45*53*8.8

60*70*9.9

60*73*11

63*73*13.2

62*72*13.2

45*55*6.6

60*70*11

60*75*9.9

63*75*9.6

63*71*8.8

45*55*8

60*70*13.2

60*75*11

63*78*9.9

60*80*13.2

63*78*11.7

82*92*11

60*75*12.1

63*78*11

72*87*9.9

63*83*13.2

84*98*13.2

120*140*16.5

100*115*13.2

75*83*6.6

63*83*16.5

85*95*6.6

125*140*9.9

100*120*13.2

75*85*6.6

64*80*13.2

85*100*9.9

125*140*16.5

100*120*16

75*85*8.8

65*73*8.8

85*100*11

125*145*16

100*125*13.6

75*85*11

65*75*6.6

85*100*13.2

125*145*16.5

100*125*16.5

75*85*13.2

65*75*8.8

85*105*13.2

125*150*19.8

105*120*9.9

75*88*11

65*75*11

87*110*11

130*145*9.9

105*120*11

75*90*6.6

65*75*13.2

88*102*11.6

130*150*13.2

105*125*12.5

75*90*9.9

65*78*11

90*98*8.8

130*150*14.3

105*125*13.2

75*90*11

65*80*9.9

90*100*6.6

130*150*16.5

105*125*16.5

75*90*12.1

65*80*11

90*100*7.7

130*150*17.6

109*125*11.6

75*90*12.5

65*80*13.2

90*105*9.9

130*160*18.7

110*125*9.9

75*90*13.2

65*85*13.2

90*105*11

135*150*9.9

110*125*10.1

75*95*13.2

67*77*6.6

90*105*12.5

135*155*16.5

110*125*11

75*100*16.5

70*78*8.8

90*105*13.2

136*150*9.9

110*125*13.2

78*90*12.1

70*80*6.6

90*110*13.2

140*155*9.9

110*130*11

80*88*8.8

70*80*11

90*110*16

140*160*13.2

110*130*13.2

80*90*6.6

70*80*13.2

92*102*11

140*160*15.4

110*130*16.5

80*90*8.8

70*83*11

95*105*6.6

140*160*16

110*135*19.8

80*90*11

70*85*9.9

95*110*9.9

140*160*16.5

112*125*7.7

80*90*13.2

70*85*11

95*110*11

145*160*7.7

115*130*9.4

80*92*10.5

70*85*12.5

95*110*13.2

145*160*9.9

115*130*9.9

80*93*11

70*85*13.2

95*115*13.2

150*160*8.8

115*130*11

80*95*9.9

70*90*13.2

97*105*14.3

150*165*9.9

115*135*13.2

80*95*11

70*90*16.5

98*110*17.6

150*170*16.5

115*135*16.5

80*95*12.1

71*80*6.6

100*108*8.8

150*170*17.6

115*140*19.8

80*95*12.5

71*80*7.2

100*115*9.9

150*180*19.8

118*133*9.9

80*100*13.2

72*82*8.8

100*115*11

155*180*16.5

120*130*16.5

80*100*16

190*215*16.5

170*190*16.5

155*180*17.6

120*135*9.9

80*100*16.5

190*215*17.6

170*195*17.6

160*175*9.9

120*140*11

180*200*13.8

199*224*17.6

175*200*16.5

160*180*16.5

120*140*13.2

180*205*16.5

200*220*13.8

175*200*19.8

160*185*17.6

120*140*16

180*205*17.6

200*220*16.5

205*235*19.8

160*185*19.8

170*200*16.5

190*210*13.2

200*225*16.5

165*180*10.5

160*190*25

175*185*12.5

190*210*16.5

200*225*17.6

165*190*17.6

PTB Hydraulic Piston Rod Seals SKF

PTB Hydraulic Piston Rod Seals SKFPTB Hydraulic Piston Rod Seals SKFPTB Hydraulic Piston Rod Seals SKFPTB Hydraulic Piston Rod Seals SKFPTB Hydraulic Piston Rod Seals SKFPTB Hydraulic Piston Rod Seals SKFPTB Hydraulic Piston Rod Seals SKF

PTB PISTON SEALS
PTB Hydraulic Piston Rod Seals SKF
Material codes Sealing ring: U-1003
X-ring: A-8501
→ see Engineering information below
Pressure Up to 400 bar (5 800 psi)
Speed Up to 1 m/s (3.2 ft/s)
Temperature range PTB Hydraulic Piston Rod Seals SKF
PTB Hydraulic Piston Rod Seals SKF Extreme low temperature range: may be intermittently exposed (e.g. cold start-up) without seal damage, but seal performance may be compromised while in this range
PTB Hydraulic Piston Rod Seals SKF Temperatures below the recommended operating range: seal performance depends on system design (precision guiding arrangement recommended)
PTB Hydraulic Piston Rod Seals SKF Recommended operating temperature range for this profile and material
PTB Hydraulic Piston Rod Seals SKF Temperatures above the recommended operating range: acceptable only with reduced pressure, speed, e-gap and/or with the use of a full-face anti-extrusion ring
PTB Hydraulic Piston Rod Seals SKF Extreme high temperature range: only occasional short-term exposure (e.g. cylinder in curing oven of a powder coating process
