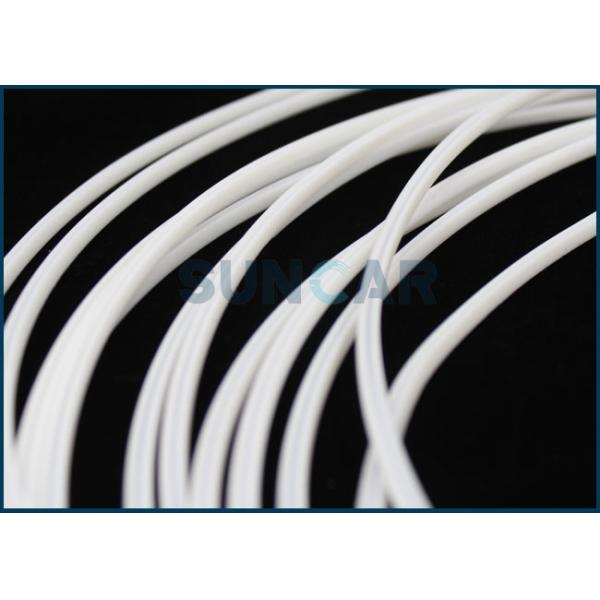

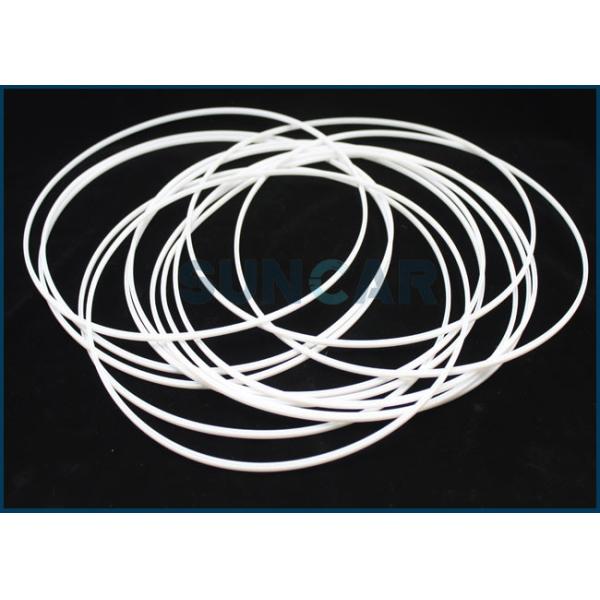

232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
Specifications
Brand Name :
SUNCAR
Model Number :
Gearbox seal ring 232-15-19220 2321519220
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
100 sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Pcs Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Brand :
SUNCAR
Made of :
Bear ring,wear ring,piston,seal ring
Compatible brand :
Komatsu
Temperature(TSE) :
-50 ℃~ +150 ℃
Compatible equipment :
Wheel loader
Feature :
Higher-toughness/Wear Resistance/High&Low Temperature resistence
Compatible model :
BULLDOZERS D475A D475ASD D60P D61E D61EX D61PX D63E D65E D65EX D65P D65PX D85E D85ESS
OEM NO. :
232-15-19220
Compatible machine :
BULLDOZERS
Material :
+FIBER
Cross number :
2321519220
Description

232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission

Description:

Part number 232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
Brand SUNCAR
KOMATSU OEM code 232-15-19220
Cross OEM number 2321519220
Fit equipment: Komatsu
Core parts TORQUE CONVERTER AND TRANSMISSION, PARKING BRAKE
Market North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Type Engine seal, Pistons seal ring,Hydraulic, Seals, Seals and gaskets
Original palace Guangzhou city,China
Loading port Huangpu port,China
Make up Bear ring,wear ring,piston,seal ring
Loading port Huangpu port,China
Original palce Guangzhou city,Guangdong province,China
Compatible for Compatible equipment models: 232-15-19220:
BULLDOZERS D475A D475ASD D60P D61E D61EX D61PX D63E D65E D65EX D65P D65PX D85E D85ESS
COMPACTORS WF550 WF550T
CRAWLER LOADERS D68ESS D85ESS
DUMP TRUCKS HD785
GRADERS GD605A GD655A GD825A
WHEEL DOZERS WD500 WD600
WHEEL LOADERS WA500 WA600 Komatsu

Seals for Group:

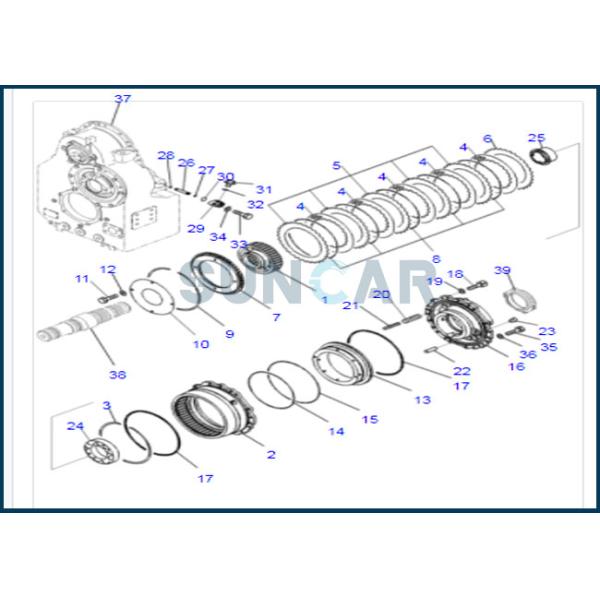

Parts on group :
Pos. Qty Parts name
[1] Transmission Assembly, With Lockup
1 [1] Hub
2 [1] Drum
3 [1] Ring, Snap
4 [5] Disc
5 [5] Plate
6 [1] Plate
7 [1] Plate
8 [5] Spring
9 [1] Ring, Snap
10 [1] Plate
11 [4] Bolt
12 [4] Washer
13 [1] Piston
14 [1] Seal Ring, (Kit : K06, K07)
15 [1] Seal Ring
16 [1] Housing
17 [2] O-ring, (Kit : K06, K07)
18 [4] Bolt, Hexagon Socket Head Komatsu
["SN: 55479-(102872"]
19 [4] Washer
20 [18] Spring
21 [18] Spring
22 [2] Pin, Dowel
23 [2] Plug
24 [1] Bearing
25 [1] Spacer
26 [1] Sleeve
27 [1] O-ring, (Kit : K06, K07)
28 [1] O-ring, (Kit : K06, K07)
29 [1] Flange
30 [1] O-ring, (Kit : K06, K07)
31 [1] Plug
32 [1] O-ring, (Kit : K06, K07)
33 [2] Bolt
35 [12] Bolt
37 [-1] CNH
38 [-1] Shaft
39 [-1] Cover

232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission232-15-19220 2321519220 Gearbox Seal Ring OUT For KOMATSU Transmission
