XKCD-03076 XKCD03076 Boom Cylinder Seal Repair Kit for CNH CX57C CX60C
XKCD-03076 XKCD03076 Boom Cylinder Seal Repair Kit for CNH CX57C CX60C
XKCD-03076 XKCD03076 Boom Cylinder Seal Repair Kit for CNH CX57C CX60C
XKCD-03076 XKCD03076 Boom Cylinder Seal Repair Kit for CNH CX57C CX60C
Specifications
Brand Name :
SUNCAR
Model Number :
XKCD-03076 XKCD03076 Boom cylinder seal kit
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union,
Supply Ability :
550 Sets Per Week.
Delivery Time :
3-7 days after payment received(Public Holiday Excluded)
Packaging Details :
PP bag inside,carton box outside.
Material :
NBR
Brand :
SUNCAR
Color :
Standard color/As per customer required
Temparature :
-20 ℃ to 100 ℃(According to the material)
Speed :
1 m/sec
Max pressure :
300 bar
Pressure :
≤30 MPa
Features :
Oil resistance;Sealing oil
Part number :
XKCD-03076 XKCD03076
Fits brand :
CNH
Compatible model :
CNH CX37C
Description

XKCD-03076 XKCD03076 Boom Cylinder Seal Repair Kit for CNH CX57C CX60C

Description:

Boom cylinder seal kit for CNH.Hydraulic cylinder seal kits: Seals matched to specific appliC-A-Tions

for durability and long wear life.The seal kit usually have wiper ring,buffer ring,piston seal,wear ring.

Products Details:

Product name XKCD-03076 XKCD03076 Boom Cylinder Seal Repair Kit for CNH CX57C CX60C
Brand SUNCAR
Type Boom cylinder seal kit;CNH seal kit.
Loading port Huangpu port,China
Features

1. Waterproof;resistance to oil;wear resistance;

2. High Quality and economical price
3. Full range

4. anti-extrusion

5. small compression deformation

6. Adapt to the toughest working condition

7. Easy installation
Advantages High resistance to high temperature
High abrasion resistance
Low compression set
Easy installation
Use in Excavator;Hydraulic ; Cylinder
Payment TT,Paypal,Western Union,Bank transfer
Original place Made in China.
MOQ Accept trial order

Hydraulic Cylinder Seal Kit-- Buffer Ring/Seal

Buffer ring does more then normal buffer ring does, not only just buffer the pressure spikes of hydraulic systems,

but also acts as a primary seal and pressure spike suppressor. It is mainly used in construction machinery cylinder.

Hydraulic Cylinder Seal Kit--Wisper/Dust Seal

The dust seal is the most undervalued seal type in the hydraulic cylinder in relation to its important function.

Particular attention should be drawn to its selection, the surrounding environment and service conditions must also

be taken into special consideration..

Hydraulic Cylinder seal kit-- PTFE piston seals

PTFE piston seals works perfectly as double acting Piston seals of hydraulic components such as

injection molding machines, machine tools, presses, excavators, forklifts & handling machinery, agriculture equipment,

valves for hydraulic & pneumatic circuits and so on.

Hydraulic Cylinder seal kit-- Phenolic Wear Rings

The function of a hydraulic phenolic wear ring is to guide the shaft and hole sealing of a hydraulic cylinder,

absorbing transverse forces. At the same time, it prevents metal-to-metal contact, optimizing the performance

of the sealing system.

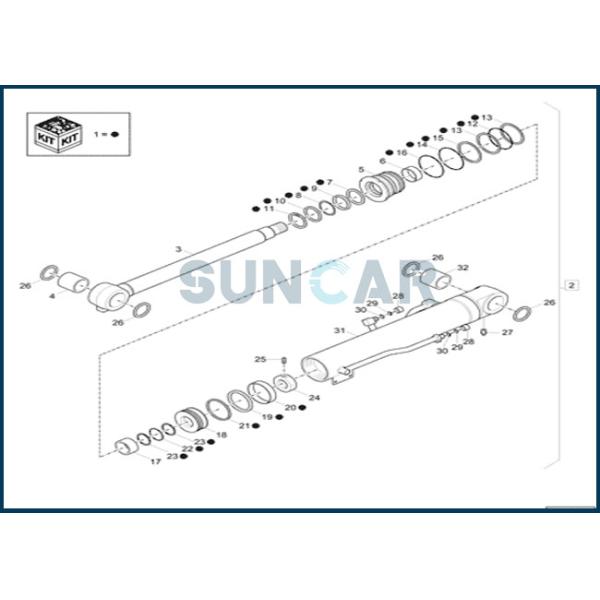

Relative Parts on Group:

Pos. Part No Qty Parts name
1 XKCD-03076 [1] SEAL KIT
2 31M9-50114CG [1] BOOM
3 XKCD-01002 [1] ROD
4 XKCD-02143 [1] BUSHING
5 XKCD-03073 [1] COVER
6 XKCD-01004 [1] BUSHING
7 XKCD-03074 [1] SEAL
8 XKCD-03075 [1] SEAL KIT
9 XKCD-01007 [1] BACK-UP RING
10 XKCD-01101 [1] SEAL
11 XKCD-01009 [1] RING
12 XKCD-01010 [1] O-RING
13 XKCD-01011 [2] BACK-UP RING
14 XKCD-01012 [1] O-RING
15 XKCD-01013 [1] BACK-UP RING
16 XKCD-01014 [1] O-RING
17 XKCD-01015 [1] RING
18 XKCD-01016 [1] PISTON
19 XKCD-01017 [1] SEAL
20 XKCD-01018 [1] WEAR RING
21 XKCD-01019 [1] RING
22 XKCD-01245 [1] BACK-UP RING
23 XKCD-01838 [2] BACK-UP RING
24 XKCD-02273 [1] NUT
25 XKCD-00561 [1] SET SCREW
26 XKCD-01023 [4] SEAL
27 XKCD-01024 [2] NIPPLE
28 XKCD-01116 [2] CAP
29 XKCD-00992 [2] O-RING
30 XKCD-00993 [2] O-RING
31 XKCD-02983 [1] TUBE
32 XKCD-02142 [1] BUSHING

XKCD-03076 XKCD03076 Boom Cylinder Seal Repair Kit for CNH CX57C CX60C
