418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6
418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6
418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6
418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6
Specifications
Brand Name :
SUNCAR
Model Number :
418-62-05000 4186205000 Lift cylinder seal kit
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 Sets Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Brand :
SUNCAR
Type :
Steering cylinder seal repair kit
Part number :
418-62-05000 ; 4186205000
Working medium :
Hydraulic oil, gas,water, etc
Material :
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Features :
Oil resistance;Sealing oil
Feature :
High efficiency, Long life;Seal performance
Style :
Hydraulic cylinder service kit
Consist of :
Dust seal,back-up ring,wear ring,buffer ring,O-ring
Fits models :
KOMATSU WA250-5 WA250-6
Fits brand :
KOMATSU
Condition :
100%new, brandnew
Description

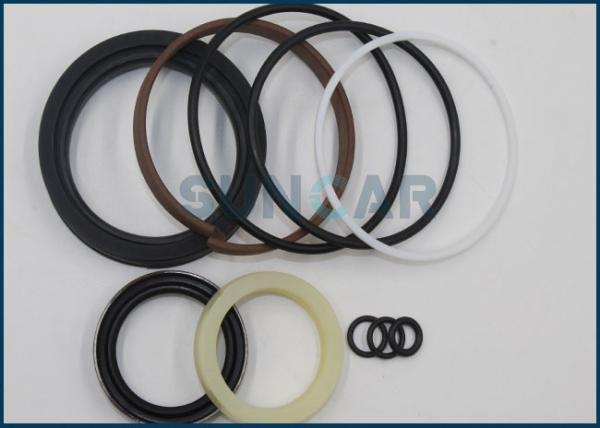

418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6

Description: 418-62-05000 4186205000 lift cylinder service kit ,compatible for WA250-5 WA250-6.

Product name 418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6
Brand SUNCAR
Fit brand KOMATSU
OEM number 418-62-05000 4186205000
AppliC-A-Ted models KOMATSU WA250-5 WA250-6
Fit Brand KOMATSU
MOQ Accept trial order
Temperature -40°C ~ 250 °C.
Material PU
Material VMQ
Material ACM
Material NBR
Material Rubber
Material PTFE
Material HNBR
Function Dust proof, Shaft seal,high and low temperature resistance
Consist of Dust seal,back-up ring,wear ring,buffer ring,O-ring
Medium Hydraulic oil, anti-fire fluid, water, gas etc
Transport mode By Air, by Sea, by Express ( FedEx , UPS,DHL,TNT etc.), your forwarder
CertifiC-A-Tion ISO9001
Market Those in need

Availability

 In stock
AppliC-A-Tion

KOMATSU Wheel loader.
Color Standard color
Style

Komatsu cylinder seal kit
Notes Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity.

About Seal Kit:

Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder.

The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of

the hydraulic system, to maintain its power.


Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.


There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.


Arm cylinder is the top one, and it's usually be called as top cylinder;


The bucket cylinder is the one that connects and controls the bucket.


Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small

excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the

driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work

by one cylinder. Soft remind: all refit job should be operated by an experienced technician.

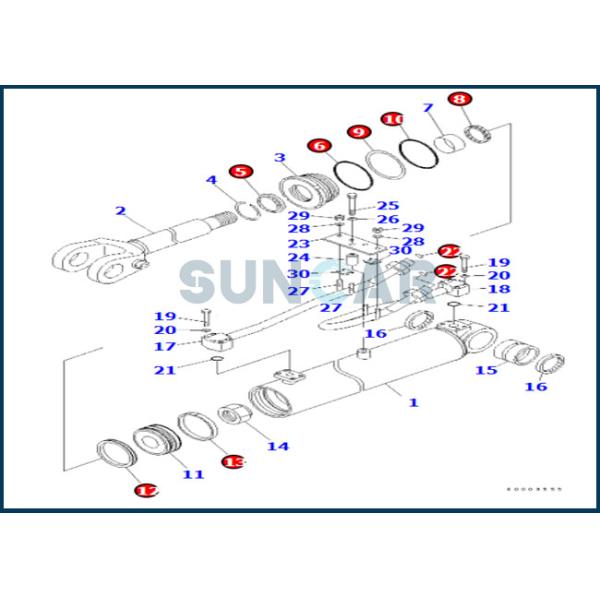

Relative Parts on Group:

Nos. Part number Name Qty
1 418-63-32150 • CYLINDER 1
2 418-63-32140 • ROD 1
3 418-63-32120 • HEAD,CYLINDER 1
4 07179-12084 • RING,SNAP 1
5 144-63-95170 • SEAL,DUST (KIT) 1
6 07000-12130 • O-RING (KIT) 1
7 707-52-10700 • BUSHING 1
8 707-51-70030 • PACKING,ROD (KIT) 1
9 07146-02126 • RING,BACK-UP (KIT) 1
10 07000-12125 • O-RING (KIT) 1
11 707-36-13240 • PISTON 1
12 707-44-13180 • RING (KIT) 1
13 07156-01315 • RING,WEAR (KIT) 1
14 07165-15252 NUT,NYLON 1
15 418-63-32130 BUSHING 1
16 418-09-11110 SEAL (KIT) 2
17 418-63-32180 TUBE 1
18 418-63-32190 TUBE 1
19 01010-81060 BOLT 8
20 01643-51032 WASHER 8
21 07000-13035 O-RING 2
22 02896-11018 O-RING (KIT) 2
23 418-63-32260 PLATE 1
24 418-63-32250 SPACER 1
25 01010-81270 BOLT 1
26 01643-31232 WASHER 1
27 07283-22738 CLIP 2
28 01643-31032 WASHER 4
29 01597-01009 NUT 4
30 07283-52737 SEAT 2
====================
SERVICE KIT
K 418-62-05000 SERVICE KIT,LIFT CYLINDER

418-62-05000 4186205000 Lift Cylinder Seal Repair Kit for WA250-5 WA250-6
