XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
Specifications
Brand Name :
SUNCAR
Model Number :
XKAQ-00087 XKAQ00087 oil seal
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
550 sets per week.
Delivery Time :
3-7 days after payment received(Public Holiday Excluded)
Packaging Details :
PP bag inside,carton box outside.
Material :
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Condition :
New, 100%new, brandnew
Style :
Hydraulic seal,Mechanical seal
Part name :
XKAQ-00087 XKAQ00087 oil seal
Part number :
XKAQ-00087 XKAQ00087
Applicability :
Hyundai construction equipment
Compatible model :
Hyundai HX160 L;HX180 L;R160LC-7;R160LC-7A;R160LC-9;R160LC-9A;R160W-9A;R170W-7;R170W-7A;R170W-9;R180LC-7;R180LC-9;R180LC-9A;R200W-7;R200W-7A;R210LC-7;R210LC-9;R220LC-9S;R220LC-9SH;R210NLC-7;R210NLC-7A;R210NLC-9;R210W-9;R210W-9A;R210W-9S;R220LC-9A;R235LCR-9
Hardness :
70 degree-95 degree
AppliC-A-Tion :
Machinery repair shops, excavator repair shops;Excavator;Hyundai
Standard or nonstandard :
Standard
High light :
XKAQ-00087 , R210W-9 oil seal
Compatible brand :
Hyundai construction equipment
Description

XKAQ-00087 XKAQ00087 Oil Seal for Swing Reduction Gear HW140 R110-7

Description: Known as an oil seal, shaftseal, or lip seal. Its function is to exclude dust, dirt, water or any other contaminant on one side whilst

retaining lubricant on the other. Generally it has been developed as a means of protecting the bearings of rotating shafts.

The basic operation of a shaft seal has the flexible lip held against the rotating part (usually the shaft) whilst the casing (or O.D.) is pressed into

the housing or bore holding the seal in place. The sealing lip needs some form of lubriC-A-Tion to avoid overheating and are usually energized by

means of a garter spring.

Product name XKAQ-00087 XKAQ00087 Oil Seal for Swing Reduction Gear HW140 R110-7
Brand SUNCAR
OEM No.

XKAQ-00087 ; XKAQ00087
Color As per standard color/customize color
Swing reduction gear number 31NA-10140
Hardness 70 degree to 95 degree
Package PP bag, carton, wooden box, or as required
AppliC-A-Tion

Machinery repair shops, excavator repair shops;Excavator;Hyundai
MOQ Accept trial order
Type Excavator oil seal
Payment terms L/C, D/A, D/P, T/T, Western Union,
Market North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Relative Brand

Komatsu,Hitachi,Sumitomo,Doosan,Daewoo,Hyundai,C-A-Terpillar,

Kobelco,SUNCARSUNCARSUNCARSUNCARVOLVO,Kato,Samsung,LiebherrI,Mitsubishi and more.
Packaging Nuetral packaging or OEM packaging
Shipping mode By air, by sea, by express
Express Post FedEx , UPS,DHL,TNT etc
Loading port Huangpu port,China
Original place Guangzhou city,Guangdong province,China
Forwarder Your local forwarder or we find for you
Quality Stable quality,OEM standard,Genuine/Aftermarket

AppliC-A-Ted Models:

7 Series Wheel Excavator R140W7 R140W7A


7-Series Crawler Excavator R110-7 R110-7A R140LC-7 R140LC-7A RD110-7


9-Series Crawler Excavator R125LCR-9A R140LC9 R140LC9A R140LC9S R140LC9V R145CR9 R145CR9A RB140LC9S RD140LC9

9-Series Wheel Excavator R140W9 R140W9A R140W9S


F-Series Crawler Excavator HX140L


F-Series Wheel Excavator HW140 Hyundai

Oil Seal Feature:

1). Excellent durability and flexibility of use.

2). The specially designed rope enhances durability and length stability.

3). Excellent heat resistance, oil resistance and abrasion resistance.

4). The display is stable during high-speed rotation.

5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction

6). High power, fast speed, long service life, low distortion and less space

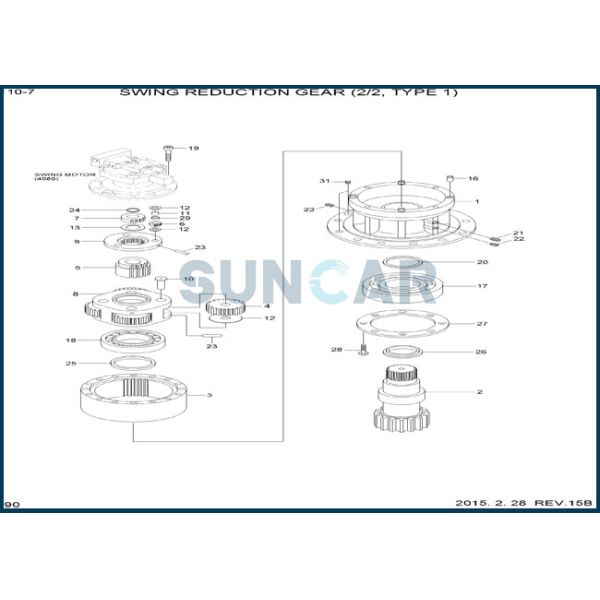

Relative Parts:
Pos. Part No Qty Parts name
*. @ [1] SWING MOTOR ASSY
*-2. 31N4-10140 [1] SWING REDUCTION GEAR
*-2. 31N4-10141 [1] SWING REDUCTION GEAR
*-2. 31N4-10142AR [1] SWING REDUCTION GEAR
1 XKAQ-00134 [1] CASING
1 XKAQ-00332 [1] CASING
2 XKAQ-00249 [1] SHAFT-DRIVE
3 XKAQ-00102 [1] GEAR-RING
5 XKAQ-00100 [1] GEAR-SUN NO.2
5 XKAQ-00278 [1] GEAR-SUN NO.2
*-21. XKAQ-00271 [1] CARRIER NO.1 ASSY
6 XKAQ-00099 [3] GEAR-PLANET NO.1
7 XKAQ-00098 [1] GEAR-SUN NO.1
7 XKAQ-00277 [1] GEAR-SUN NO.1
9 XKAQ-00096 [1] CARRIER NO.1
11 XKAQ-00094 [3] PIN ASSY NO.1
12 XKAQ-00093 [6] WASHER-THRUST(B)
13 XKAQ-00092 [1] WASHER-THRUST(A)
13 XKAQ-00057 [1] PLATE-SIDE 1
23 XKAQ-00086 [3] PIN-SPRING
24 XKAQ-00085 [4] RING-STOP
29 XKAQ-00080 [3] CAGE-NEEDLE
*-22. XKAQ-00272 [1] CARRIER NO.2 ASSY
4 XKAQ-00101 [4] GEAR-PLANET NO.2
8 XKAQ-00097 [1] CARRIER NO.2
10 XKAQ-00095 [4] PIN ASSY NO.2
12 XKAQ-00093 [4] WASHER-THRUST(B)
23 XKAQ-00086 [4] PIN-SPRING
16 XKAQ-00091 [2] PIN-KNOCK
17 XKAQ-00090 [1] BEARING-SPH ROLLER
18 XKAQ-00089 [1] BEARING-CYL ROLLER
19 XKAQ-00088 [10] BOLT-SOCKET
20 XKAQ-00087 [1] SEAL-OIL
21 XKAQ-00049 [1] PLUG
22 XKAQ-00066 [2] PLUG
25 XKAQ-00084 [1] RING-STOP
26 XKAQ-00083 [1] SPACER
27 XKAQ-00082 [1] PLATE-COVER
28 XKAQ-00081 [6] BOLT-HEX
31 XKAQ-00988 [4] CAP-RUBBER

XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7

XKAQ-00087 XKAQ00087 Oil Seal For Swing Reduction Gear HW140 R110-7
