Specifications
Brand Name :
SUNCAR
Model Number :
DWI Dust Seal
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Paypal,Western Union,
Supply Ability :
550 Pcs Per Week.
Delivery Time :
3-7 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag Inside,Carton Box Outside.
Material :
SPCC
Brand :
SUNCAR
Color :
Standard color/ As Per Customer required
Packing details :
PP bag inside,carton box outside.
Hardness :
According to the material
AppliC-A-Tion :
Cylinder, Presses, Machine tools
Place of original :
Guangdong province,China
Usage :
Prevent oil spilling,Protects packing or bearing by preventing intrusion of external dust.
Medium :
Hydraulic fluids, water, air
Feature :
Dust-proof
Description

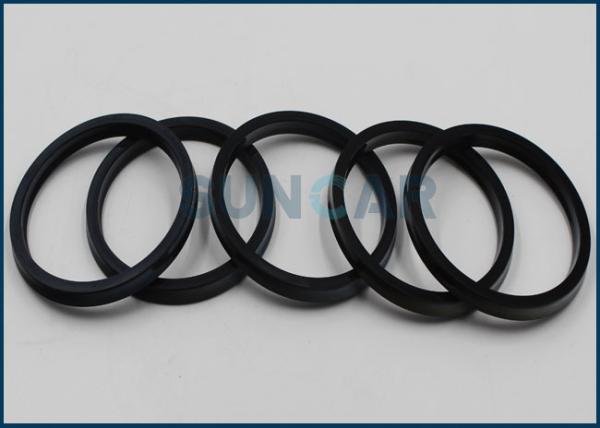

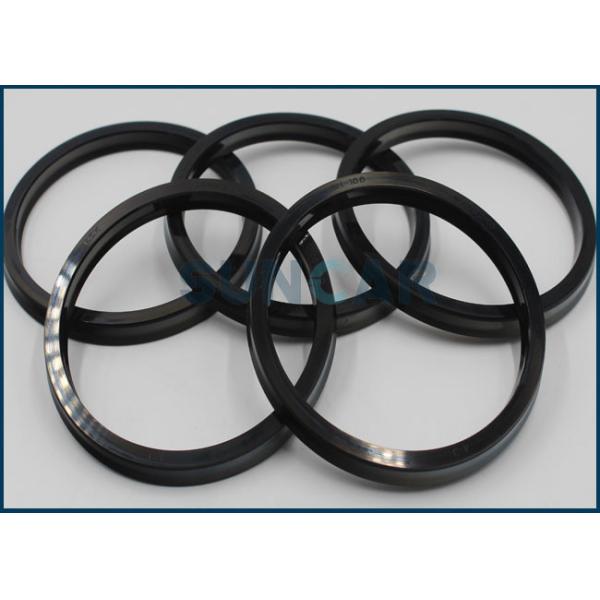

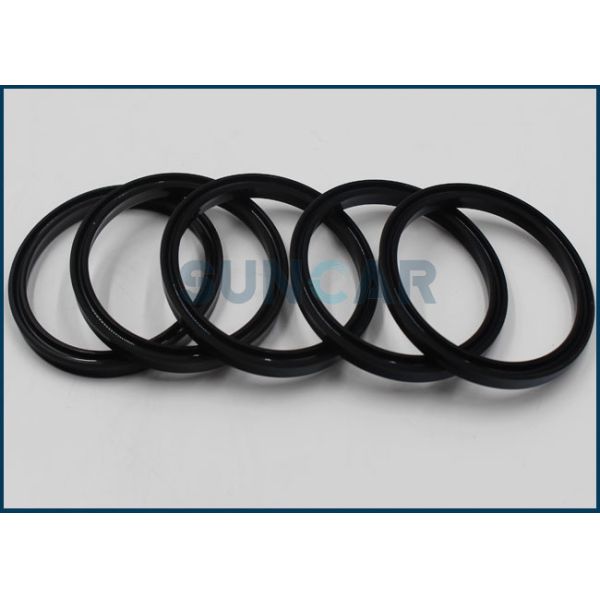

USH Piston And Piston Rod Seal for Hydraulic Cylinder Integrated Groove Mounting

Usable for both piston seal and rod seal.


· Designed with a small cross-section to allow integrated groove mounting.


· This packing is a smaller cross-section version of the UPH type.

Product name USH Piston And Piston Rod Seal for Hydraulic Cylinder Integrated Groove Mounting
Brand SUNCAR
Meterial NBR A505
Material FKM F357
Feature

Sealing Performance/Wear Resistance/High&Low Temperature Resistance
Function Isolate high-temperature liquids and improve the durability of the seal.
Payment terms T/T, Western Union, Paypal
Loading port Huangpu port,China
Features Heat resistant (F357)
AppliC-A-Tion Cylinder, Presses, Machine tools
Packing details 3-7 days after payment received(Public Holiday Excluded)
Shiping mode By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion ISO9001
Medium Hydraulic fluids, water, air
Stock Have enough stock
Usage Prevent oil spilling,Protects packing or bearing by preventing intrusion of external dust.

Detail Part Number:

●CU3248K0 CU0679K0 CU1280K0
●CU2692K0 CU0694K0 CU1291K0
●CU2548K0 CU0722K0 CU1306K0
CU0180K0 CU3255K0 CU1323K0
CU0212K0 CU0746K0 CU1343K0
CU3017K0 CU0750K0 CU1359K0
CU0260K0 CU0786K0 CU3261K0
CU0267K0 CU0809K0 CU1406K0
CU2971K0 CU0828K0 CU1429K0
CU0276K0 CU0849K0 CU3038K0
CU3187K0 CU0879K0 CU1483K0
CU0320K0 CU0901K0 CU2516K0
CU2536K0 CU0939K0 CU3263K0
CU0357K0 CU1959K0 CU1543K0
CU0382K0 CU0984K0 CU1563K0
CU2819K0 CU1024K0 CU1609K0
CU0424K0 CU1051K0 CU1637K0
CU0451K0 CU1067K0 CU1657K0
CU3253K0 CU1082K0 CU1678K0
CU3040K1 CU1135K0 CU1702K0
CU0497K0 CU1178K0 CU1962K0
CU0567K0 CU1179K0 CU1756K0
CU0572K0 CU3259K0 CU3267K0
CU0619K0 CU1204K0 CU1793K0
CU2002K0 CU1252K0 CU3270K0

USH Seals Sizes

Seal Nominal Size Cavity size
d D h φd φD φD1 HA HB C
12 20 5 12 20 19 5.7 7.7 2
14 22 5 14 22 21 5.7 7.7
16 24 5 16 24 23 5.7 7.7
18 26 5 18 26 25 5.7 7.7
20 28 5 20 28 27 5.7 7.7
22 30 5 22 30 29 5.7 7.7
22.4 30 5 22.4 30 29 5.7 7.7
23.5 31.5 5 23.5 31.5 30.5 5.7 7.7
24 32 5 24 32 31 5.7 7.7
25 33 5 25 33 32 5.7 7.7 2.5
27 35 5 27 35 34 5.7 8.7
28 35.5 5 28 35.5 34.5 5.7 8.7
36 5 28 36 35 5.7 8.7
30 40 6 30 40 39 7 10
31.5 41.5 6 31.5 41.5 40.5 7 10
32 42 6 32 42 41 7 10
35 45 6 35 45 44 7 10
35.5 45 6 35.5 45 44 7 10
45.5 6 35.5 45.5 44.5 7 10
36 46 6 36 46 45 7 10
40 50 6 40 50 49 7 10
45 55 6 45 55 54 7 10
56 7 45 56 55 8 11
50 60 6 50 60 59 7 10
53 63 6 53 63 62 7 10
55 65 6 55 65 64 7 10
56 66 6 56 66 65 7 10
58 68 6 58 68 67 7 10
60 70 6 60 70 69 7 10
71 7 60 71 70 8 11
63 73 6 63 73 72 7 10
65 75 6 65 75 74 7 10
67 77 6 67 77 76 7 10
70 80 6 70 80 79 7 10
71 80 6 71 80 79 7 10
75 85 6 75 85 84 7 10
80 90 6 80 90 89 7 10
85 95 6 85 95 94 7 10 4
100 9 85 100 98 10 13
90 105 9 90 105 103 10 13
95 110 9 95 110 108 10 13
98 112 8.5 98 112 110 9.5 12.5
100 115 9 100 115 113 10 13
106 120 8.5 106 120 118 9.5 12.5
112 125 8.5 112 125 123 9.5 12.5
125 9 112 125 123 10 13
115 130 8.5 115 130 128 9.5 12.5
118 132 8.5 118 132 130 9.5 12.5
125 140 9 125 140 138 10 13
130 145 9 130 145 143 10 13
132 145 8.5 132 145 143 9.5 12.5
136 150 8.5 136 150 148 9.5 12.5
140 155 9 140 155 153 10 13
145 160 9 145 160 158 10 13
150 165 9 150 165 163 10 13
155 170 9 155 170 168 10 14
160 175 9 160 175 173 10 14
165 180 9 165 180 178 10 14
175 190 9 175 190 188 10 14
180 200 12 180 200 198 13 17 5
190 210 12 190 210 208 13 17
195 215 12 195 215 213 13 17
200 220 12 200 220 218 13 17
204 224 12 204 224 222 13 17
224 244 12 224 244 242 13 17
230 250 12 230 250 248 13 17
240 260 12 240 260 258 13 17
250 270 12 250 270 268 13 17
260 280 14 260 280 278 15 19
280 300 14 280 300 298 15 19
295 315 14 295 315 313 15 19
300 320 12 300 320 318 13 17
335 355 14 335 355 353 15 19
355 375 14 355 375 373 15 19
380 400 14 380 400 398 15 19
400 420 14 400 420 418 15 19
450 470 14 450 470 468 15 20
500 525 17 500 525 523 18 23 6.5

Features:

Low friction, high efficiency.

Superior sealing effect in high pressure.

Can be installed onto a solid piston without tools.

Low density; High strength;

Low thermal expansion.

Ozone resistance .

Resistance to grease and .Resistance to acidic.

High thermal conductivity.

High hardness:20 to 90 shore A or as your request.

Wear-resisting,oil resistance,ozone resistance,anti- aging, prevent oil leak out.
