MachineU > China Products > Tools & Hardware > Hardware > Seals
1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder 1150K 580SK 580SL 580SM 580SM+
1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder 1150K 580SK 580SL 580SM 580SM+
1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder 1150K 580SK 580SL 580SM 580SM+
1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder 1150K 580SK 580SL 580SM 580SM+
Specifications
Brand Name :
SUNCAR
Model Number :
1543275C1 Seal Kit
CertifiC-A-Tion :
ISO9001
Place of Origin :
CN
MOQ :
Accept trial order
Price :
Negotiable
Payment Terms :
T/T, Western Union,Alipay,paypal
Supply Ability :
550 Pcs Per Week.
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside,carton box outside.
Brand :
SUNCAR
Feature :
Durability,hard-wearing,higher-toughness
Color :
Standard color
C-A-Talog :
Hydraulic seal kit.
Availability :
In stock
OEM service :
Yes,accept,avaliable
Material :
PTU
Part numbers :
1543275C1
Description

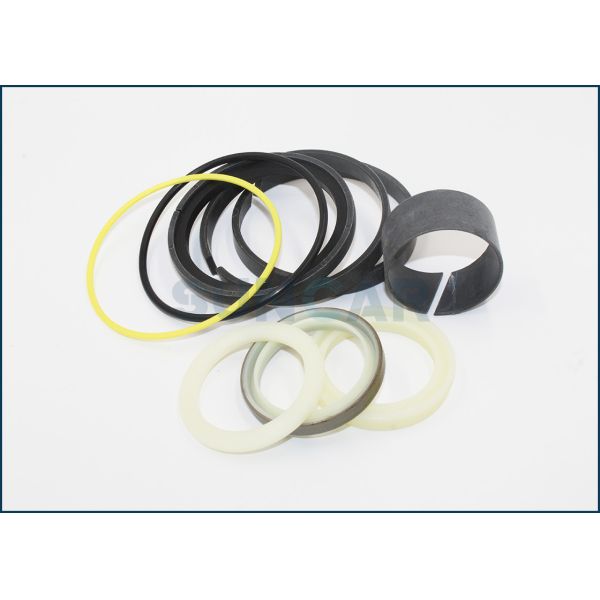

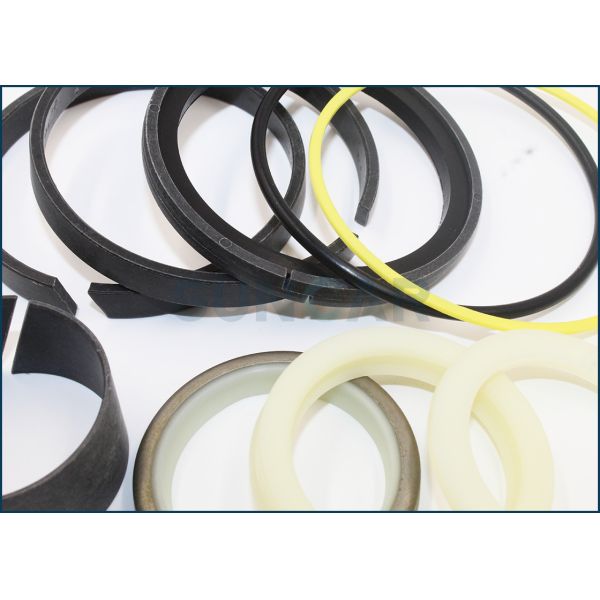

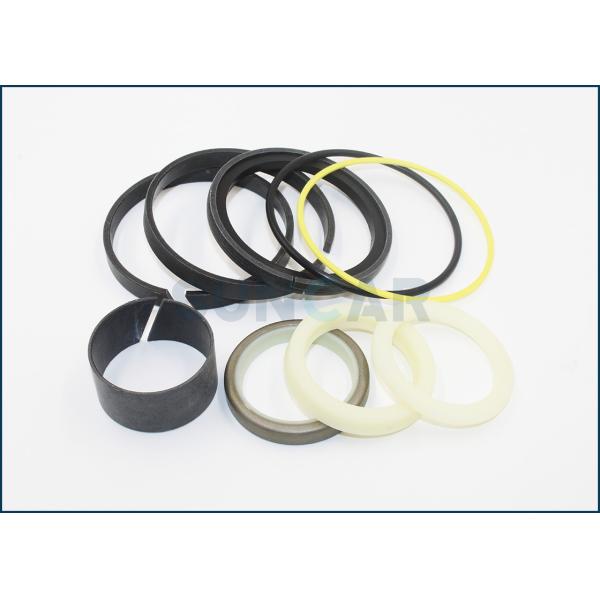

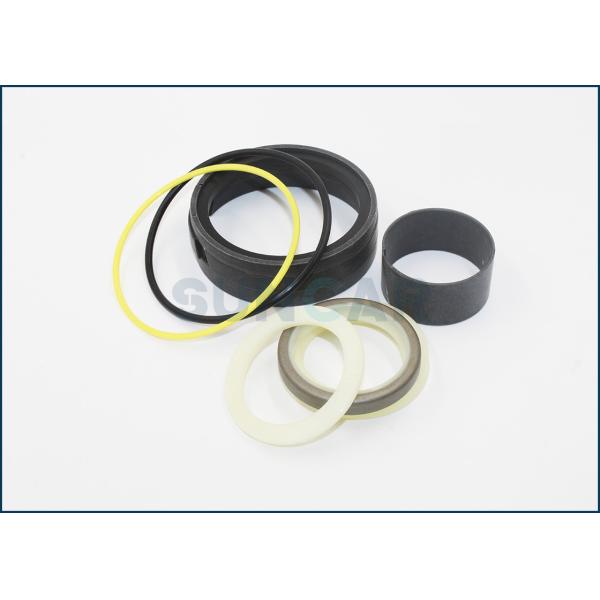

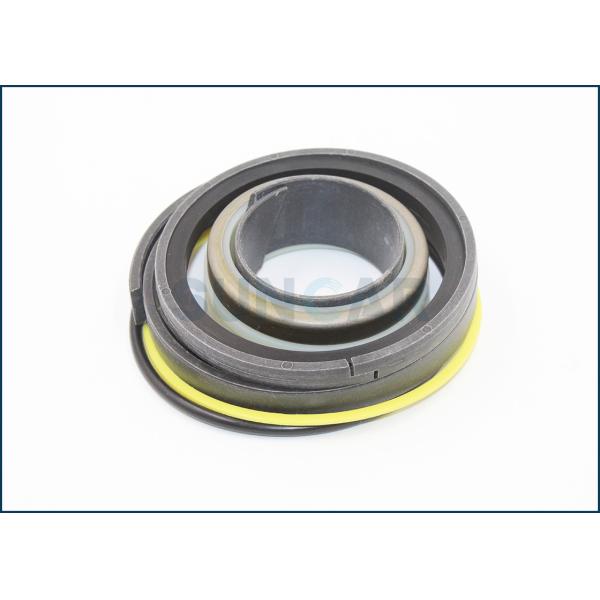

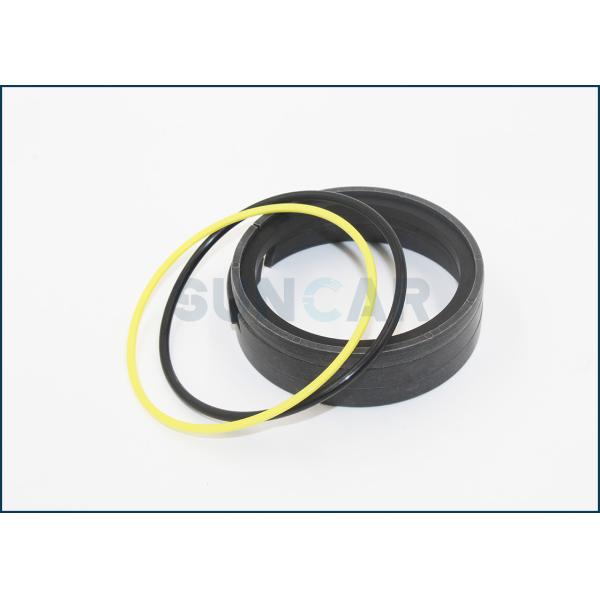

1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder 1150K 580SK 580SL 580SM 580SM+

Name 1543275C1 Seal Kit For Case Backhoe Stabilizer Cylinder
Model

150K 580SK 580SL 580SM 580SM+
Part numbers 1543265C1
Type Cylinder Seal Kit
Pressure 0~60MPa
Temperature -45℃ +200℃
Speed 15m/s
Medium Hydraulic oil, fire retardant liquid, water and others
Features Pressure & Oil Resistant
Material PTU

Part Numbers of Case Cylinder Service Kits:

LZ00439 LZ010100 PU01V00035R300
LZ00314 LZ014870 PU01V00028R300
LZ007110 LZ014960 PU01V00030R100
LZ007120 LZ014900 72280241
LZ007100 LZ014930 72282756
LZ009310 PE01V00001R100 72282781
LZ008750 PE01V00003R100 72953540
LQU0245 PE01V00004R100 72280471
LZ008100 PE01V00005R100 72282324
LZ008180 PV01V00039R300 72280251
LZ008210 PV01V00037R300 72280261
LZ007630 PV01V00038R300 72280260
LZ007650 PW01V00043R300 PX01V00069R300
LZ008130 PW01V00051R300 LE01V00027R300
LZ00313 PH01V00018R300 PX01V00043R200
LZ008160 PW01V00048R300 PH01V00027R300
LZ011300 PW01V00062R300 PY01V00043R400
LZ008450 PX01V00030R300 PH01V00034R300
LZ008420 PX01V00033R300 PY01V00040R300
LZ011210 PM01V00059R300 PY01V00047R400

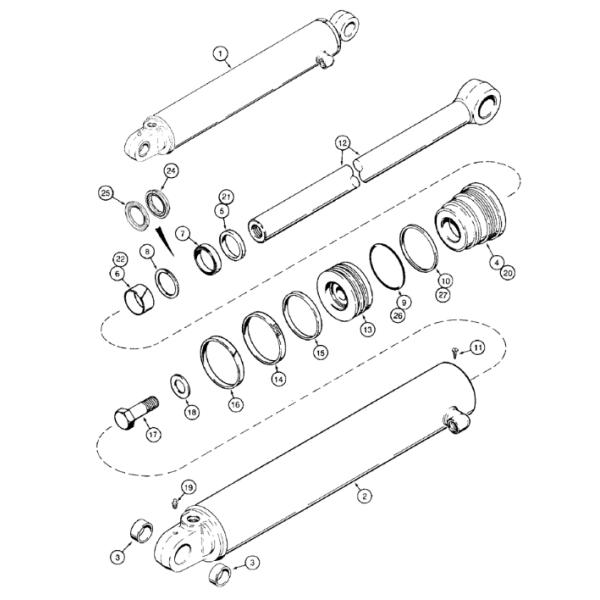

Parts on group (580SK):

Pos. Part No Qty Parts name
1 1986804C1 [1] CYLINDER ASSY.
1 199720A1R [1] REMAN-HYD CYLINDER
1 199720A1C [1] CORE-HYD CYLINDER
1 1986805C1 [1] CYLINDER ASSY.
1 199721A1R [1] REMAN-HYD CYLINDER
1 199721A1C [1] CORE-HYD CYLINDER
2 1986806C1 [1] HYD TUBE
2 1986807C1 [1] HYD TUBE
3 D33047 [2] BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
. . G110520 [1] GLAND
4 NSS [1] NOT SOLD SEPARAT
5 D95144 [1] WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
6 G101533 [1] WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
7 G107923 [1] SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk
8 G107997 [1] SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk
9 238-5241 [1] O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro
10 G32176 [1] BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
11 276-2446 [1] SELF-TAP SCREW,Hex Hd, #8 x 3/8"
12 1978060C1 [1] PISTON ROD
13 G110522 [1] PISTON
14 G110531 [1] SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk
15 G110529 [1] RING
16 G110530 [1] RING,108mm OD, Ext
17 28-1648 [1] BOLT,Hex, 1" - 14 x 3", Gr 8
18 G32303 [1] WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
19 219-1 [1] LUBE NIPPLE,1/8" - 27 NPTF
. . NSS [1] NOT SOLD SEPARAT
20 G110519 [1] CYLINDER END CAP
21 D95144 [1] WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
22 G101533 [1] WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
23 1542876C1 [1] SEAL KIT,50.8mm Rod
24 1543001C1 [1] SEAL
25 1543000C1 [1] SEAL
26 238-5241 [1] O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro
27 G32176 [1] BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
. . G110537 [1] KIT
. . 1543275C1 [1] SEAL KIT
. . 84155085 [1] SEAL KIT,Reapir, 108.0 x 50.8
