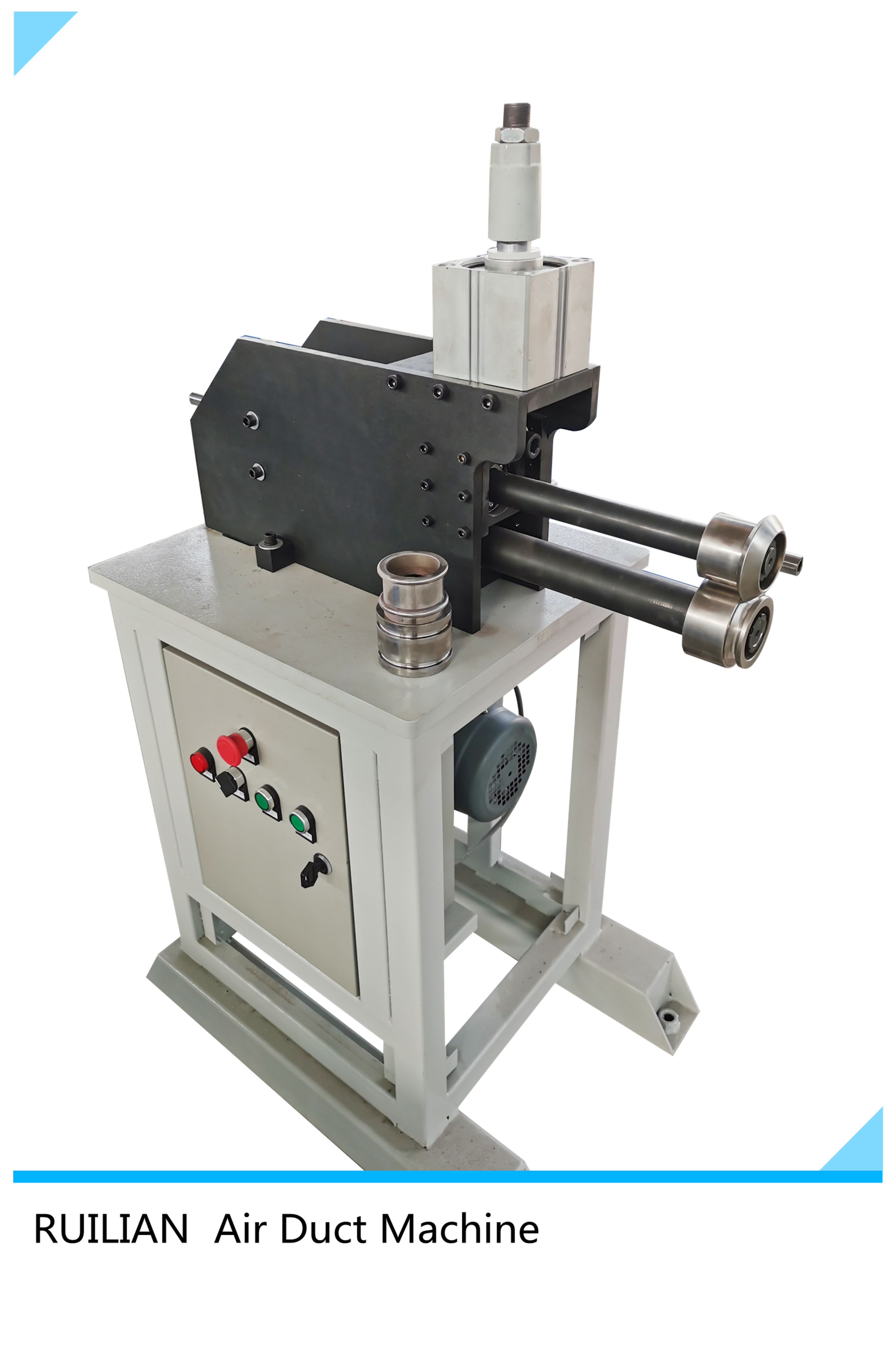

Galvanized Sheet Steel Air Duct Hydraulic Bead Rolling Machine 5KVA
Galvanized Sheet Steel Air Duct Hydraulic Bead Rolling Machine 5KVA
Specifications
Brand Name :
RUILIAN
Model Number :
Hydraulic bead rolling machine
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Air Duct Machine Hydraulic bead rolling machine
Processing diameter :
Ø100~Ø400mm
Processingplate type :
Galvanized sheet steel/Stainless steel sheet
Processing height :
≤1000mm
Processing thickness :
Galvanized sheet steel:0.2~2.0mm/Stainless steel sheet:0.2~2.0mm
Processingbeat :
5~15/min
Compressed air :
0.8Mpa 600L/min ≤25°C
power :
5KVA
Description

Air Duct Machine Hydraulic bead rolling machine

Processing diameter Ø100~Ø400mm
Processingplate type

Galvanized sheet steel

Stainless steel sheet
Processing height ≤3000mm
Processing thickness Galvanized sheet steel:0.2~2.0mm
　 Stainless steel sheet:0.2~2.0mm
Processingbeat 2M/min
Compressed air 0.8Mpa 600L/min ≤25°C
power 5KVA
Net weight 2.8T

Air Duct Machine Hydraulic bead rolling machine

Key words

Automatic apron coughing machine

Curved ventilation duct

Plug-in air duct

Metal cold bending

Air Duct Machine of Hydraulic bead rolling machine

Hydraulic bead rolling machine

The hydraulic bead rolling machine adopts high-hardness roller abrasive tools and hydraulic pressing mechanism to form the port connection and limit ribs for round metal sheet products. During the manufacturing process of connecting accessories between air ducts, the accessories are pressed. It is an indispensable auxiliary processing technology. The ply press is divided into two specifications of heavy load and light load. Bead rolling is a more traditional process, and the product formed by rolling bead has obvious boundaries after processing.The ribs are perfectly formed, and the appearance and shape are beautiful and regular. In terms of initial investment in equipment, it has many advantages such as small investment and convenient transportation.
