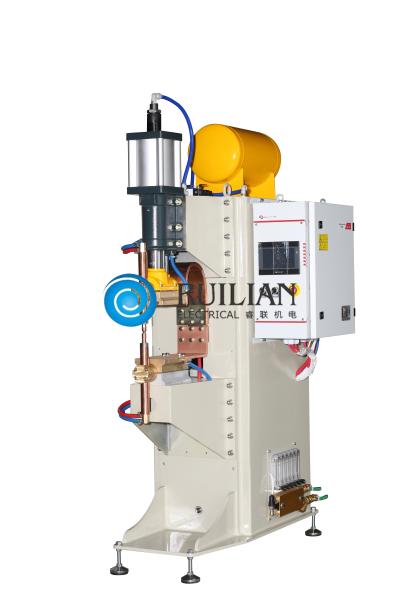

2.0mm-4.0mm Tin Plated Sheet AC Spot Welding Machine 35KVA
2.0mm-4.0mm Tin Plated Sheet AC Spot Welding Machine 35KVA
Specifications
Brand Name :
RUILIAN
Model Number :
RF-DZ130A
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Resistance Spot Welding Machine Ac spot welder
Types of Welded Sheets :
Tin Plated Sheet/Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet
Weld thickness :
Low carbon sheet steel:0.2~4.0mm/Galvanized sheet steel:0.2~4.0mm/Stainless steel sheet:0.2~4.0mm/Tin Plated Sheet:0.2~4.0mm
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
Welding power :
35KVA /63KVA/75KVA/100KVA/150KVA
Description

Types of Welded Sheets

Tin Plated Sheet

Galvanized sheet steel

Low carbon sheet steel

Stainless steel sheet
Weld thickness Low carbon sheet steel:0.2~4.0mm
　 Galvanized sheet steel:0.2~4.0mm
　 Stainless steel sheet:0.2~4.0mm
　 Tin Plated Sheet:0.2~4.0mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
Welding power 35KVA /63KVA/75KVA/100KVA/150KVA

Resistance Spot Welding Machine Ac spot welder

Ac spot welderKey word:

Resistance spot welding

Resistance welding projection welding

Air duct weiding

Sheet metal welding

Duct welder

Vanitation pipe

Product of Resistance Spot Welding Machine Ac spot welder

Ac spot welder

The RF-DZ130A intermediate frequency spot welding machine is equipped with an intermediate frequency spot welding power source. The three-phase balanced discharge does not pollute the power grid and the discharge is stable is its greatest advantage. Compared with the welding characteristics of the AC spot welding machine, its welding nugget is more beautiful and the quality is much higher than the welding effect of the power frequency 50HZ. The metal sheet for special requirements can be customized according to customer requirements. Because the equipment is equipped with a large-diameter welding cylinder, it is suitable for welding of special plates with high carbon content.

2.0mm-4.0mm Tin Plated Sheet AC Spot Welding Machine 35KVA
