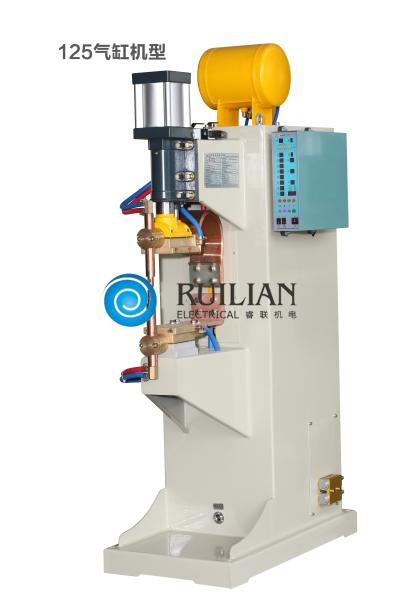

150KVA Resistance Spot Welding Machine AC Spot Welder Weld Thickness 0.2-2.0mm
150KVA Resistance Spot Welding Machine AC Spot Welder Weld Thickness 0.2-2.0mm
Specifications
Brand Name :
RUILIAN
Model Number :
RF-D125
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Resistance Spot Welding Machine Ac spot welder
Types of Welded Sheets :
Tin Plated Sheet/Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet
Weld thickness :
Low carbon sheet steel:0.2~3.0mm/Galvanized sheet steel:0.2~3.0mm/Stainless steel sheet:0.2~3.0mm/Tin Plated Sheet:0.2~3.0mm
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
Welding power :
35KVA /63KVA/75KVA/100KVA/150KVA
Description

Types of Welded Sheets

Tin Plated Sheet

Galvanized sheet steel

Low carbon sheet steel

Stainless steel sheet
Weld thickness Low carbon sheet steel:0.2~2.0mm
　 Galvanized sheet steel:0.2~2.0mm
　 Stainless steel sheet:0.2~2.0mm
　 Tin Plated Sheet:0.2~2.0mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
Welding power 35KVA /63KVA/75KVA/100KVA/150KVA

Resistance Spot Welding Machine Ac spot welder

Ac spot welderKey word:

Resistance spot welding

Resistance welding projection welding

Air duct weiding

Sheet metal welding

Duct welder

Vanitation pipe

Product of Resistance Spot Welding Machine Ac spot welder

Ac spot welder

RF-D125 AC spot welding machine can weld metal sheets up to 3mm+3mm, and the metal sheets for special requirements can be customized according to customer requirements. Because RF-125 is equipped with a large diameter welding cylinder, it is suitable for welding of special plates with high carbon content.

The AC spot welding machine can meet the application needs of different professions and occasions of different air duct manufacturing customer groups. According to the welding characteristics, it is divided into two categories: AC spot welding machine and intermediate frequency spot welding machine.

RF-D series AC spot welding machine is mainly used in many industries and fields such as air duct manufacturing and household appliance manufacturing. If the production cannot meet the requirements, the equipment can be upgraded to a medium and low speed automatic spot welding machine.
