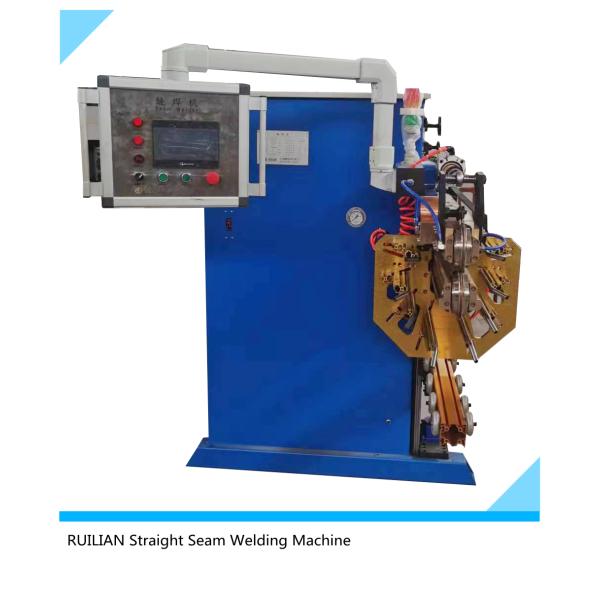

Longitudinal Straight Seam Welding Machine
Longitudinal Straight Seam Welding Machine
Specifications
Brand Name :
RUILIAN
Model Number :
RF-100F
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Semi-automatic longitudinal seam welding machine for steel drum Straight Seam Welding Machine
Welding diameter :
Ø300~Ø500mm
Types of Welded Sheets :
Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet
Welding height :
≤1000mm
Weld thickness :
Galvanized sheet steel:0.3~1.0mm/Stainless steel sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm
Welding beat :
5~8/min
Welding speed :
5~10m/min
Welding copper wire diameter :
Ø2.0mm
Overlap :
3~6mm
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
Welding power :
100KVA
Description

Welding diameter Ø300~Ø500mm
Types of Welded Sheets

Galvanized sheet steel

Low carbon sheet steel

Stainless steel sheet
Welding height ≤1000mm
Weld thickness Galvanized sheet steel:0.3~1.0mm
　 Stainless steel sheet:0.3~1.0mm
　 Tin Plated Sheet:0.3~1.0mm
Welding beat 5~8/min
Welding speed 5~10m/min
Welding copper wire diameter Ø2.0mm
Overlap 3~6mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
Welding power 100KVA
Net weight 1.5T

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Key words:

Semi-automatic longitudinal seam welding machine for steel drum

Resistance welding

Seam welding

Barrel welding

Sheet metal welding

Resistance welding

Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Semi-automatic longitudinal seam welding machine for steel drum

FB-11A Back-Feed Seam Welding Machine is a semi-automatic welding platform that can be upgraded to low speed requirements. It can meet the requirements of automatic work at low speed after being equipped with an automatic rounding machine. It is mainly used in the welding requirements of the chemical and food industries and can realize reliable resistance welding of thin steel plates below 0.35 mm. The small single overlay structure of fb series welding machine can maximize the use of heat generated by resistance welding, and the weld seam is beautiful and firm. Compared to the FB-9A model, the FB-11A turf welding machine can meet the welding requirements of large and large capacity products. In addition, the welder can weld small diameter pressure vessels after the welding configuration has been updated. The conductive electrode is made of highly conductive Korean copper electrode material, which makes the current heat conversion rate in high speed welding more efficient.
