Galvanized Sheet Steel Straight Seam Welding Machine Overlap 4mm
Galvanized Sheet Steel Straight Seam Welding Machine Overlap 4mm
Specifications
Brand Name :
RUILIAN
Model Number :
RAU-300S
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Semi-automatic longitudinal seam welding machine for steel drum Straight Seam Welding Machine
Welding diameter :
Ø150~Ø400mm
Types of Welded Sheets :
Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet
Welding height :
≤1000mm
Weld thickness :
Galvanized sheet steel:0.3~1.0mm/Stainless steel sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm
Welding beat :
5~8/min
Welding speed :
5~10m/min
Welding copper wire diameter :
Ø2.0mm
Overlap :
4mm
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
Welding power :
100KVA
Description

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum

Welding diameter Ø150~Ø400mm
Types of Welded Sheets

Galvanized sheet steel

Low carbon sheet steel

Stainless steel sheet
Welding height ≤1000mm
Weld thickness Galvanized sheet steel:0.3~1.0mm
　 Stainless steel sheet:0.3~1.0mm
　 Tin Plated Sheet:0.3~1.0mm
Welding beat 5~8/min
Welding speed 5~10m/min
Welding copper wire diameter Ø2.0mm
Overlap4 mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
Welding power 100KVA
Net weight 2T

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Key words:

Semi-automatic longitudinal seam welding machine for steel drum

Resistance welding

Seam welding

Barrel welding

Sheet metal welding

Resistance welding

Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Semi-automatic longitudinal seam welding machine for steel drum

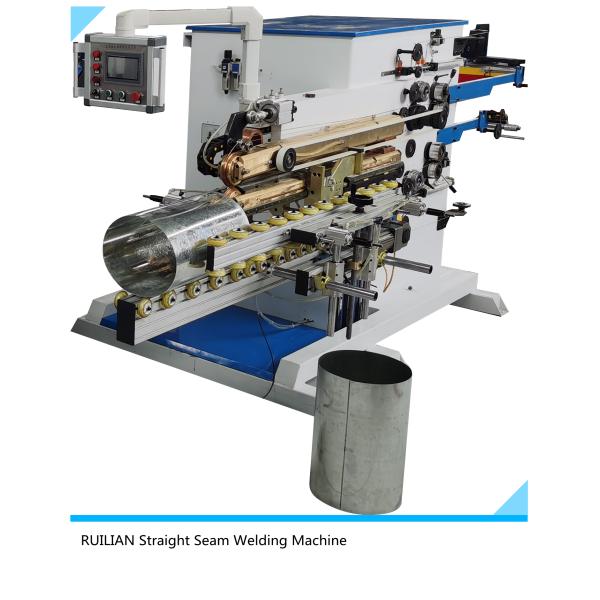

The RAU-300S resistance straight seam welder is an export-type straight seam welder in the RU series equipped with an intermediate frequency welding power source. Compared with the RAU-300H resistance straight seam welder, the welding range of the product has been adjusted appropriately to meet the needs of small diameter plates. Thick and thicker products demand the choice of customers. Nowadays, the occasions that require a clean environment in industrial ventilation ducts are very common, so the market demand for small-diameter stainless steel air ducts is very obvious. RAU-300S can completely fill the above market gaps.The characteristics of intermediate frequency welding are mainly reflected in two aspects: dense solder joints and small heat affected zone, so it is favored and valued by customers in the European and American markets.

Galvanized Sheet Steel Straight Seam Welding Machine Overlap 4mm

Product tags

resistance seam welding process

,

sheet metal welding process

,

resistance seam welding
