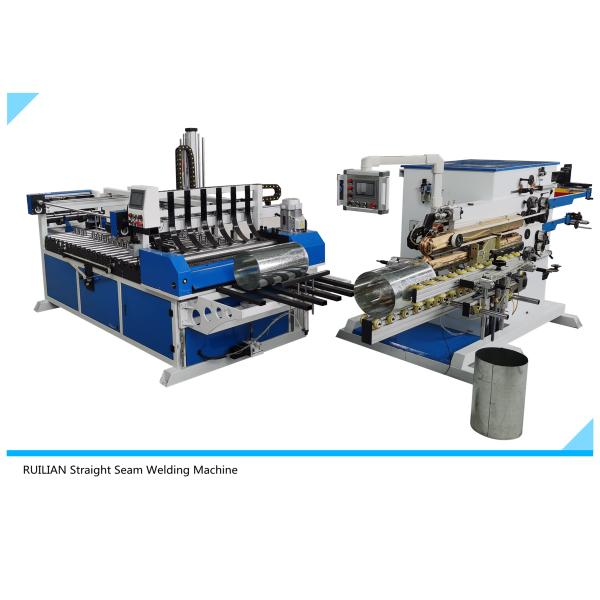

4mm Overlap Straight Seam Welding Machine Longitudinal Seam Welder 100KVA
4mm Overlap Straight Seam Welding Machine Longitudinal Seam Welder 100KVA
Specifications
Brand Name :
RUILIAN
Model Number :
RAU-300
Place of Origin :
Hanzhong Shanxi China
MOQ :
1 devices
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1+ devices+a month
Packaging Details :
Packing in wooden cases
Device name :
Semi-automatic longitudinal seam welding machine for steel drum Straight Seam Welding Machine
Welding diameter :
Ø300~Ø600mm
Types of Welded Sheets :
Galvanized sheet steel/Low carbon sheet steel/Stainless steel sheet
Welding height :
≤1000mm
Weld thickness :
Galvanized sheet steel:0.3~1.0mm/Stainless steel sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm
Welding beat :
5~8/min
Welding speed :
5~10m/min
Welding copper wire diameter :
Ø2.0mm
Overlap :
4mm Overlap
Cooling water flow rate :
0.4Mpa 8.5L/min
Compressed air :
0.8Mpa 600L/min ≤25°C
Welding power :
100KVA
Description

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum

Welding diameter Ø300~Ø600mm
Types of Welded Sheets

Galvanized sheet steel

Low carbon sheet steel

Stainless steel sheet
Welding height ≤1000mm
Weld thickness Galvanized sheet steel:0.3~1.0mm
　 Stainless steel sheet:0.3~1.0mm
　 Tin Plated Sheet:0.3~1.0mm
Welding beat 5~8/min
Welding speed 5~10m/min
Welding copper wire diameter Ø2.0mm
Overlap4 mm
Cooling water flow rate 0.4Mpa 8.5L/min
Compressed air 0.8Mpa 600L/min ≤25°C
Welding power 100KVA
Net weight 2T

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Key words:

Semi-automatic longitudinal seam welding machine for steel drum

Resistance welding

Seam welding

Barrel welding

Sheet metal welding

Resistance welding

Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum

Semi-automatic longitudinal seam welding machine for steel drum

RAU-300 Air Duct Straight Seam Welder is the best-selling straight seam welder in the RU series after being equipped with an automatic rounding machine. On the basis of increasing the load-bearing capacity, the RAU-300 air duct straight seam welder runs more stably and is easier to operate under continuous working conditions. At the beginning of the design, the upgrade space for the order was fully considered,Therefore, all-round interface reservation has been carried out in the aspect of supporting peripheral equipment, which has laid a good foundation for the development of the RAU welding machine to the building block type automatic combination model in the future. The conductive electrode is made of Korean high-conductivity copper electrode material, which makes the heat transfer rate of welding current more efficient.

4mm Overlap Straight Seam Welding Machine Longitudinal Seam Welder 100KVA
